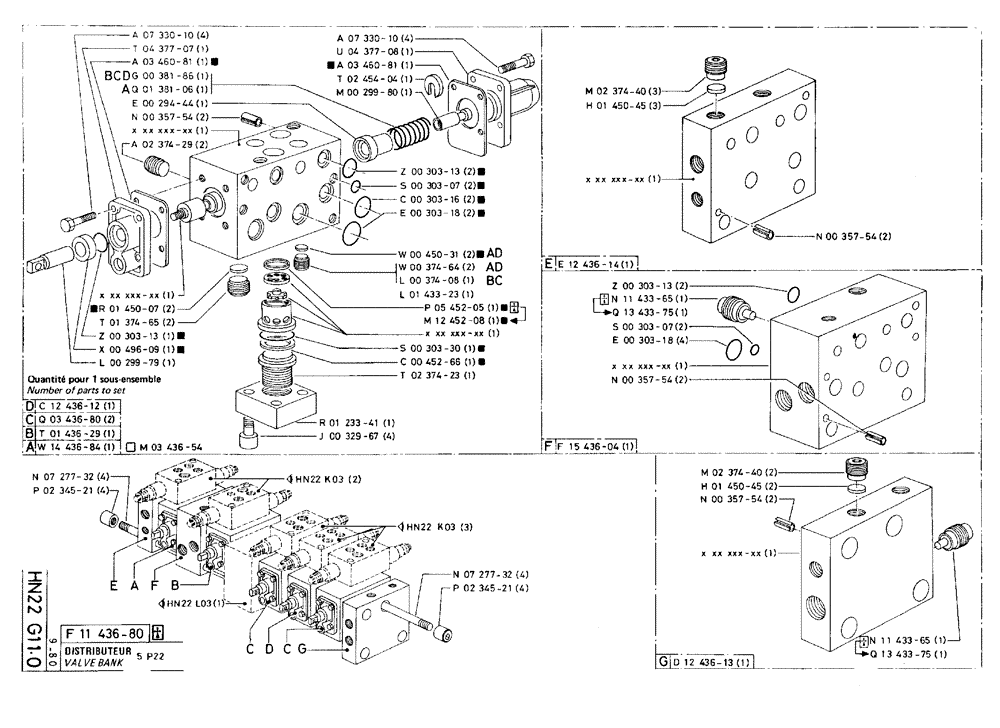

Запчасти Case 75C (HN22 G11.0) - VALVE BANK - 5 P22 (07) - HYDRAULIC SYSTEM
№
Артикул
Название
Примечание
Количество
f11436-80
F1143680
BLOCK ASSY.
1шт.
No Longer Sold
1шт.
m03436-54
P343654
SPARE PART SET
1шт.
Repair Kit
1шт.
c12436-12
C1243612
DISTRIBUTOR
1шт.
q03436-80
P343680
DISTRIBUTOR
2шт.
t01436-29
P143629
DISTRIBUTOR
1шт.
w14436-84
P1443684
DISTRIBUTOR
1шт.
a07330-10
P733010
SPARE PART
4шт.
t04377-07
P437707
SPARE PART
1шт.
a03460-81
P346081
GASKET
1шт.
Included in Repair Kit
1шт.
g00361-86
P38186
COMPRESSION SPRING
BCD
1шт.
q01381-06
P138106
SPARE PART A
1шт.
e00294-44
P29444
BUSHING
1шт.
n00357-54
P35754
SPLIT PIN/SAFETY PIN
10 x 15
2шт.
a02374-29
P237429
PLUG
2шт.
r01450-07
P145007
HOLE PLUG BUTTON
2шт.
Included in Repair Kit
1шт.
t01374-65
P137465
PLUG
2шт.
z00303-13
P30313
SEAL
2,7 x 16,9
1шт.
Included in Repair Kit
1шт.
x00496-09
P49609
WIPER SEAL
1шт.
Included in Repair Kit
1шт.
l00299-79
P29979
SPARE PART
1шт.
a07330-10
P733010
SPARE PART
4шт.
u04377-08
P437708
SPARE PART
1шт.
a03460-81
P346081
GASKET
1шт.
Included in Repair Kit
1шт.
t02454-04
P245404
SPARE PART
1шт.
m00299-80
P29980
SPARE PART
1шт.
z00303-13
P30313
SEAL
2,7 x 16,9
2шт.
Included in Repair Kit
1шт.
s00303-07
P30307
O-RING
SEAL, 1,9 x 8,9
2шт.
Included in Repair Kit
1шт.
c00303-16
P30316
SEAL
2шт.
Included in Repair Kit
1шт.
e00303-18
P30318
O-RING
SEAL, 3,6 x 23
2шт.
Included in Repair Kit
1шт.
w00450-31
P45031
HOLE PLUG BUTTON
AD
2шт.
Included in Repair Kit
1шт.
w00374-64
P37464
SPARE PART AD
2шт.
l00374-08
P37408
SPARE PART BC
1шт.
l01433-23
P143323
VALVE POPPET
1шт.
p05452-05
P545205
GASKET
1шт.
No Longer Sold
1шт.
Included in Repair Kit
1шт.
m12452-08
P1245208
GASKET
1шт.
Replaces P05452-05
1шт.
Included in Repair Kit
1шт.
s00303-30
P30330
O-RING
1шт.
Included in Repair Kit
1шт.
c00452-66
P45266
WASHER
1шт.
Included in Repair Kit
1шт.
t02374-23
P237423
SPARE PART
1шт.
r01233-41
P123341
SHIN
1шт.
j00329-67
P32967
SCREW
/BOLT, M16 x 30
4шт.
e12436-14
P1243614
LARGE PLATE
PLATE, LARGE
1шт.
m02374-40
P237440
SPARE PART M25 x 1.5
3шт.
h01450-45
P145045
HOLE PLUG BUTTON
3шт.
n00357-54
P35754
SPLIT PIN/SAFETY PIN
10 x 15
2шт.
f15436-04
P1543604
LARGE PLATE
PLATE, LARGE
1шт.
z00303-13
P30313
SEAL
2,7 x 16,9
2шт.
n11433-65
P1143365
VALVE POPPET
1шт.
No Longer Sold
1шт.
q13433-75
P1343375
VALVE POPPET
VALVE
1шт.
Replaces N11433-65
1шт.
s00303-07
P30307
O-RING
SEAL, 1,9 x 8,9
2шт.
e00303-18
P30318
O-RING
SEAL, 3,6 x 23
4шт.
n00357-54
P35754
SPLIT PIN/SAFETY PIN
10 x 15
2шт.
n07277-32
P727732
THREADED ROD
4шт.
p02345-21
P234521
NUT
4шт.
n07277-32
P727732
THREADED ROD
4шт.
p02345-21
P234521
NUT
4шт.
d12436-13
P1243613
LARGE PLATE
PLATE, LARGE
1шт.
m02374-40
P237440
SPARE PART M25 x 1.5
2шт.
h01450-45
P145045
HOLE PLUG BUTTON
2шт.
n00357-54
P35754
SPLIT PIN/SAFETY PIN
10 x 15
2шт.
n11433-65
P1143365
VALVE POPPET
1шт.
No Longer Sold
1шт.
q13433-75
P1343375
VALVE POPPET
1шт.
Replaces N11433-65
1шт.
Выбрано товаров: 82
