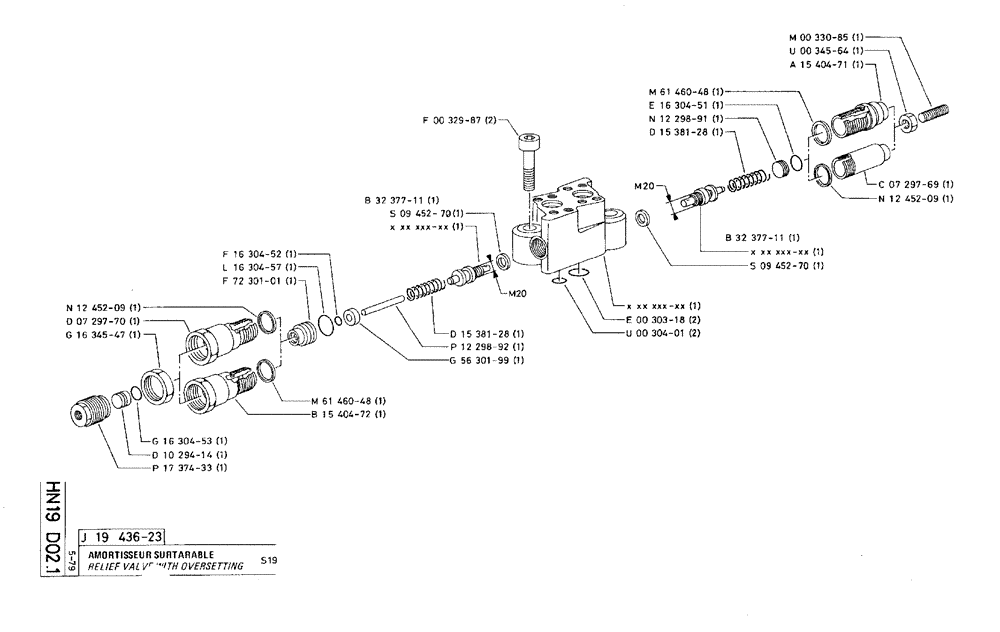

Запчасти Case 75C (HN19 D02.1) - RELIEF VALVE WITH OVERSETTING - S19 (07) - HYDRAULIC SYSTEM

j19436-23

P1943623

SHOCK ABSORBER

1шт.

n12452-09

P1245209

COPPER SEAL

25 x 30 x 2

1шт.

d07297-70

P729770

CAP

COVER

1шт.

g16345-47

P1634547

LOCK NUT

1шт.

g16304-53

P1630453

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

1шт.

d10294-14

P1029414

PISTON

1шт.

p17374-33

P1737433

PLUG

1шт.

f16304-52

P1630452

HYDRAULIC SWIVEL

1шт.

l16304-57

P1630457

HYDRAULIC SWIVEL

1шт.

f72301-01

P7230101

GUIDE

1шт.

m61460-48

P6146048

GASKET

SEAL

1шт.

b15404-72

P1540472

CAP

COVER

1шт.

b32377-11

P3237711

VALVE POPPET

1шт.

s09452-70

P945270

WASHER, SEALING

SEAL WASHER 20,2 x 25 x 1,5, M20

1шт.

d15381-28

P1538128

SPRING

1шт.

p12298-92

P1229892

TAPPET

PUSHER

1шт.

g56301-99

P5630199

STOP

1шт.

f00329-87

P32987

SCREW

/BOLT, M16 x 55

2шт.

m61460-48

P6146048

GASKET

SEAL

1шт.

e16304-51

P1630451

O-RING

1шт.

n12298-91

P1229891

TAPPET

PUSHER

1шт.

d15381-28

P1538128

SPRING

1шт.

e00303-18

P30318

O-RING

SEAL, 3,6 x 23

2шт.

u00304-01

P30401

O-RING,2.5mm Thk x 18.5mm ID

2шт.

b32377-11

P3237711

VALVE POPPET

1шт.

s09452-70

P945270

WASHER, SEALING

SEAL WASHER 20,2 x 25 x 1,5

1шт.

m00330-85

P33085

SCREW

/BOLT, M16 x 40

1шт.

u00345-64

P34564

NUT

1шт.

a15404-71

P1540471

CAP

COVER

1шт.

c07297-69

P729769

CAP

COVER

1шт.

n12452-09

P1245209

COPPER SEAL

25 x 30 x 2

1шт.
