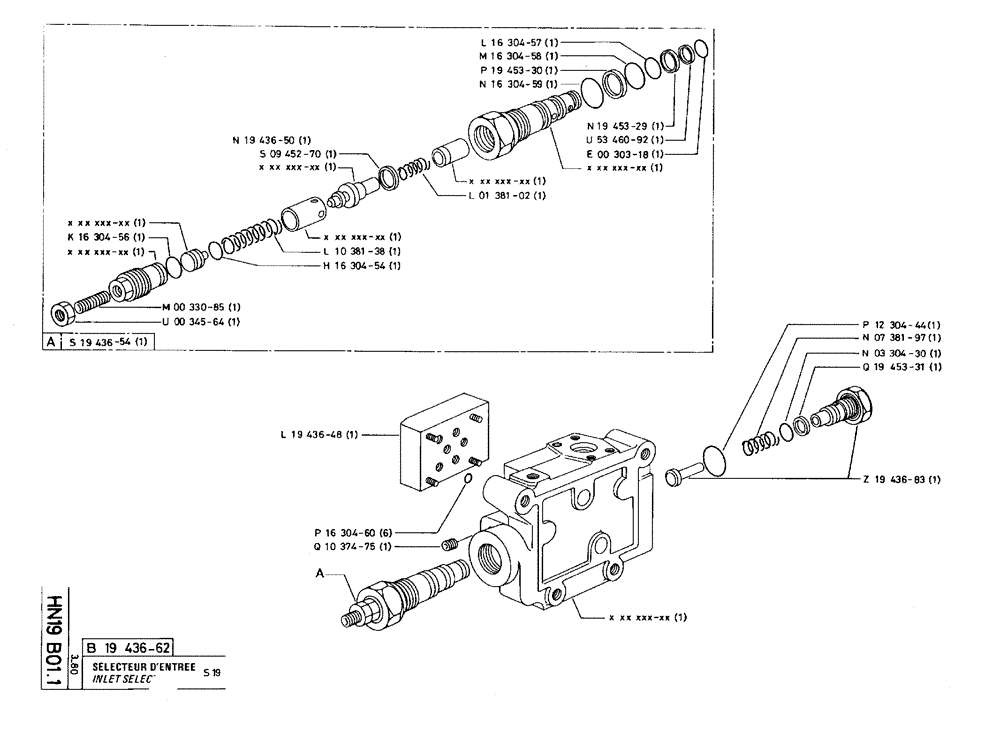

Запчасти Case 75C (HN19 B01.1) - INLET SELECTOR - S19 (07) - HYDRAULIC SYSTEM

b19436-62

P1943624

SHOCK ABSORBER

1шт.

s19436-54

P1943654

CARTRIDGE

1шт.

k16304-56

P1630456

O-RING

1шт.

n19436-50

P1943650

VALVE POPPET

1шт.

s09452-70

P945270

WASHER, SEALING

SEAL WASHER 20,2 x 25 x 1,5

1шт.

m00330-85

P33085

SCREW

/BOLT, M16 x 40

1шт.

u00345-64

P34564

NUT

1шт.

l10381-38

P1038138

COMPRESSION SPRING

1шт.

h16304-54

P1630454

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

1шт.

l16304-57

P1630457

HYDRAULIC SWIVEL

1шт.

m16304-56

P1630458

HYDRAULIC SWIVEL

1шт.

p19453-30

P1945330

BACK-UP RING

1шт.

n16304-59

P1630459

GASKET

1шт.

l01381-02

P138102

COMPRESSION SPRING

1шт.

n19453-29

P1945329

BACK-UP RING

1шт.

u53460-92

P5346092

BACK-UP RING

1шт.

e00303-18

P30318

O-RING

SEAL, 3,6 x 23

1шт.

l19436-48

P1943648

VALVE

1шт.

p16304-60

P1630460

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

6шт.

q10374-75

P1037475

PLUG

1шт.

p12304-44

P1230444

O-RING

2,62 x 32,99-80

1шт.

n0738197

P738197

COMPRESSION SPRING

1шт.

n03304-30

P330430

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

SEAL, 2,62 x 21,89-80

1шт.

q19453-31

P1945331

OIL SEAL

1шт.

z19436-83

P1943683

VALVE

1шт.
