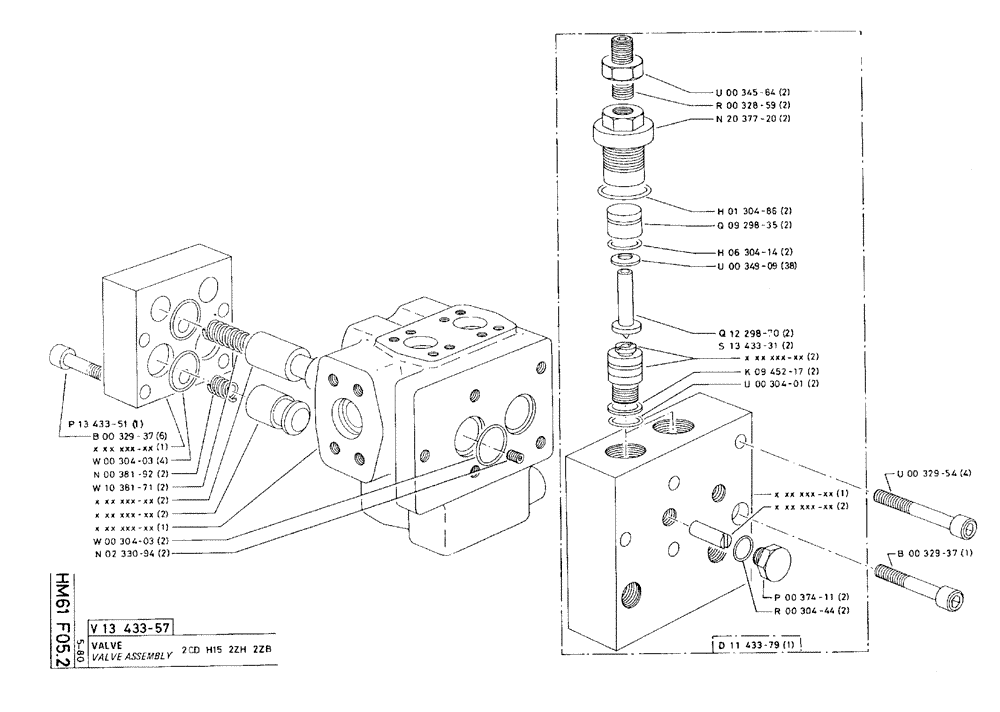

Запчасти Case 75C (HM61 F05.2) - VALVE ASSEMBLY - 2 CD H15 2ZH 2ZB (07) - HYDRAULIC SYSTEM

v13433-57

P1343357

BLOCK

1шт.

p13433-51

P1343351

SHIN

BRACKET

1шт.

b00329-37

P32937

SCREW

6шт.

w00304-03

P30403

O-RING,0.103" Thk x 1.049" ID, -121, Cl 6, 90 Duro

SEAL, 2,62 x 26,64-80

4шт.

n00381-92

P38192

COMPRESSION SPRING

4шт.

w10381-71

P1038171

COMPRESSION SPRING

2шт.

w00304-03

P30403

O-RING,0.103" Thk x 1.049" ID, -121, Cl 6, 90 Duro

SEAL, 2,62 x 26,64-80

2шт.

n02330-94

P233094

SCREW

/BOLT, M6 x 6

2шт.

d11433-79

P1143379

SHIN

1шт.

u00345-64

P34564

NUT

2шт.

r00328-59

P32859

SCREW

/BOLT, M16 x 50

2шт.

n20377-20

P2037720

CAP

COVER

2шт.

h01304-86

P130486

O-RING

SEAL, 2,62 x 34,59-80

2шт.

q09298-35

P929835

TAPPET

PUSHER

2шт.

h06304-14

P630414

O-RING

2,62 x 18,72

2шт.

u00349-09

P34909

RUBBER WASHER

spring, 22,5 x 11,2

38шт.

q12298-70

P1229870

GUIDE

GUIDE

2шт.

s13433-31

P1343331

VALVE POPPET

2шт.

k09452-17

P945217

BACK-UP RING

JOINT

2шт.

u00304-01

P30401

O-RING,2.5mm Thk x 18.5mm ID

2шт.

p00374-11

P37411

PLUG

2шт.

r00304-44

P30444

O-RING,2.5mm Thk x 15mm ID, 80 Duro

2,5 x 15

2шт.

u00329-54

P32954

SCREW

/BOLT, M10 x 65

4шт.

b00329-37

P32937

SCREW

/BOLT, M10 x 50

1шт.
