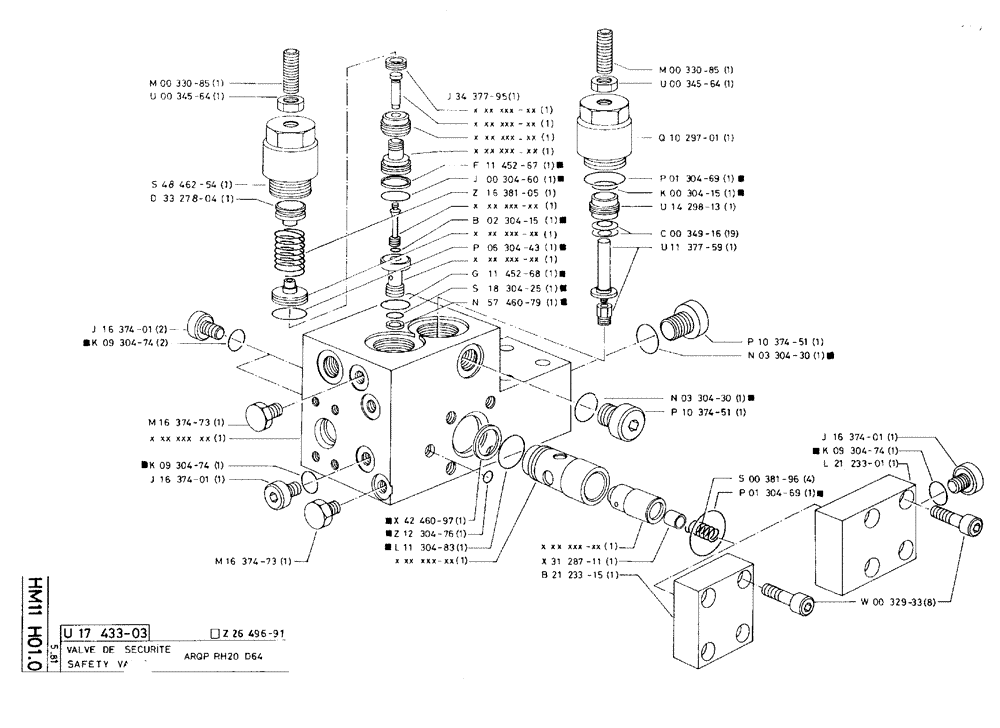

Запчасти Case 75C (HM11 H01.0) - SAFETY VALVE - ARQP RH20 D64 (07) - HYDRAULIC SYSTEM

u17433-03

P1743303

SPARE PART

1шт.

z26496-91

P2649691

SEAL PACKAGE

1шт.

Repair Kit

1шт.

m00330-85

P33085

SCREW

/BOLT, M16 x 40

1шт.

u00345-64

P34564

NUT

1шт.

s48462-54

P4846254

CAP

COVER

1шт.

d33278-04

P3327804

TAPPET

PUSHER

1шт.

j16374-01

P1637401

PLUG

2шт.

k09304-74

P930474

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

SEAL, 2,62 x 15,54-80

2шт.

Included in Repair Kit

1шт.

m16374-73

P1637473

PLUG

1шт.

k09304-74

P930474

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

SEAL, 2,62 x 15,54-80

1шт.

Included in Repair Kit

1шт.

j16374-01

P1637401

PLUG

1шт.

m16374-73

P1637473

PLUG

1шт.

j34377-95

P3437795

CARTRIDGE

1шт.

f11452-67

P1145267

BACK-UP RING

JOINT, 2,18 x 25,86-90

1шт.

Included in Repair Kit

1шт.

j00304-60

P30460

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

SEAL, 2,62 x 25,07-80

1шт.

Included in Repair Kit

1шт.

z16381-05

P1638105

SPARE PART

1шт.

b02304-15

P230415

O-RING

SEAL, 1,78 x 5,28-80

1шт.

Included in Repair Kit

1шт.

p06304-43

P630443

O-RING

SEAL, 3,53 x 29,74-80

1шт.

Included in Repair Kit

1шт.

g11452-68

P1145268

SEAL

washer, 19,9 x 24,5 x 1,5

1шт.

Included in Repair Kit

1шт.

s18304-25

P1830425

O-RING

SEAL, 2,62 x 13,11-80

1шт.

Included in Repair Kit

1шт.

n57460-79

P5746079

BACK-UP RING

JOINT, 18 x 1,1

1шт.

Included in Repair Kit

1шт.

x42460-97

P4246097

BACK-UP RING

JOINT, 3 x 25,81-90

1шт.

Included in Repair Kit

1шт.

z12304-76

P1230476

O-RING

SEAL, 2,62 x 7,59-80

1шт.

Included in Repair Kit

1шт.

l11304-83

P1130483

O-RING

SEAL, 3,53 x 24,99-80

1шт.

Included in Repair Kit

1шт.

q10297-01

P1029701

CAP

COVER

1шт.

p01304-69

P130469

O-RING,40.95MM ID x 2.62MM Width

SEAL, 2,62 x 40,94-80

1шт.

Included in Repair Kit

1шт.

k00304-15

P30415

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

SEAL, 2,62 x 20,29-80

1шт.

Included in Repair Kit

1шт.

u14298-13

P1429813

TAPPET

PUSHER

1шт.

c00349-16

P34916

RUBBER WASHER

spring, 25 x 12,2 x 1,5

19шт.

u11377-59

P1137759

SPARE PART ASSY

1шт.

p10374-51

P1037451

PLUG

1шт.

n03304-30

P330430

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

SEAL, 2,62 x 21,89-80

1шт.

Included in Repair Kit

1шт.

x31287-11

P3128711

BLOCK

SHIM

1шт.

b21233-15

P2123315

LARGE PLATE

PLATE, LARGE

1шт.

j16374-01

P1637401

PLUG

1шт.

k09304-74

P930474

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

SEAL, 2,62 x 15,54-80

1шт.

Included in Repair Kit

1шт.

l21233-01

P2123301

LARGE PLATE

PLATE, LARGE

1шт.

s00381-96

P38196

COMPRESSION SPRING

4шт.

p01304-69

P130469

O-RING,40.95MM ID x 2.62MM Width

SEAL, 2,62 x 40,94-80

1шт.

Included in Repair Kit

1шт.

w00329-33

P32933

SCREW

/BOLT, M10 x 30

8шт.
