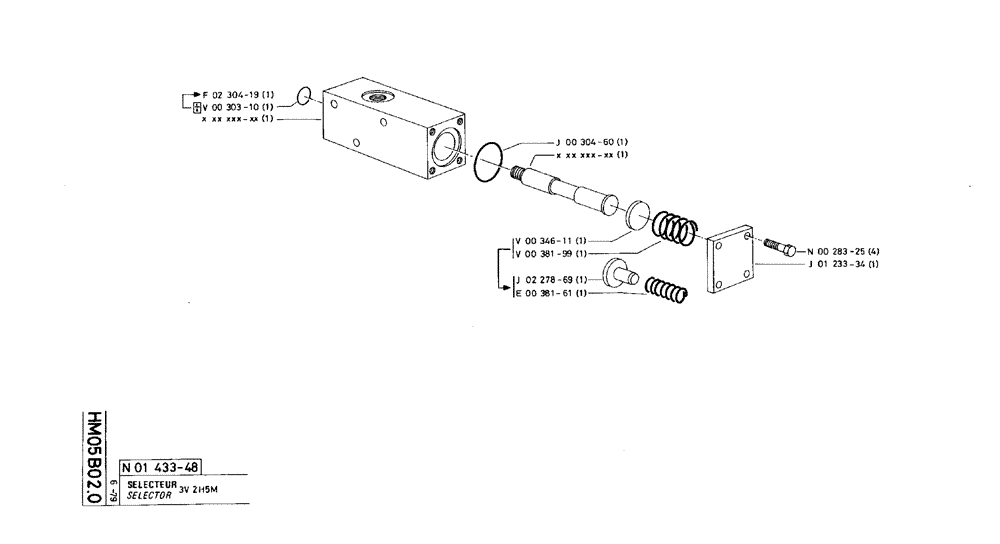

Запчасти Case 75C (HM05 B02.0) - SELECTOR - 3V 2H5M (07) - HYDRAULIC SYSTEM

n01433-48

N143348

SELECTOR

1шт.

f02304-19

P230419

O-RING

SEAL, 2,62 x 12,37-80

1шт.

Replaces V00303-10

1шт.

v00303-10

P30310

SEAL

2,7 x 12,1

1шт.

No Longer Sold

1шт.

j00304-60

P30460

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

SEAL, 2,62 x 25,07-80

1шт.

v00346-11

P34611

WASHER

1шт.

v00381-99

REFERENCE

SPARE PART

1шт.

j02278-69

J227869

GUIDE

1шт.

Replaces V00346-11 and V00381-99

1шт.

e00381-61

P38161

SPARE PART

1шт.

Replaces V00346-11 and V00381-99

1шт.

n00283-25

P28325

SCREW

4шт.

j01233-34

J123334

LARGE PLATE

PLATE, LARGE

1шт.
