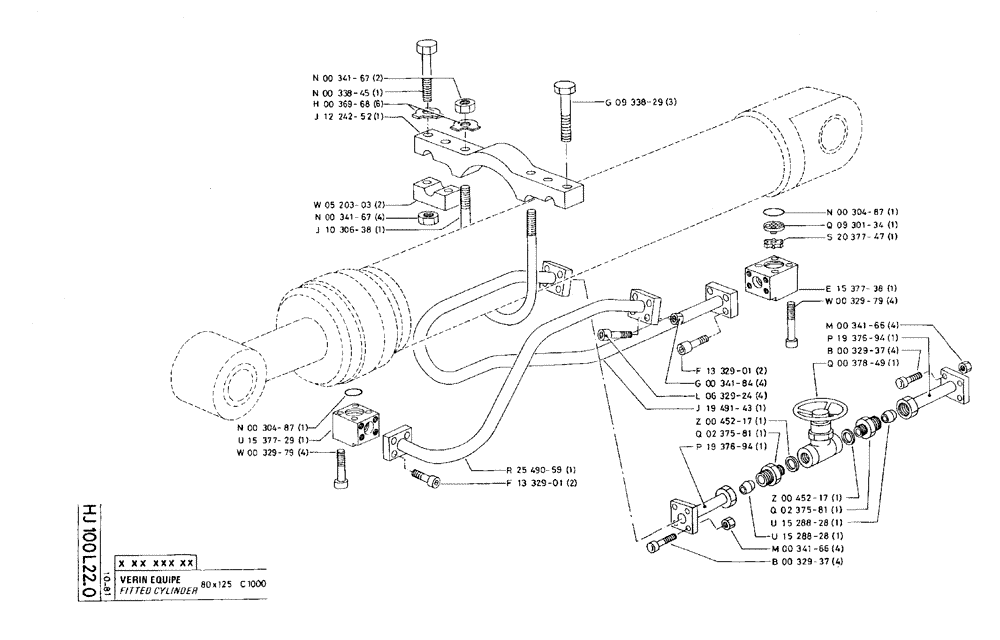

Запчасти Case 75C (HJ100L22.0) - FITTED CYLINDER - 80 X 125 C1000 (07) - HYDRAULIC SYSTEM

n00341-67

337475

NUT,M12, Cl 10

2шт.

n00338-45

P33845

SCREW

1шт.

h00369-68

P36968

BRAKE

LOCKING

6шт.

j12242-52

P1224252

SHIN

1шт.

w05203-03

P520303

SHIN

BRACKET

2шт.

n00341-67

337475

NUT,M12, Cl 10

4шт.

j10306-38

P1030638

STIRRUP

1шт.

n00304-87

P30487

O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro

SEAL, 2,62 x 37,77-80

1шт.

u15377-29

P1537729

SHIN

1шт.

w00329-79

P32979

SCREW

/BOLT, M14 x 80

4шт.

r25490-59

P2549059

SPARE PART

1шт.

f13329-01

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

g09338-29

P933829

SCREW

3шт.

n00304-87

P30487

O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro

SEAL, 2,62 x 37,77-80

1шт.

q09301-34

P930134

STOP

1шт.

s20377-47

S2037747

VALVE POPPET

1шт.

e15377-38

P1537738

BODY

1шт.

w00329-79

P32979

SCREW

/BOLT, M14 x 80

4шт.

m00341-66

100016

NUT,M10 x 1.5, Cl 8

4шт.

p19376-94

P1937694

PIPE,26.75 mm DIA x 90 mm L

19 x 27

1шт.

b00329-37

P32937

SCREW

/BOLT, M10 x 50

4шт.

q00378-49

P37849

SPARE PART

1шт.

g00341-84

86500689

NUT,M10 x 1.5, Cl 10

4шт.

l06329-24

L632924

SCREW

4шт.

j19491-43

P1949143

PIPE

1шт.

z00452-17

P45217

WASHER, SEALING

SEAL WASHER 21,2 x 25,9 x 1,5

1шт.

q02375-81

P237581

SPARE PART

1шт.

p19376-94

P1937694

PIPE,26.75 mm DIA x 90 mm L

19 x 27

1шт.

u15288-28

P1528828

JUNCTION

1шт.
