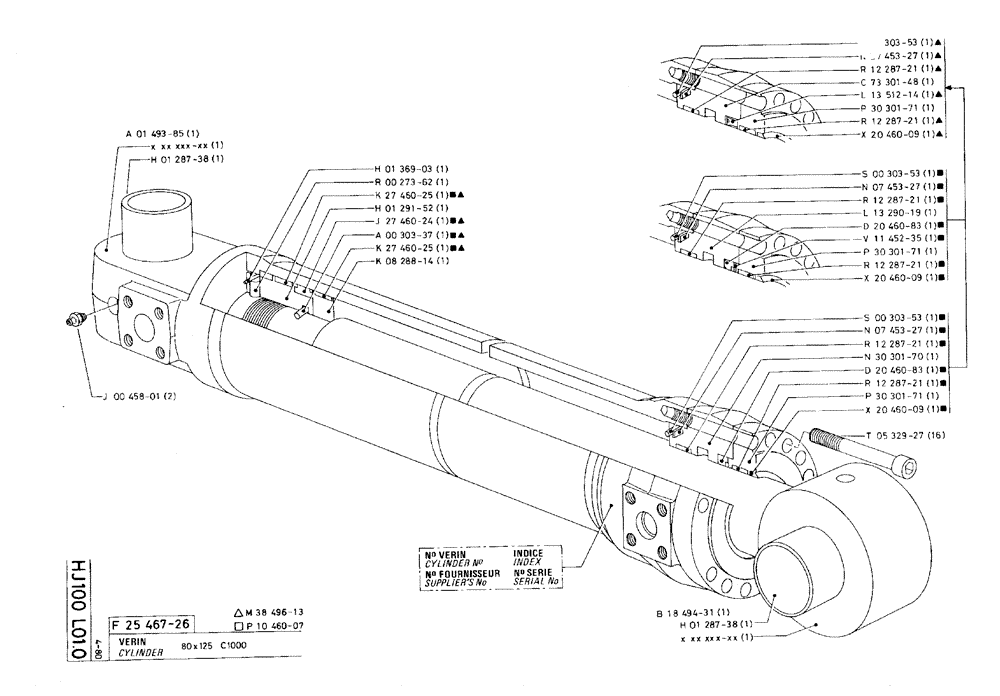

Запчасти Case 75C (HJ100 L01.0) - CYLINDER - 80 X 125 C1000 (07) - HYDRAULIC SYSTEM

f25467-26

P2546726

CYLINDER ASSY.

1шт.

m38496-13

P3849613

KIT

1шт.

Repair Kit

1шт.

p10460-07

P1046007

SEAL PACKAGE

1шт.

Repair Kit

1шт.

a01493-85

A149385

JACK BODY

1шт.

h01287-38

P128738

BUSHING

60 x 75 x 90

1шт.

j00458-01

J45801

LUBE NIPPLE,M8 x 1.25

2шт.

h01369-03

P136903

SPECIAL RING

1шт.

r00273-62

P27362

PIN

1шт.

k27460-25

P2746025

SEGMENT

1шт.

Included in Repair Kits

1шт.

h01291-52

P129152

NUT

1шт.

j27460-24

P2746024

SEAL

1шт.

Included in Repair Kits

1шт.

a00303-37

P30337

O-RING

SEAL, 5,33 x 66,04-80

1шт.

Included in Repair Kits

1шт.

k27460-25

P2746025

SEGMENT

1шт.

Included in Repair Kits

1шт.

k08288-14

P828814

WASHER

1шт.

s00303-53

P30353

O-RING

1шт.

Included in M38496-13 Repair Kit

1шт.

n07453-27

P745327

BACK-UP RING

1шт.

Included in M38496-13 Repair Kit

1шт.

r12287-21

P1228721

SEGMENT

1шт.

Included in M38496-13 Repair Kit

1шт.

c73301-48

P7330148

CYLINDER END CAP

1шт.

l13512-14

P1351214

SEAL

1шт.

Included in M38496-13 Repair Kit

1шт.

p30301-71

P3030171

WASHER

1шт.

r12287-21

P1228721

SEGMENT

1шт.

Included in M38496-13 Repair Kit

1шт.

x20460-09

P2046009

WIPER SEAL

1шт.

Included in M38496-13 Repair Kit

1шт.

s00303-53

P30353

O-RING

1шт.

Included in P10460-07 Repair Kit

1шт.

n07453-27

P745327

BACK-UP RING

1шт.

Included in P10460-07 Repair Kit

1шт.

r12287-21

P1228721

SEGMENT

1шт.

Included in P10460-07 Repair Kit

1шт.

l13290-19

P1329019

CYLINDER END CAP

1шт.

d20460-83

P2046083

GASKET

1шт.

Included in P10460-07 Repair Kit

1шт.

v11452-35

P1145235

BACK-UP RING

1шт.

Included in P10460-07 Repair Kit

1шт.

r12287-21

P1228721

SEGMENT

1шт.

Included in P10460-07 Repair Kit

1шт.

x20460-09

P2046009

WIPER SEAL

1шт.

Included in P10460-07 Repair Kit

1шт.

n30301-70

P3030170

CYLINDER END CAP

1шт.

b18494-31

P1849431

PISTON ROD

1шт.

h01287-38

P128738

BUSHING

60 x 75 x 90

1шт.
