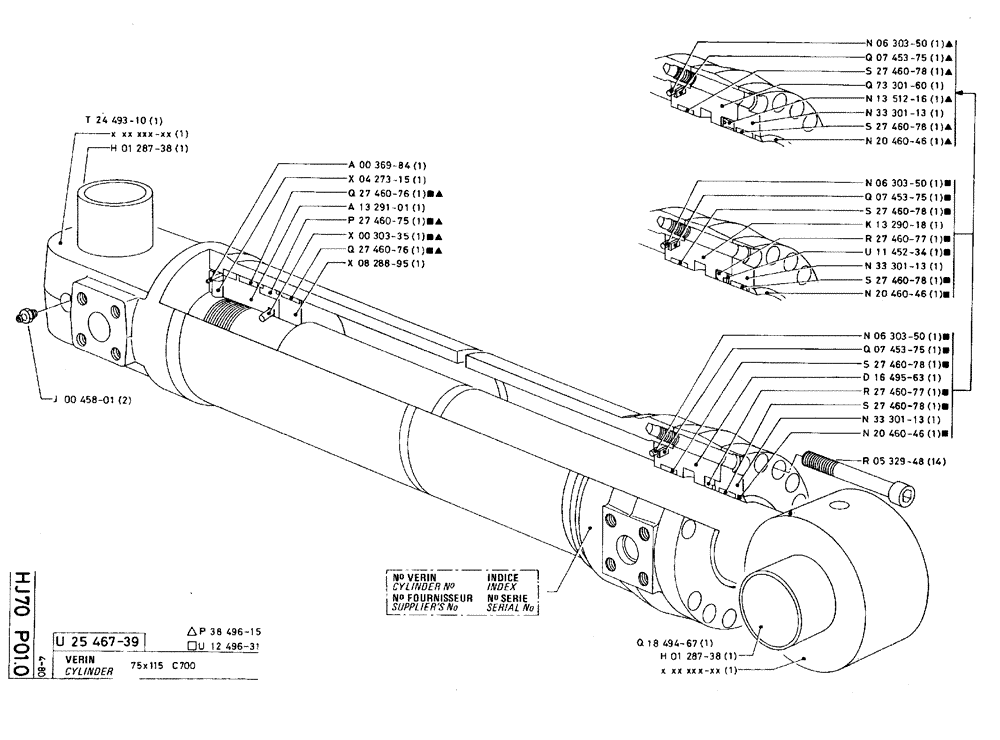

Запчасти Case 75C (HJ070 P01.0) - CYLINDER - 75 X 115 C700 (07) - HYDRAULIC SYSTEM

u25467-39

P2546739

CYLINDER ASSY.

1шт.

p38496-15

P3849615

KIT

1шт.

Repair Kit

1шт.

u12496-31

P1249631

SEAL PACKAGE

1шт.

Repair Kit

1шт.

t24493-10

P2449310

JACK BODY

1шт.

h01287-38

P128738

BUSHING

60 x 75 x 90

1шт.

j00458-01

J45801

LUBE NIPPLE,M8 x 1.25

2шт.

a00369-84

P36984

SPECIAL RING

1шт.

x04273-15

P427315

PIN

1шт.

q27460-76

P2746076

SEGMENT

1шт.

Included in Repair Kits

1шт.

a13291-01

P1329101

NUT

1шт.

p27460-75

P2746075

SEAL

1шт.

Included in Repair Kits

1шт.

x00303-35

P30335

O-RING

SEAL, 5,33 x 59,69-80

1шт.

Included in Repair Kits

1шт.

q27460-76

P2746076

SEGMENT

1шт.

Included in Repair Kits

1шт.

x08288-95

P828895

WASHER

1шт.

q18494-67

P1849467

PISTON ROD

1шт.

h01287-38

P128738

BUSHING

60 x 75 x 90

1шт.

n06303-50

P630350

O-RING

SEAL, 5,33 x 107,32-80

1шт.

Included in P38496-15 Repair Kit

1шт.

q07453-75

P745375

BACK-UP RING

JOINT, 4,65 x 108,66-90

1шт.

Included in P38496-15 Repair Kit

1шт.

s27460-78

P2746078

SEGMENT

1шт.

Included in P38496-15 Repair Kit

1шт.

q73301-60

P7330160

CYLINDER END CAP

BEARING

1шт.

n13512-16

P1351216

SEAL

1шт.

Included in P38496-15 Repair Kit

1шт.

n33301-13

P3330113

SPARE PART

1шт.

s27460-78

P2746078

SEGMENT

1шт.

Included in P38496-15 Repair Kit

1шт.

n20460-46

P2046046

WIPER SEAL

75 x 85

1шт.

Included in P38496-15 Repair Kit

1шт.

n06303-50

P630350

O-RING

SEAL, 5,33 x 107,32-80

1шт.

Included in U12496-31 Repair Kit

1шт.

q07453-75

P745375

BACK-UP RING

JOINT, 4,65 x 108,66-90

1шт.

Included in U12496-31 Repair Kit

1шт.

s27460-78

P2746078

SEGMENT

1шт.

Included in U12496-31 Repair Kit

1шт.

k13290-18

P1329018

SPARE PART

1шт.

r27460-77

P2746077

SEAL

1шт.

Included in U12496-31 Repair Kit

1шт.

u11452-34

P1145234

BACK-UP RING

JOINT, 75 x 95 x 3

1шт.

Included in U12496-31 Repair Kit

1шт.

s27460-78

P2746078

SEGMENT

1шт.

Included in U12496-31 Repair Kit

1шт.

n20460-46

P2046046

WIPER SEAL

75 x 85

1шт.

Included in U12496-31 Repair Kit

1шт.

d16495-63

P1649563

CYLINDER END CAP

BEARING

1шт.

r05329-48

P532948

SCREW

/BOLT, M14 x 100

14шт.
