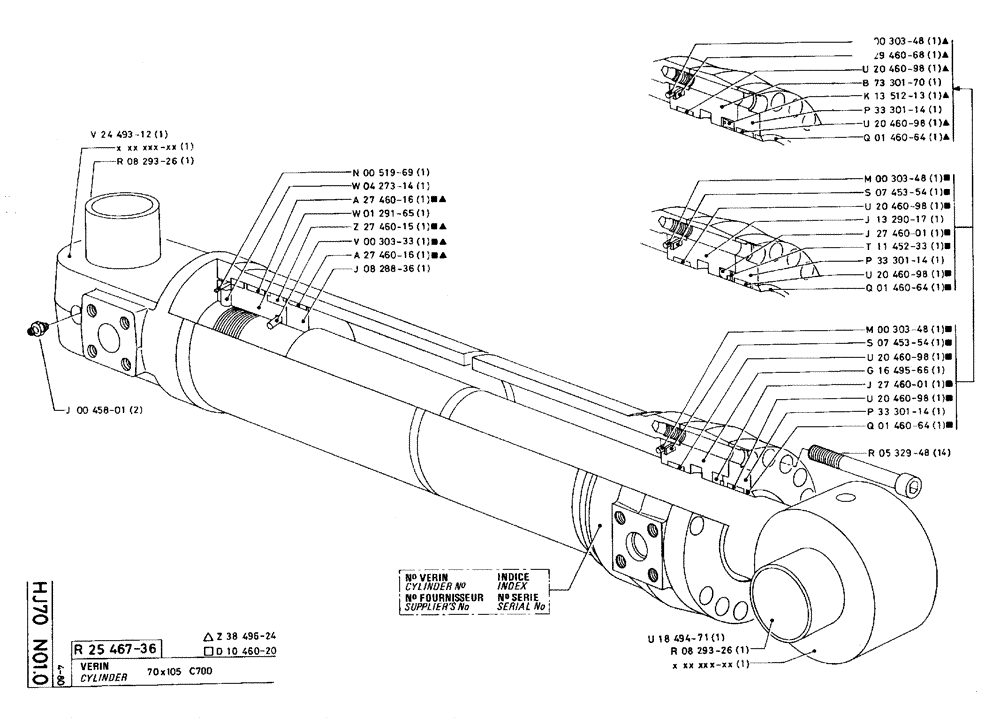

Запчасти Case 75C (HJ070 N01.0) - CYLINDER - 70 X 105 C700 (07) - HYDRAULIC SYSTEM

r25467-36

P2546736

CYLINDER ASSY.

1шт.

z38496-24

P3849624

SEAL PACKAGE

1шт.

Repair Kit

1шт.

d10460-20

P1046020

SEAL PACKAGE

1шт.

Repair Kit

1шт.

v24493-12

V2449312

JACK BODY

1шт.

r08293-26

P829326

BUSHING

55 x 75 x 90

1шт.

j00458-01

J45801

LUBE NIPPLE,M8 x 1.25

2шт.

n00519-69

P51969

SPECIAL MAT. SEAL

1шт.

w04273-14

P427314

LARGE PIN

SPARE PART

1шт.

a27460-16

P2746016

SEGMENT

1шт.

Included in Repair Kits

1шт.

w01291-65

P129165

NUT

1шт.

z27460-15

P2746015

SEAL

1шт.

Included in Repair Kits

1шт.

v00303-33

P30333

O-RING

1шт.

Included in Repair Kits

1шт.

a27460-16

P2746016

SEGMENT

1шт.

Included in Repair Kits

1шт.

j08288-36

P828836

WASHER

1шт.

m00303-48

P30348

O-RING

SEAL, 5,33 x 100,97-80

1шт.

Included in Z38496-24 Repair Kit

1шт.

x29460-68

P2946068

BACK-UP RING

1шт.

Included in Z38496-24 Repair Kit

1шт.

u20460-98

P2046098

SEGMENT

1шт.

Included in Z38496-24 Repair Kit

1шт.

b73301-70

P7330170

CYLINDER END CAP

1шт.

k13512-13

P1351213

SEAL

1шт.

Included in Z38496-24 Repair Kit

1шт.

p33301-14

P3330114

WASHER

1шт.

u20460-98

P2046098

SEGMENT

1шт.

Included in Z38496-24 Repair Kit

1шт.

q01460-64

P146064

WIPER SEAL

1шт.

Included in Z38496-24 Repair Kit

1шт.

m00303-48

P30348

O-RING

SEAL, 5,33 x 100,97-80

1шт.

Included in D10460-20 Repair Kit

1шт.

s07453-54

P745354

BUSHING, LARGE

BUSHING,LARGE

1шт.

Included in D10460-20 Repair Kit

1шт.

u20460-98

P2046098

SEGMENT

1шт.

Included in D10460-20 Repair Kit

1шт.

j13290-17

P1329017

SPARE PART

1шт.

j27460-01

P2746001

GASKET

1шт.

Included in D10460-20 Repair Kit

1шт.

t11452-33

P1145233

BACK-UP RING

1шт.

Included in D10460-20 Repair Kit

1шт.

u20460-98

P2046098

SEGMENT

1шт.

Included in D10460-20 Repair Kit

1шт.

q01460-64

P146064

WIPER SEAL

1шт.

Included in D10460-20 Repair Kit

1шт.

g16495-66

P1649566

CYLINDER END CAP

1шт.

r05329-48

P532948

SCREW

/BOLT, M14 x 100

14шт.

u18494-71

U1849471

PISTON ROD

1шт.

r08293-26

P829326

BUSHING

55 x 75 x 90

1шт.
