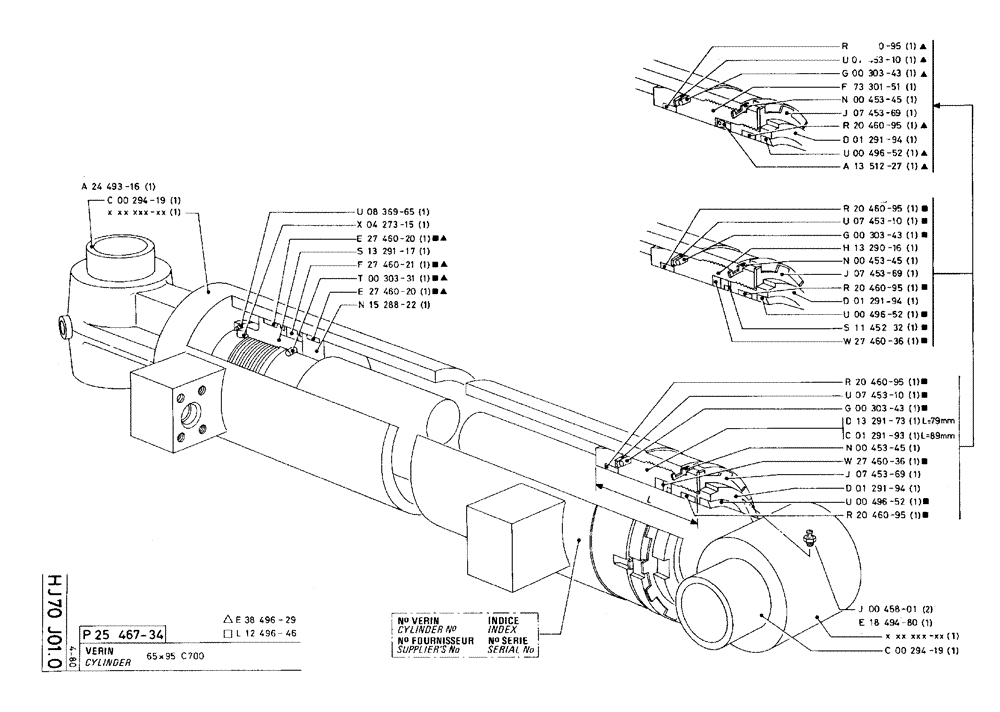

Запчасти Case 75C (HJ070 J01.0) - CYLINDER - 65 X 95 C700 (07) - HYDRAULIC SYSTEM

p25467-34

P2546734

CYLINDER ASSY.

1шт.

e38496-29

P3849629

SEAL PACKAGE

1шт.

Repair Kit

1шт.

l12496-46

P1249646

SEAL PACKAGE

1шт.

Repair Kit

1шт.

a24493-16

A2449316

JACK BODY

1шт.

c00294-19

P29419

BUSHING

40 x 50 x 80

1шт.

u08369-65

P836965

SPECIAL MAT. SEAL

1шт.

x04273-15

P427315

PIN

1шт.

e27460-20

P2746020

SEGMENT

1шт.

Included in Repair Kits

1шт.

s13291-17

P1329117

NUT

1шт.

f27460-21

P2746021

SEAL

1шт.

Included in Repair Kits

1шт.

t00303-31

P30331

O-RING

5,33 x 46,99-80

1шт.

Included in Repair Kits

1шт.

e27460-20

P2746020

SEGMENT

1шт.

Included in Repair Kits

1шт.

n15288-22

P1528822

WASHER

1шт.

r20460-95

P2046095

SEGMENT

1шт.

Included in E38496-29 Repair Kit

1шт.

u07453-10

P745310

BACK-UP RING

1шт.

Included in E38496-29 Repair Kit

1шт.

g00303-43

P30343

O-RING

5,33 x 85,09-80

1шт.

Included in E38496-29 Repair Kit

1шт.

f73301-51

P7330151

CYLINDER END CAP

1шт.

n00453-45

P45345

WASHER

100 x 115 x 1

1шт.

j07453-69

P745369

WASHER

1шт.

r20460-95

P2046095

SEGMENT

1шт.

Included in E38496-29 Repair Kit

1шт.

d01291-94

P129194

NUT

1шт.

u00496-52

P49652

WIPER SEAL

65 x 75

1шт.

Included in E38496-29 Repair Kit

1шт.

a13512-27

P1351227

SEAL

1шт.

Included in E38496-29 Repair Kit

1шт.

r20460-95

P2046095

SEGMENT

1шт.

Included in L12496-46 Repair Kit

1шт.

u07453-10

P745310

BACK-UP RING

1шт.

Included in L12496-46 Repair Kit

1шт.

g00303-43

P30343

O-RING

SEAL, 5,33 x 85,09-80

1шт.

Included in L12496-46 Repair Kit

1шт.

h13290-16

P1329016

SPARE PART

1шт.

n00453-45

P45345

WASHER

100 x 115 x 1

1шт.

u00496-52

P49652

WIPER SEAL

65 x 75

1шт.

Included in L12496-46 Repair Kit

1шт.

s11452-32

P1145232

BACK-UP RING

1шт.

Included in L12496-46 Repair Kit

1шт.

w27460-36

P2746036

SEAL

1шт.

Included in L12496-46 Repair Kit

1шт.

r20460-95

P2046095

SEGMENT

1шт.

Included in L12496-46 Repair Kit

1шт.

d13291-73

P1329173

CYLINDER END CAP

L=79 mm

1шт.

c01291-93

C129193

CYLINDER END CAP

L=89 mm

1шт.

j00458-01

J45801

LUBE NIPPLE,M8 x 1.25

2шт.

e18494-80

E1849480

PISTON ROD

1шт.

c00294-19

P29419

BUSHING

40 x 50 x 80

1шт.
