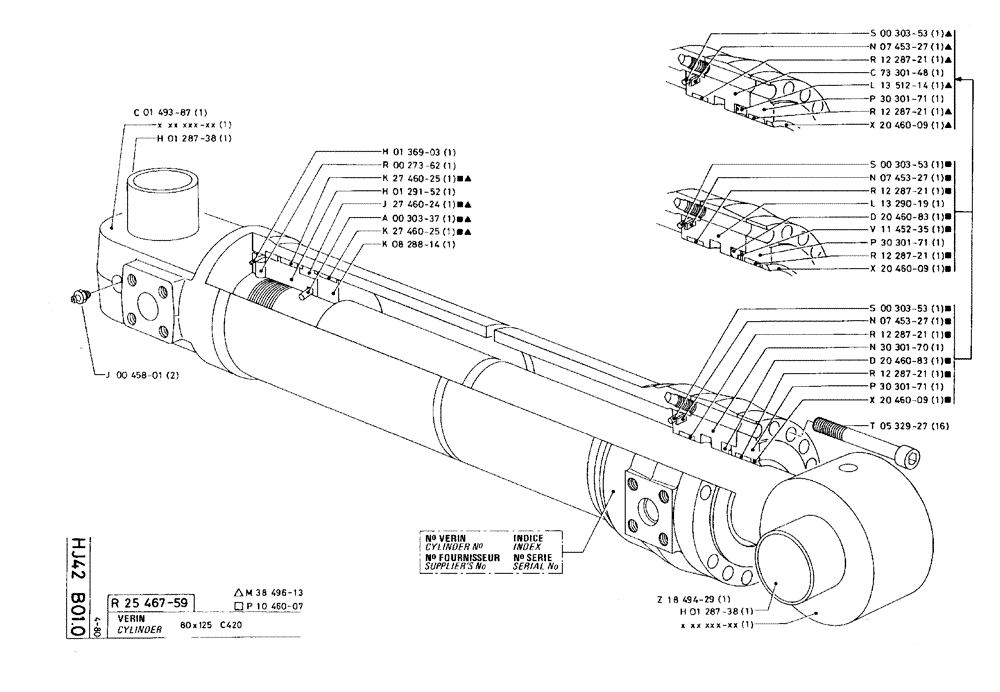

Запчасти Case 75C (HJ042 B01.0) - CYLINDER - 80 X 125 C420 (07) - HYDRAULIC SYSTEM
№
Артикул
Название
Примечание
Количество
r25467-59
P2546759
SPARE PART
1шт.
m38496-13
P3849613
KIT
1шт.
Repair Kit
1шт.
p10460-07
P1046007
SEAL PACKAGE
1шт.
Repair Kit
1шт.
c01493-87
P149387
SPARE PART
1шт.
h01287-38
P128738
BUSHING
60 x 75 x 90
1шт.
j00458-01
J45801
LUBE NIPPLE,M8 x 1.25
2шт.
h00369-03
P136903
SPECIAL RING
1шт.
r00273-62
P27362
PIN
1шт.
k27460-25
P2746025
SEGMENT
1шт.
Included in Repair Kits
1шт.
h01291-52
P129152
NUT
1шт.
j27460-24
P2746024
SEAL
1шт.
Included in Repair Kits
1шт.
a00303-37
P30337
O-RING
SEAL, 5,33 x 66,04-80
1шт.
Included in Repair Kits
1шт.
k27460-25
P2746025
SEGMENT
1шт.
Included in Repair Kits
1шт.
k08288-14
P828814
WASHER
1шт.
z18494-29
P1849429
PISTON ROD
1шт.
h01287-38
P128738
BUSHING
60 x 75 x 90
1шт.
s00303-53
P30353
O-RING
1шт.
Included in M38496-13 Repair Kit
1шт.
n07453-27
P745327
BACK-UP RING
1шт.
Included in M38496-13 Repair Kit
1шт.
r12287-21
P1228721
SEGMENT
1шт.
Included in M38496-13 Repair Kit
1шт.
c73301-48
P7330148
CYLINDER END CAP
1шт.
l13512-14
P1351214
SEAL
1шт.
Included in M38496-13 Repair Kit
1шт.
p30301-71
P3030171
WASHER
1шт.
r12287-21
P1228721
SEGMENT
1шт.
Included in M38496-13 Repair Kit
1шт.
x20460-09
P2046009
WIPER SEAL
1шт.
Included in M38496-13 Repair Kit
1шт.
s00303-53
P30353
O-RING
1шт.
Included in P10460-07 Repair Kit
1шт.
n07453-27
P745327
BACK-UP RING
1шт.
Included in P10460-07 Repair Kit
1шт.
r12287-21
P1228721
SEGMENT
1шт.
Included in P10460-07 Repair Kit
1шт.
l13290-19
P1329019
CYLINDER END CAP
1шт.
d20460-83
P2046083
GASKET
1шт.
Included in P10460-07 Repair Kit
1шт.
v11452-35
P1145235
BACK-UP RING
1шт.
Included in P10460-07 Repair Kit
1шт.
p30301-71
P3030171
WASHER
1шт.
r12287-21
P1228721
SEGMENT
1шт.
Included in P10460-07 Repair Kit
1шт.
x20460-09
P2046009
WIPER SEAL
1шт.
Included in P10460-07 Repair Kit
1шт.
n30301-70
P3030170
CYLINDER END CAP
1шт.
t05329-27
P532927
SCREW
/BOLT, M14 x 120
16шт.
Выбрано товаров: 54
