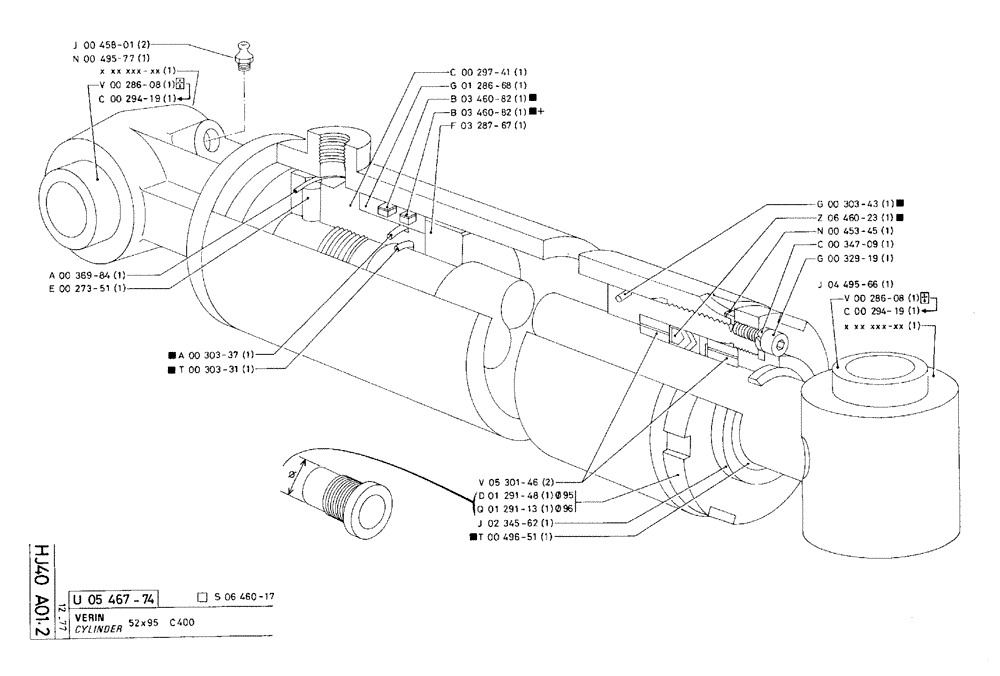

Запчасти Case 75C (HJ040 A01.2) - CYLINDER - 52 X 95 C400 (07) - HYDRAULIC SYSTEM

u05467-74

P546774

CYLINDER

1шт.

s06460-17

P646017

SEAL PACKAGE

1шт.

Repair Kit

1шт.

j00458-01

J45801

LUBE NIPPLE,M8 x 1.25

2шт.

n00495-77

P49577

JACK BODY

1шт.

v00286-08

P28608

BRONZE BUSHING

BRONZE BUSH 40 x 50 x 80

1шт.

No Longer Sold

1шт.

c00294-19

P29419

BUSHING

40 x 50 x 80

1шт.

Replaces V00294-19

1шт.

a00369-84

P36984

SPECIAL RING

1шт.

e00273-51

P27351

PIN

10 x 24

1шт.

a00303-37

P30337

O-RING

SEAL, 5,33 x 66,04-80

1шт.

Included in Repair Kit

1шт.

t00303-31

P30331

O-RING

SEAL, 5,33 x 46,99-80

1шт.

Included in Repair Kit

1шт.

c00297-41

P29741

NUT

1шт.

g01286-68

P128668

BRONZE BUSHING

BRONZE BUSH

1шт.

b03460-82

P346082

SPECIAL MAT. SEAL

1шт.

Included in Repair Kit

1шт.

b03460-82

P346082

SPECIAL MAT. SEAL

1шт.

Included in Repair Kit

1шт.

Part Added on New Model

1шт.

f03287-67

P328767

WASHER

1шт.

v05301-46

P530146

BEARING LINER

2шт.

d01291-48

P129148

CYLINDER END CAP

BEARING, Ø 95

1шт.

q01291-13

P129113

CYLINDER END CAP

BEARING, Ø 96

1шт.

j02345-62

P234562

NUT

1шт.

t00496-51

P49651

WIPER SEAL

52 x 62

1шт.

Included in Repair Kit

1шт.

g00303-43

P30343

O-RING

SEAL, 5,33 x 85,09-80

1шт.

Included in Repair Kit

1шт.

z06460-23

P646023

LINING

52 x 72

1шт.

Included in Repair Kit

1шт.

n00453-45

P45345

WASHER

100 x 115 x 1

1шт.

c00347-09

P34709

WASHER

1шт.

g00329-19

P32919

SCREW

/BOLT, M8 x 10

1шт.

j04495-66

P449566

PISTON ROD

1шт.

v00286-08

P28608

BRONZE BUSHING

BRONZE BUSH 40 x 50 x 80

1шт.

No Longer Sold

1шт.

c00294-19

P29419

BUSHING

40 x 50 x 80

1шт.

Replaces V00286-08

1шт.
