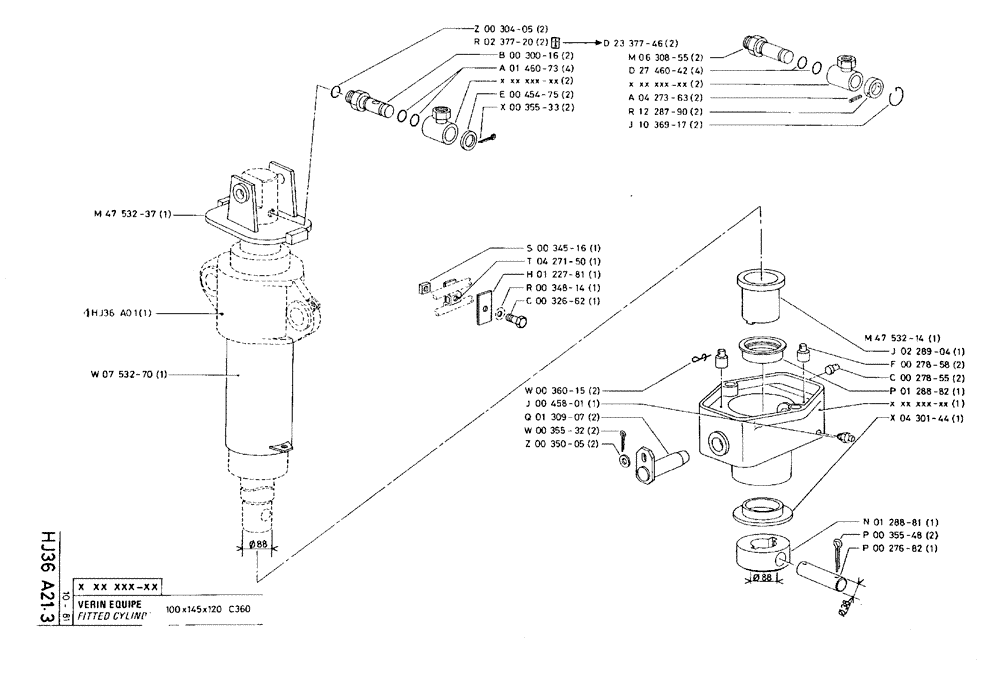

Запчасти Case 75C (HJ036 A21.3) - FITTED CYLINDER - 100 X 145 X 120 C360 (07) - HYDRAULIC SYSTEM

m47532-37

P4753237

PROTECTOR

1шт.

w07532-70

P753270

PROTECTOR

1шт.

z00304-05

P30405

O-RING

SEAL, 2,62 x 32,99-80

2шт.

r02377-20

P237720

FITTING

2шт.

No Longer Sold

1шт.

b00300-16

P30016

LARGE PIN

PIN, LARGE

2шт.

a01460-73

P146073

SPECIAL MAT. SEAL

4шт.

e00454-75

P45475

WASHER

2шт.

x00355-33

P35533

SPLIT PIN

4 x 70

2шт.

s00345-16

P34516

NUT

1шт.

t04271-50

P427150

SPARE PART

1шт.

h01227-81

P122781

PLATE

1шт.

r00348-14

P34814

WASHER

1шт.

c00326-62

P32662

SCREW

/BOLT, M10 x 30 x 30

1шт.

w00360-15

P36015

SPLIT PIN/SAFETY PIN

2шт.

j00458-01

J45801

LUBE NIPPLE,M8 x 1.25

1шт.

q01309-07

P130907

HEADED PIN

2шт.

w00355-32

P35532

SPLIT PIN

4 x 50

2шт.

z00350-05

P35005

WASHER

2шт.

d23377-46

P2337746

FITTING

2шт.

Replaces R02377-20

1шт.

m06308-55

P630855

LARGE PIN

PIN, LARGE

2шт.

d27460-42

P2746042

LINING

32 x 42

4шт.

a04273-63

P427363

PIN

2шт.

r12287-90

P1228790

COLLAR

2шт.

j10369-17

P1036917

SPECIAL MAT. SEAL

WASHER spring

2шт.

m47532-14

P4753214

PIVOT

1шт.

j02289-04

P228904

BUSHING

1шт.

f00278-58

P27858

SHAFT LOCK

2шт.

c00278-55

P27855

SHAFT LOCK

2шт.

p01288-82

P128882

BUSHING

1шт.

x04301-44

P430144

SPARE PART

1шт.

n01288-81

P128881

COLLAR

Ø 88

1шт.

p00355-48

P35548

SPLIT PIN/SAFETY PIN

6 x 70

2шт.

p00276-82

P27682

PIN

1шт.
