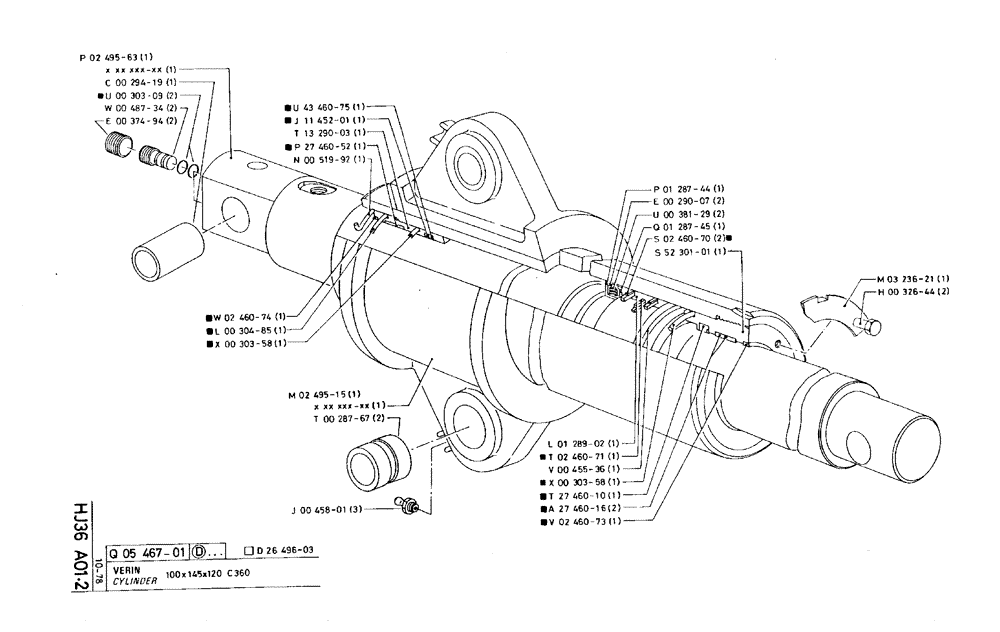

Запчасти Case 75C (HJ036 A01.2) - CYLINDER - 100 X 145 X 120 C360 (07) - HYDRAULIC SYSTEM

q05467-01

P546701

CYLINDER ASSY.

1шт.

d26496-03

P2649603

SEAL PACKAGE

1шт.

Repair Kit

1шт.

p02495-63

P249563

PISTON ROD

1шт.

c00294-19

P29419

BUSHING

40 x 50 x 80

1шт.

u00303-09

P30309

SEAL

2,7 x 10,5

2шт.

Included in Repair Kit

1шт.

w00487-34

P48734

SPARE PART

2шт.

e00374-94

P37494

SPARE PART

2шт.

u43460-75

P4346075

SEAL

1шт.

Included in Repair Kit

1шт.

j11452-01

P1145201

WASHER

1шт.

Included in Repair Kit

1шт.

t13290-03

P1329003

CYLINDER END CAP

1шт.

p27460-52

P2746052

SEGMENT

1шт.

Included in Repair Kit

1шт.

n00519-92

P51992

SPARE PART

1шт.

w02460-74

P246074

WIPER SEAL

1шт.

Included in Repair Kit

1шт.

l00304-85

P30485

O-RING

1шт.

Included in Repair Kit

1шт.

x00303-58

P30358

O-RING

1шт.

Included in Repair Kit

1шт.

m02495-15

P249515

SPARE PART

1шт.

t00287-67

P28767

BUSHING

40 x 55 x 45

2шт.

j00458-01

J45801

LUBE NIPPLE,M8 x 1.25

3шт.

p01287-44

P128744

RING

1шт.

e00290-07

P29007

SMALL PIN

2шт.

u00381-29

P38129

COMPRESSION SPRING

2шт.

q01287-45

P128745

SPARE PART

1шт.

s52301-01

P5230101

CYLINDER END CAP

1шт.

s02460-70

P246070

SPARE PART

2шт.

Included in Repair Kit

1шт.

l01289-02

P128902

SPARE PART

1шт.

t02460-71

P246071

SPECIAL MAT. SEAL

1шт.

Included in Repair Kit

1шт.

v00455-36

P45536

SPARE PART

1шт.

x00303-58

P30358

O-RING

SEAL, 6,99 x 129,54-80

1шт.

Included in Repair Kit

1шт.

t27460-10

P2746010

GASKET

SEAL

1шт.

Included in Repair Kit

1шт.

a27460-16

P2746016

SEGMENT

2шт.

Included in Repair Kit

1шт.

v02460-73

P246073

WIPER SEAL

100 x 110

1шт.

Included in Repair Kit

1шт.

m03236-21

P323621

BRAKE

1шт.

h00326-44

P32644

SCREW,Hex, M8 x 16

/BOLT, M8 x 16

2шт.
