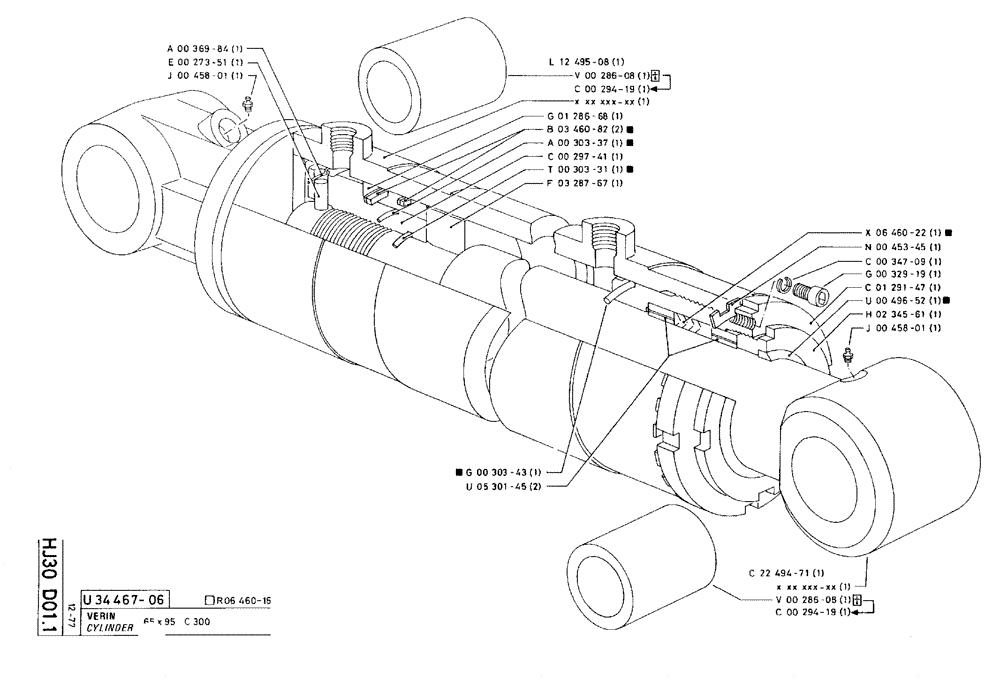

Запчасти Case 75C (HJ030 D01.1) - CYLINDER - 65 X 95 C300 (07) - HYDRAULIC SYSTEM
№
Артикул
Название
Примечание
Количество
u34467-06
P3446706
CYLINDER
1шт.
r06460-16
P646016
SEAL PACKAGE
1шт.
Repair Kit
1шт.
a00369-84
P36984
SPECIAL RING
1шт.
e00273-51
P27351
PIN
10 x 24
1шт.
j00458-01
J45801
LUBE NIPPLE,M8 x 1.25
1шт.
l12495-08
P1249508
JACK BODY
1шт.
v00286-08
P28608
BRONZE BUSHING
BRONZE BUSH 40 x 50 x 80
1шт.
No Longer Sold
1шт.
c00294-19
P29419
BUSHING
40 x 50 x 80
1шт.
Replaces V00286-08
1шт.
g01286-68
P128668
BRONZE BUSHING
BRONZE BUSH
1шт.
b03460-82
P346082
SPECIAL MAT. SEAL
2шт.
Included in Repair Kit
1шт.
a00303-37
P30337
O-RING
SEAL, 5,33 x 66,04-80
1шт.
Included in Repair Kit
1шт.
c00297-41
P29741
NUT
1шт.
t00303-31
P30331
O-RING
SEAL, 5,33 x 46,99-80
1шт.
Included in Repair Kit
1шт.
f03287-67
P328767
WASHER
1шт.
g00303-43
P30343
O-RING
SEAL, 5,33 x 85,09-80
1шт.
Included in Repair Kit
1шт.
u05301-45
P530145
BEARING LINER
2шт.
x06460-22
P646022
LINING
65 x 80
1шт.
Included in Repair Kit
1шт.
n00453-45
P45345
WASHER
100 x 115 x 1
1шт.
c00347-09
P34709
WASHER
1шт.
g00329-19
P32919
SCREW
/BOLT, M8 x 10
1шт.
c01291-47
P129147
CYLINDER END CAP
SPARE PART BEARING
1шт.
u00496-52
P49652
WIPER SEAL
65 x 75
1шт.
Included in Repair Kit
1шт.
h02345-61
P234561
NUT
1шт.
j00458-01
J45801
LUBE NIPPLE,M8 x 1.25
1шт.
c22494-71
P2249471
PISTON ROD
1шт.
v00286-08
P28608
BRONZE BUSHING
BRONZE BUSH 40 x 50 x 80
1шт.
No Longer Sold
1шт.
c00294-19
P29419
BUSHING
40 x 50 x 80
1шт.
Replaces V00286-08
1шт.
Выбрано товаров: 38
