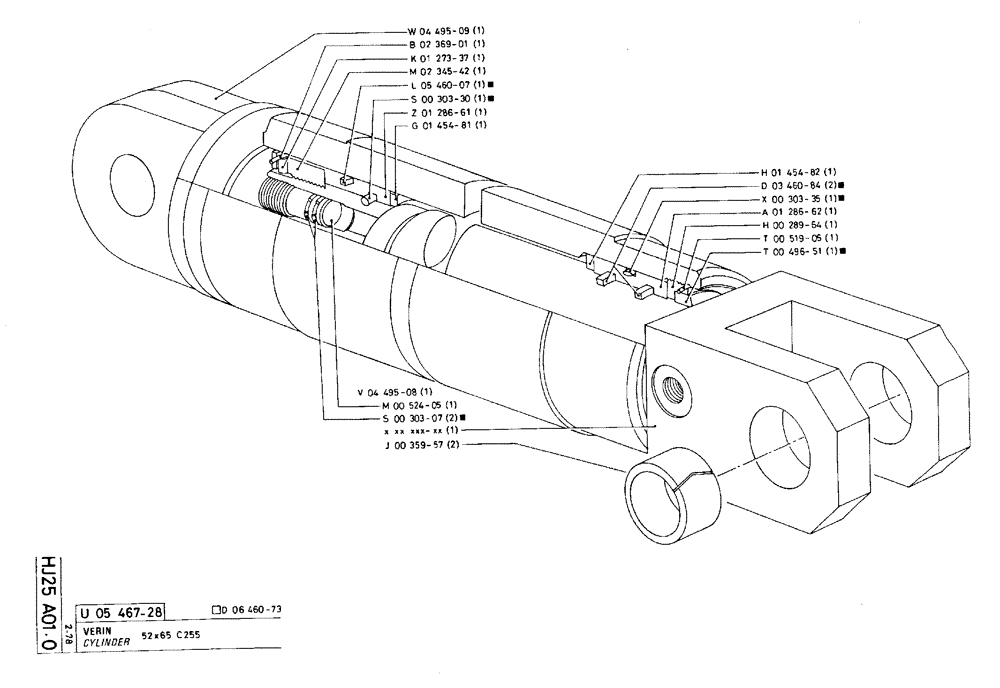

Запчасти Case 75C (HJ025 A01.0) - CYLINDER - 52 X 65 C255 (07) - HYDRAULIC SYSTEM

u05467-28

P546728

CYLINDER ASSY.

1шт.

d06460-73

P646073

SEAL PACKAGE

1шт.

Repair Kit

1шт.

w04495-09

P449509

JACK BODY

1шт.

b02369-01

P236901

SPECIAL RING

1шт.

k01273-37

P127337

LARGE PIN

PIN, LARGE

1шт.

m02345-42

P234542

NUT

1шт.

l05460-07

P546007

SPECIAL MAT. SEAL

1шт.

Included in Repair Kit

1шт.

s00303-30

P30330

O-RING

1шт.

Included in Repair Kit

1шт.

z01286-61

P128661

BRONZE BUSHING

BRONZE BUSH

1шт.

g01454-81

P145481

WASHER

1шт.

v04495-08

P449508

PISTON ROD

1шт.

m00524-05

P52405

PLUG

1шт.

s00303-07

P30307

O-RING

SEAL, 1,9 x 8,9

2шт.

Included in Repair Kit

1шт.

j00359-57

P35957

BUSHING

2шт.

h01454-82

P145482

WASHER

1шт.

d03460-84

P346084

SPECIAL MAT. SEAL

2шт.

Included in Repair Kit

1шт.

x00303-35

P30335

O-RING

SEAL, 5,33 x 59,69-80

1шт.

Included in Repair Kit

1шт.

a01286-62

P128662

BRONZE BUSHING

BRONZE BUSH

1шт.

h00289-64

P28964

CARRIER FLANGE SEAL

1шт.

t00519-05

P51905

SPECIAL RING

1шт.

t00496-51

P49651

WIPER SEAL

52 x 62

1шт.

Included in Repair Kit

1шт.
