(HA28 B71.0) - HYDRAULIC MOTOR - 2800

Запчасти Case 75C (HA28 B71.0) - HYDRAULIC MOTOR - 2800 (07) - HYDRAULIC SYSTEM

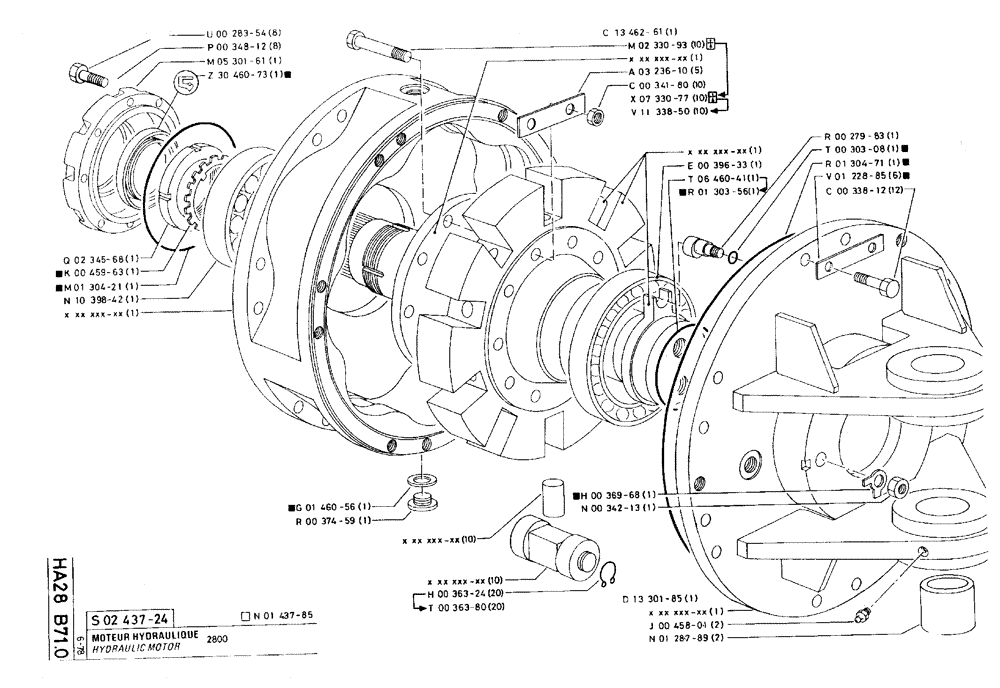

Схема запчастей Case 75C - (HA28 B71.0) - HYDRAULIC MOTOR - 2800 (07) - HYDRAULIC SYSTEM
r01304-71
n01287-89
r01303-56
c13462-61
c00338-12
v01228-85
v11338-50
m02330-93
k00459-63
n00342-13
h00363-24
e00396-33
z30460-73
m05301-61
g01460-56
u00283-54
s02437-24
t00363-80
p00348-12
r00374-59
t06460-41
x07330-77
q02345-68
j00458-01
d13301-85
n01437-85
m01304-21
a03236-10
n10398-42
c00341-80
r00279-83
t00303-08
h00369-68
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

s02437-24

P243724

HYDRAULIC MOTOR

1шт.

n01437-85

P143785

SET

1шт.

Repair Kit

1шт.

q02345-68

P234568

SPARE PART M140 x 2

1шт.

k00459-63

P45963

SPECIAL WASHER

NUT lock

1шт.

Included in Repair Kit

1шт.

m01304-21

P130421

O-RING

SEAL, 3,53 x 196,44-60

1шт.

Included in Repair Kit

1шт.

n10398-42

P1039842

SPARE PART

1шт.

u00283-54

P28354

SCREW

/BOLT, M8 x 40

8шт.

p00348-12

P34812

WASHER

8шт.

m05301-61

P530161

CAP

COVER

1шт.

z30460-73

P3046073

OIL SEAL

ring, 160 x 135 x 14

1шт.

Included in Repair Kit

1шт.

g01460-56

P146056

COMPOSITE SEAL

1шт.

Included in Repair Kit

1шт.

r00374-59

P37459

PLUG

D27 x 1,5

1шт.

h00363-24

P36324

CIRCLIP

20шт.

t00363-80

P36380

RING, SNAP

RING SNAP locking

20шт.

Replaces H00363-24

1шт.

c13462-61

P1346261

SPARE PART

1шт.

m02330-93

M233093

SCREW

10шт.

No Longer Sold

1шт.

a03236-10

P323610

SPARE PART

5шт.

c00341-80

825-1418

NUT,M18, Cl 8

10шт.

x07330-77

P733077

SCREW

10шт.

No Longer Sold

1шт.

v11338-50

P1133850

SCREW

/BOLT, M18 x 110

10шт.

Replaces M02330-93 and X07330-77

1шт.

e00396-33

P39633

BEARING

1шт.

t06460-41

P646041

GASKET

SEAL, 6,99 x 123,19

1шт.

r01303-56

P130356

O-RING

SEAL, 6,99 x 123,19-60

1шт.

Included in Repair Kit

1шт.

Replaces T06460-41

1шт.

h00369-68

P36968

BRAKE

LOCKING

1шт.

Included in Repair Kit

1шт.

n00342-13

P34213

NUT

1шт.

d13301-85

P1330185

COVER

plate

1шт.

j00458-01

J45801

LUBE NIPPLE,M8 x 1.25

2шт.

n01287-89

P128789

BUSHING

60 x 75 x 65

2шт.

r00279-83

P27983

FINGER

DOWEL

1шт.

t00303-08

P30308

SEAL,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

2,7 x 8,9

1шт.

Included in Repair Kit

1шт.

r01304-71

P130471

O-RING

1шт.

Included in Repair Kit

1шт.

v01228-85

P122885

BRAKE

6шт.

Included in Repair Kit

1шт.

c00338-12

P33812

SCREW

/BOLT, M22 x 55

12шт.
