Запчасти Case 75C (HA20 H03.0) - HYDRAULIC MOTOR - 2000 2CX (07) - HYDRAULIC SYSTEM

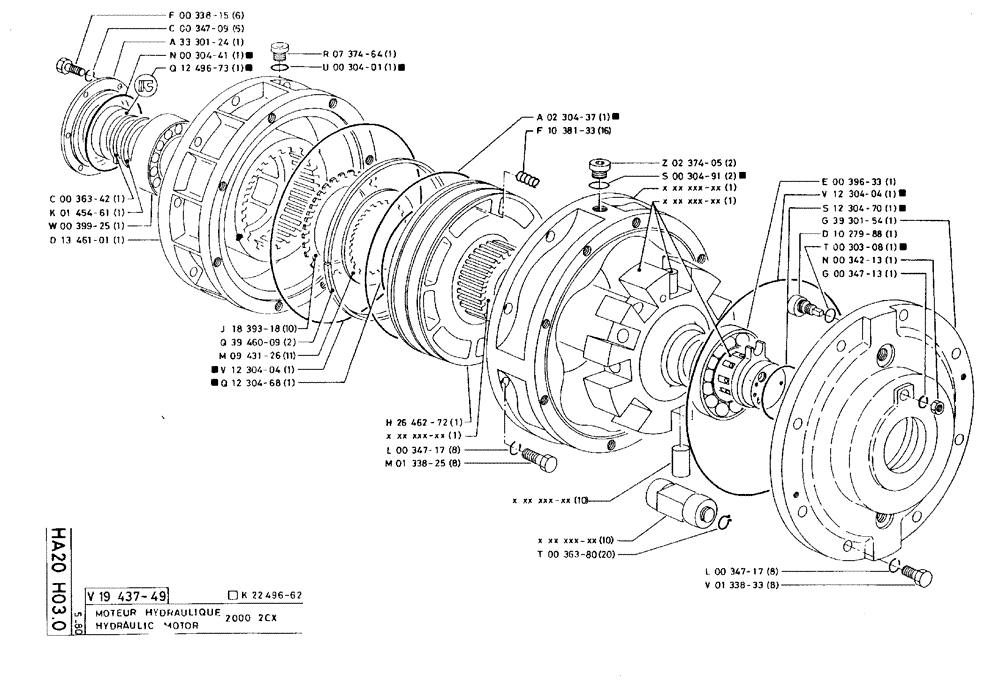

Схема запчастей Case 75C - (HA20 H03.0) - HYDRAULIC MOTOR - 2000 2CX (07) - HYDRAULIC SYSTEM
d13461-01
t00303-08
v12304-04
q39460-09
n00304-41
k22496-62
n00342-13
f00338-15
q12496-73
v01338-33
v12304-04
s00304-91
z02374-05
m09431-26
g39301-54
s12304-70
u00304-01
k01454-61
m01338-25
v19437-49
q12304-68
r07374-64
e00396-33
j18393-18
c00347-09
a33301-24
f10381-33
l00347-17
t00363-80
w00399-25
c00363-42
l00347-17
d10279-88
g00347-13
h26462-72
a02304-37

Артикул

Название

Примечание

Количество

v19437-49

P1943749

MOTOR

1шт.

k22496-62

P2249662

SEAL PACKAGE

1шт.

Repair Kit

1шт.

c00363-42

P36342

RING, SNAP

RING SNAP locking

1шт.

k01454-61

P145461

WASHER

1шт.

w00399-25

P39925

BEARING

1шт.

d13461-01

P1346101

SLEWING RING

1шт.

f00338-15

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

6шт.

c00347-09

P34709

WASHER

6шт.

a33301-24

P3330124

CAP

COVER

1шт.

n00304-41

P30441

O-RING

3 x 190

1шт.

Included in Repair Kit

1шт.

q12496-73

P1249673

ASSEMBLY

1шт.

Included in Repair Kit

1шт.

r07374-64

P737464

PLUG

1шт.

u00304-01

P30401

O-RING,2.5mm Thk x 18.5mm ID

1шт.

Included in Repair Kit

1шт.

j18393-18

P1839318

DISC

10шт.

q39460-09

P3946009

SEGMENT

2шт.

m09431-26

P943126

DISC

11шт.

v12304-04

P1230404

O-RING

4 x 489

1шт.

Included in Repair Kit

1шт.

q12304-68

P1230468

O-RING

6,99 x 285,10

1шт.

Included in Repair Kit

1шт.

h26462-72

P2646272

PISTON

1шт.

l00347-17

P34717

WASHER, LOCK

8шт.

m01338-25

P133825

SCREW

/BOLT, M20 x 60

8шт.

a02304-37

P230437

O-RING

SEAL, 6,99 x 405,26-80

1шт.

Included in Repair Kit

1шт.

f10381-33

P1038133

COMPRESSION SPRING

16шт.

t00363-80

P36380

RING, SNAP

RING SNAP locking

20шт.

z02374-05

P237405

PLUG

3/4 x 12

2шт.

s00304-91

P30491

O-RING

2,5 x 28

2шт.

Included in Repair Kit

1шт.

l00347-17

P34717

WASHER, LOCK

8шт.

v01338-33

P133833

SCREW

/BOLT, M20 x 40

8шт.

e00396-33

P39633

BEARING

1шт.

v12304-04

P1230404

O-RING

4 x 489

1шт.

Included in Repair Kit

1шт.

s12304-70

P1230470

O-RING,10mm Thk x 114mm ID, 70 Duro

10 x 114-60

1шт.

g39301-54

P3930154

COVER

plate

1шт.

d10279-88

P1027988

FINGER

DOWEL

1шт.

t00303-08

P30308

SEAL,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

2,7 x 8,9

1шт.

Included in Repair Kit

1шт.

n00342-13

P34213

NUT

1шт.

g00347-13

P34713

WASHER

1шт.

Выбрано товаров: 46
