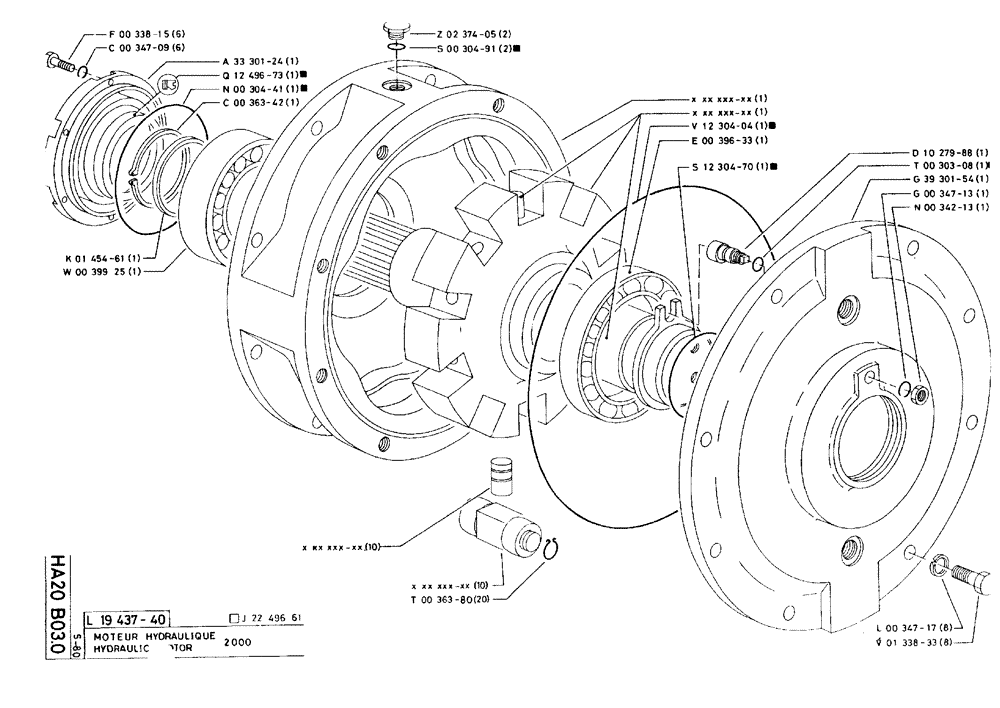

Запчасти Case 75C (HA20 B03.0) - HYDRAULIC MOTOR - 2000 (07) - HYDRAULIC SYSTEM

l19437-40

P1943740

MOTOR, HYDRAULIC

1шт.

j22496-61

P2249661

SEAL PACKAGE

1шт.

Repair Kit

1шт.

f00338-15

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

6шт.

c00347-09

P34709

WASHER

6шт.

k01454-61

P145461

WASHER

1шт.

w00399-25

P39925

BEARING

1шт.

a33301-24

P3330124

CAP

COVER

1шт.

q12496-73

P1249673

ASSEMBLY

1шт.

Included in Repair Kit

1шт.

n00304-41

P30441

O-RING

3 x 190

1шт.

Included in Repair Kit

1шт.

c00363-42

P36342

RING, SNAP

RING SNAP locking

1шт.

z02374-05

P237405

PLUG

3/4 x 12

2шт.

s00304-91

P30491

O-RING

2,5 x 28

2шт.

Included in Repair Kit

1шт.

t00363-80

P36380

RING, SNAP

RING SNAP locking

20шт.

v12304-04

P1230404

O-RING

4 x 489

1шт.

Included in Repair Kit

1шт.

e00396-33

P39633

BEARING

1шт.

s12304-70

P1230470

O-RING,10mm Thk x 114mm ID, 70 Duro

10 x 114-60

1шт.

Included in Repair Kit

1шт.

d10279-88

P1027988

FINGER

DOWEL

1шт.

t00303-08

P30308

SEAL,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

2,7 x 8,9

1шт.

Included in Repair Kit

1шт.

g39301-54

P3930154

COVER

plate

1шт.

g00347-13

P34713

WASHER

1шт.

n00342-13

P34213

NUT

1шт.

l00347-17

P34717

WASHER, LOCK

8шт.

v01338-33

P133833

SCREW

/BOLT, M20 x 40

8шт.
