(HA12 D02.1) - HYDRAULIC MOTOR - 1250 X

Запчасти Case 75C (HA12 D02.1) - HYDRAULIC MOTOR - 1250 X (07) - HYDRAULIC SYSTEM

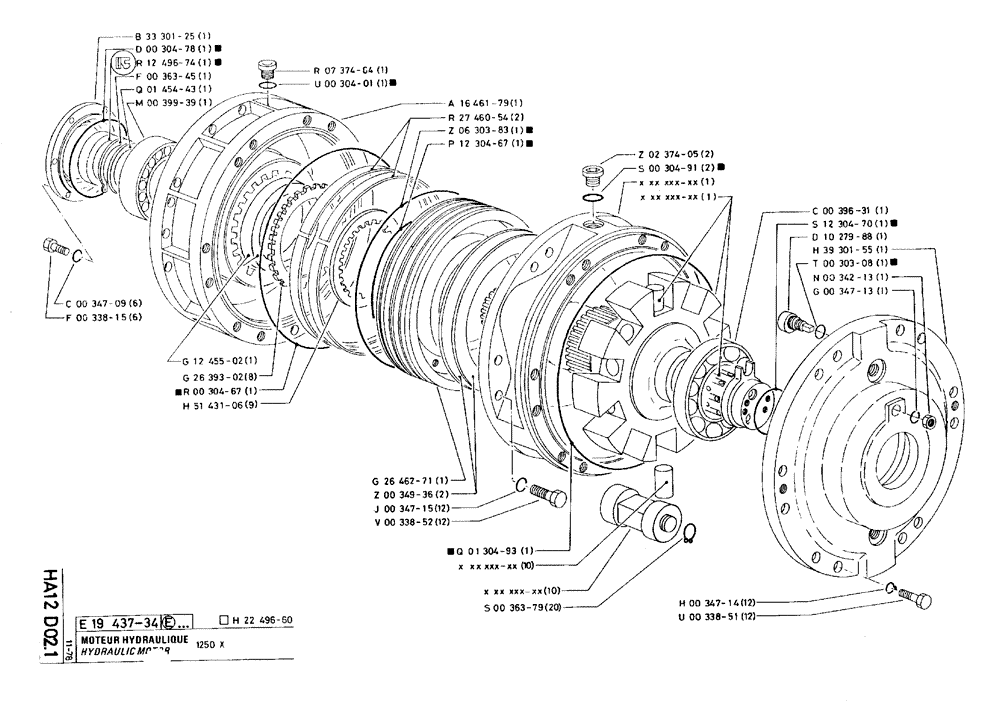

Схема запчастей Case 75C - (HA12 D02.1) - HYDRAULIC MOTOR - 1250 X (07) - HYDRAULIC SYSTEM
q01304-93
h51431-06
m00399-39
f00338-15
e19437-34
r07374-04
t00303-08
s12304-70
c00396-31
d10279-88
d00304-78
n00342-13
r00304-67
g00347-13
u00338-51
s00363-79
r27460-54
z02374-05
u00304-01
z06303-83
q01454-43
s00304-91
b33301-25
a16461-79
g12455-02
h39301-55
c00347-09
g26393-02
v00338-52
j00347-15
g26462-71
h00347-14
f00363-45
r12496-74
h22496-60
z00349-36
p12304-67
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

e19437-34

P1943734

MOTOR, HYDRAULIC

1шт.

h22496-60

P2249660

SEAL PACKAGE

1шт.

Repair Kit

1шт.

b33301-25

P3330125

CAP

1шт.

d00304-78

P30478

O-RING

3 x 161

1шт.

Included in Repair Kit

1шт.

r12496-74

P1249674

ASSEMBLY

1шт.

Included in Repair Kit

1шт.

f00363-45

P36345

SNAP RING

1шт.

q01454-43

P145443

WASHER

1шт.

m00399-39

P39939

BEARING

1шт.

c00347-09

P34709

WASHER

6шт.

f00338-15

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

6шт.

r07374-64

P737464

PLUG

1шт.

u00304-01

P30401

O-RING,2.5mm Thk x 18.5mm ID

1шт.

Included in Repair Kit

1шт.

g12455-02

P1245502

SPACER

1шт.

g26393-02

P2639302

DISC

8шт.

r00304-67

P30467

O-RING

2,5 x 366

1шт.

Included in Repair Kit

1шт.

h51431-06

P5143106

DISC

9шт.

a16461-79

P1646179

SLEWING RING

1шт.

r27460-54

P2746054

SEGMENT

2шт.

z06303-83

P630383

O-RING

1шт.

Included in Repair Kit

1шт.

p12304-67

P1230467

O-RING

1шт.

Included in Repair Kit

1шт.

g26462-71

P2646271

PISTON

1шт.

z00349-36

P34936

RUBBER WASHER

2шт.

j00347-15

P34715

WASHER, LOCK

12шт.

v00338-52

P33852

SCREW

/BOLT, M16 x 45

12шт.

z02347-05

P237405

PLUG

3/4 x 12

2шт.

s00304-91

P30491

O-RING

2,5 x 28

2шт.

Included in Repair Kit

1шт.

q01304-93

P130493

O-RING

1шт.

Included in Repair Kit

1шт.

s00363-79

P36379

RING, SNAP

RING SNAP locking

20шт.

c00396-31

P39631

BEARING

1шт.

s12304-70

P1230470

O-RING,10mm Thk x 114mm ID, 70 Duro

10 x 114-60

1шт.

Included in Repair Kit

1шт.

d10279-88

P1027988

FINGER

DOWEL

1шт.

h39301-55

P3930155

COVER

1шт.

t00303-08

P30308

SEAL,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

2,7 x 8,9

1шт.

Included in Repair Kit

1шт.

n00342-13

P34213

NUT

1шт.

g00347-13

P34713

WASHER

1шт.

h00347-14

P34714

WASHER, LOCK

12шт.

u00338-51

P33851

SCREW

/BOLT, M14 x 35

12шт.
