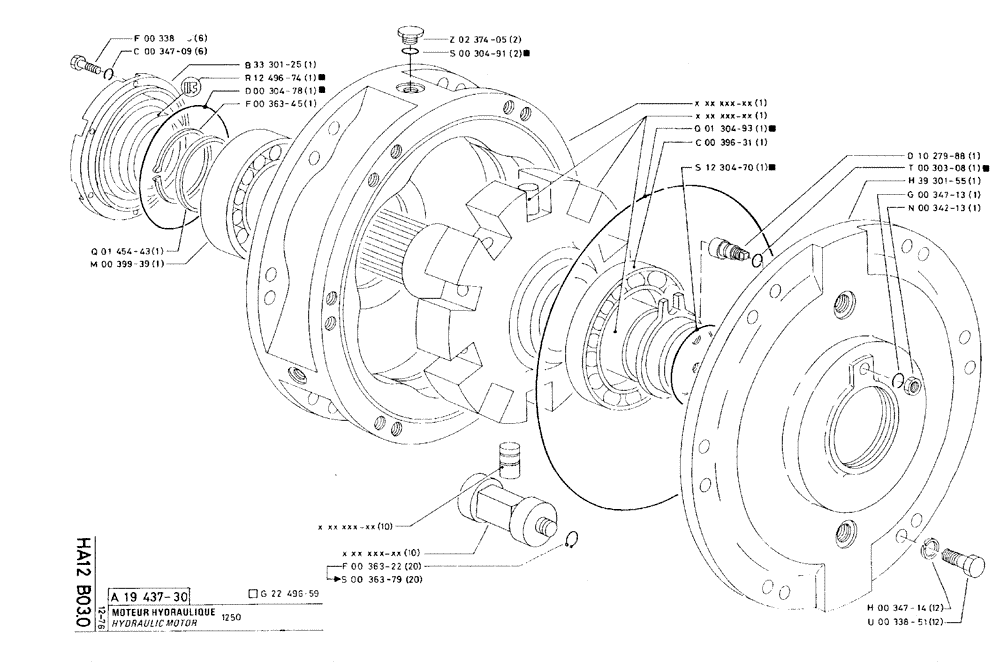

Запчасти Case 75C (HA12 B03.0) - HYDRAULIC MOTOR - 1250 (07) - HYDRAULIC SYSTEM

a19437-30

P1943730

MOTOR, HYDRAULIC

1шт.

g22496-59

P2249659

SEAL PACKAGE

SPARE PART

1шт.

Repair Kit

1шт.

f00338-15

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

6шт.

c00347-09

P34709

WASHER

6шт.

q01454-43

P145443

WASHER

1шт.

m00399-39

P39939

BEARING

1шт.

b33301-25

P3330125

CAP

1шт.

r12496-74

P1249674

ASSEMBLY

1шт.

Included in Repair Kit

1шт.

d00304-78

P30478

O-RING

3 x 161

1шт.

Included in Repair Kit

1шт.

f00363-45

P36345

SNAP RING

1шт.

z02374-05

P237405

PLUG

3/4 x 12

2шт.

s00304-91

P30491

O-RING

2,5 x 28

2шт.

Included in Repair Kit

1шт.

f00363-22

P36322

RING, SNAP

RING SNAP

20шт.

s00363-79

P36379

RING, SNAP

RING SNAP locking

20шт.

Replaces F00363-22

1шт.

q01304-93

P130493

O-RING

1шт.

Included in Repair Kit

1шт.

c00396-31

P39631

BEARING

1шт.

s12304-70

P1230470

O-RING,10mm Thk x 114mm ID, 70 Duro

10 x 114-60

1шт.

Included in Repair Kit

1шт.

d10279-88

P1027988

FINGER

DOWEL

1шт.

t00303-08

P30308

SEAL,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

2,7 x 8,9

1шт.

Included in Repair Kit

1шт.

h39301-55

P3930155

COVER

1шт.

g00347-13

P34713

WASHER

1шт.

n00342-13

P34213

NUT

1шт.

h00347-14

P34714

WASHER, LOCK

12шт.

u00338-51

P33851

SCREW

/BOLT, M14 x 35

12шт.
