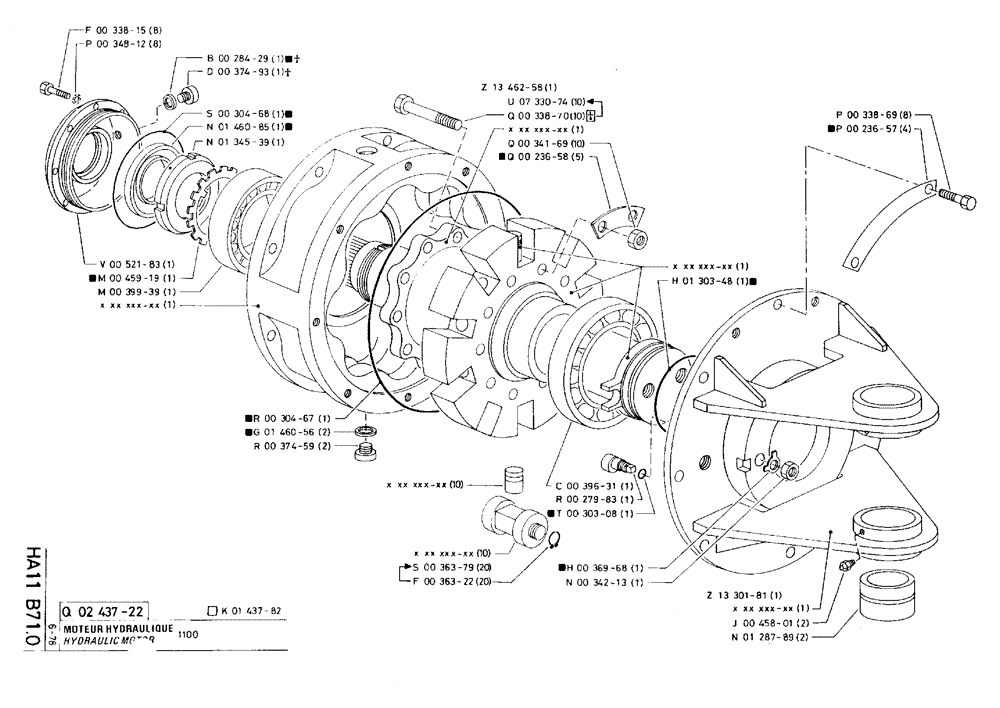

Запчасти Case 75C (HA11 B71.0) - HYDRAULIC MOTOR - 1100 (07) - HYDRAULIC SYSTEM
№
Артикул
Название
Примечание
Количество
q02437-22
P243722
MOTOR, HYDRAULIC
1шт.
k01437-82
P143782
SPARE PART SET
1шт.
Repair Kit
1шт.
f00338-15
43127
BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8
8шт.
p00348-12
P34812
WASHER
8шт.
v00521-83
P52183
CAP
COVER
1шт.
m00459-19
P45919
SPECIAL WASHER
NUT lock
1шт.
Included in Repair Kit
1шт.
m00399-39
P39939
BEARING
1шт.
b00284-29
P28429
COMPOSITE SEAL
1шт.
Not Existing on New Model
1шт.
Included in Repair Kit
1шт.
d00374-93
P37493
SPARE PART
1шт.
Not Existing on New Model
1шт.
s00304-68
P30468
O-RING
2 x 160
1шт.
Included in Repair Kit
1шт.
n01460-85
P146085
OIL SEAL
1шт.
Included in Repair Kit
1шт.
n01345-39
P134539
SLOTTED NUT
M95 x 2
1шт.
r00304-67
P30467
O-RING
2,5 x 366
1шт.
Included in Repair Kit
1шт.
g01460-56
P146056
COMPOSITE SEAL
2шт.
Included in Repair Kit
1шт.
r00374-59
P37459
PLUG
D27 x 1,5
2шт.
z13462-58
P1346258
SHAFT
1шт.
u07330-74
P733074
SPARE PART SCREW/BOLT, M16 x 97
10шт.
Replaces Q00338-70
1шт.
q00338-70
Q33870
SCREW
10шт.
No Longer Sold
1шт.
q00341-69
P34169
NUT
10шт.
q00236-58
P23658
BRAKE
LOCKING
5шт.
Included in Repair Kit
1шт.
s00363-79
P36379
RING, SNAP
RING SNAP locking
20шт.
Replaces F00363-22
1шт.
f00363-22
P36322
RING, SNAP
RING SNAP
20шт.
h01303-48
P130348
O-RING,0.21" Thk x 3.975" ID, -345, Cl 5, 75 Duro
SEAL, 5,33 x 100,97-60
1шт.
Included in Repair Kit
1шт.
c00396-31
P39631
BEARING
1шт.
r00279-83
P27983
FINGER
DOWEL
1шт.
t00303-08
P30308
SEAL,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro
2,7 x 8,9
1шт.
Included in Repair Kit
1шт.
h00369-68
P36968
BRAKE
LOCKING
1шт.
Included in Repair Kit
1шт.
n00342-13
P34213
NUT
1шт.
p00338-69
P33869
BOLT,Hex, M14 x 30
8шт.
p00236-57
P23657
BRAKE
4шт.
Included in Repair Kit
1шт.
z13301-81
P1330181
COVER
plate
1шт.
j00458-01
J45801
LUBE NIPPLE,M8 x 1.25
2шт.
n01287-89
P128789
BUSHING
60 x 75 x 65
2шт.
Выбрано товаров: 50
