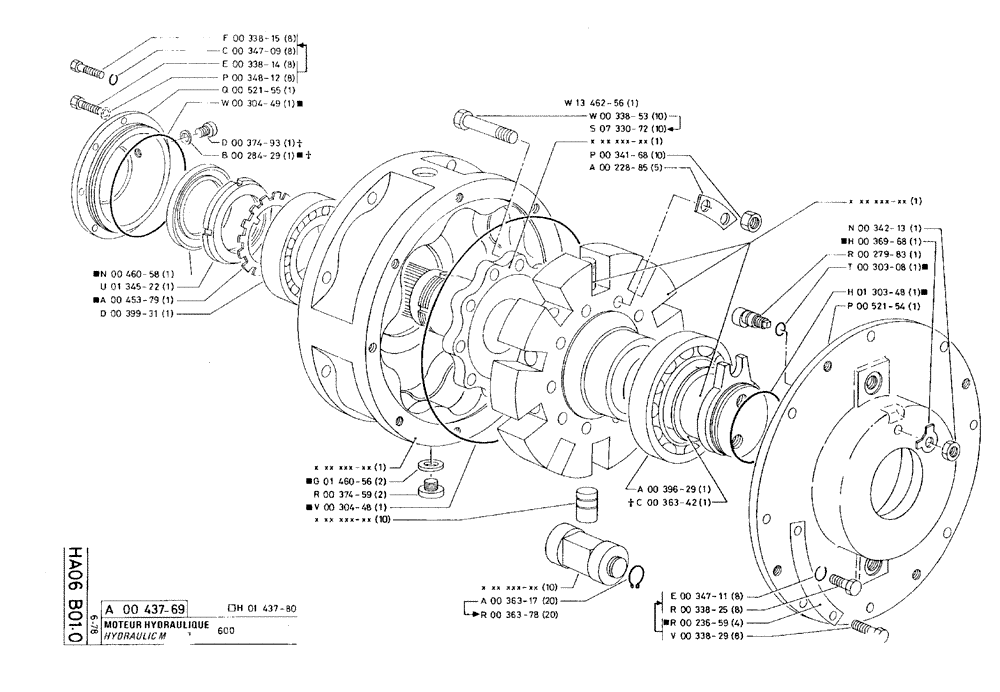

Запчасти Case 75C (HA06 B01.0) - HYDRAULIC MOTOR - 600 (07) - HYDRAULIC SYSTEM

a00437-69

P43769

SPARE PART

1шт.

h01437-80

P143780

SPARE PART SET

1шт.

Repair Kit

1шт.

f00338-15

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

8шт.

Replaces E00338-14 and P00348-12

1шт.

c00347-09

P34709

WASHER

8шт.

Replaces E00338-14 and P00348-12

1шт.

e00338-14

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

8шт.

p00348-12

P34812

WASHER

8шт.

q00521-55

P52155

CAP

COVER

1шт.

w00304-49

P30449

O-RING

3 x 135

1шт.

Included in Repair Kit

1шт.

d00374-93

P37493

SPARE PART

1шт.

Not Existing on New Model

1шт.

b00284-29

P28429

COMPOSITE SEAL

1шт.

Not Existing on New Model

1шт.

Included in Repair Kit

1шт.

n00460-58

P46058

OIL SEAL

1шт.

Included in Repair Kit

1шт.

u01345-22

P134522

SPARE PART M80 x 2

1шт.

a00453-79

P45379

SPECIAL WASHER

NUT lock

1шт.

Included in Repair Kit

1шт.

d00399-31

P39931

BEARING

1шт.

g01460-56

P146056

COMPOSITE SEAL

2шт.

Included in Repair Kit

1шт.

r00374-59

P37459

PLUG

D27 x 1,5

2шт.

v00304-48

P30448

O-RING

4 x 300

1шт.

Included in Repair Kit

1шт.

w13462-56

P1346256

SPARE PART

1шт.

w00338-53

P33853

SCREW

10шт.

s07330-72

P733072

SCREW

/BOLT, M14 x 85

10шт.

Replaces W00338-53

1шт.

p00341-68

P34168

NUT

10шт.

a00228-85

P22885

SPARE PART

5шт.

a00363-17

P36317

RING, SNAP

RING SNAP

20шт.

r00363-78

P36378

SNAP RING

locking

20шт.

Replaces A00363-17

1шт.

a00396-29

P39629

BEARING

1шт.

c00363-42

P36342

RING, SNAP

RING SNAP locking

1шт.

Not Existing on New Model

1шт.

e00347-11

P34711

WASHER

8шт.

Replaces R00236-59 and V00338-29

1шт.

r00338-25

P33825

SCREW

/BOLT, M10 x 35

8шт.

Replaces R00236-59 and V00338-29

1шт.

Included in Repair Kit

1шт.

r00236-59

P23659

BRAKE

4шт.

Included in Repair Kit

1шт.

v00338-29

P33829

SCREW

/BOLT, M10 x 30

8шт.

n00342-13

P34213

NUT

1шт.

h00369-68

P36968

BRAKE

LOCKING

1шт.

Included in Repair Kit

1шт.

r00279-83

P27983

FINGER

DOWEL

1шт.

t00303-08

P30308

SEAL,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

2,7 x 8,9

1шт.

Included in Repair Kit

1шт.

h01303-48

P130348

O-RING,0.21" Thk x 3.975" ID, -345, Cl 5, 75 Duro

5,33 x 100,97-60

1шт.

Included in Repair Kit

1шт.

p00521-54

P52154

COVER

1шт.
