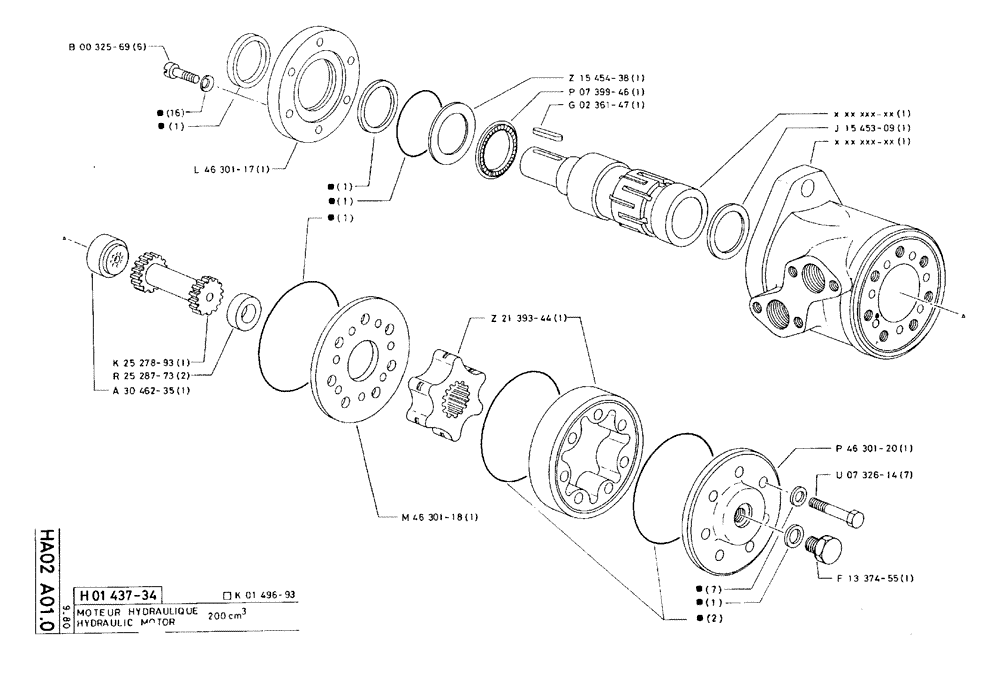

Запчасти Case 75C (HA02 A01.0) - HYDRAULIC MOTOR - 200 CM³ (07) - HYDRAULIC SYSTEM

h01437-34

P143734

MOTOR

1шт.

k01496-93

P149693

SEAL PACKAGE

1шт.

Repair Kit

1шт.

b00325-69

P32569

SCREW

/BOLT, M6 x 20

6шт.

nss

NSS

NOT SOLD SEPARAT

16шт.

Included in Repair Kit

1шт.

nss

NSS

NOT SOLD SEPARAT

1шт.

Included in Repair Kit

1шт.

l46301-17

P4630117

SHIN

BRACKET

1шт.

k25278-93

P2527893

SHAFT

1шт.

r25287-73

P2528773

SPACER

2шт.

a30462-35

P3046235

ASSEMBLY

SPARE PART

1шт.

nss

NSS

NOT SOLD SEPARAT

1шт.

Included in Repair Kit

1шт.

nss

NSS

NOT SOLD SEPARAT

1шт.

Included in Repair Kit

1шт.

nss

NSS

NOT SOLD SEPARAT

1шт.

Included in Repair Kit

1шт.

z15454-38

P1545438

WASHER

1шт.

p07399-46

P739946

BEARING

1шт.

g02361-47

P236147

BUCKET TOOTH KEY

8 x 7 x 32

1шт.

z21393-44

P2139344

PINION

1шт.

m46301-18

P4630118

LARGE PLATE

PLATE, LARGE

1шт.

j15453-09

P1545309

WASHER

1шт.

nss

NSS

NOT SOLD SEPARAT

7шт.

Included in Repair Kit

1шт.

nss

NSS

NOT SOLD SEPARAT

1шт.

Included in Repair Kit

1шт.

nss

NSS

NOT SOLD SEPARAT

2шт.

Included in Repair Kit

1шт.

p46301-20

P4630120

COVER

plate

1шт.

u07326-14

P732614

SCREW

7шт.

f13374-55

P1337455

PLUG

SPARE PART

1шт.
