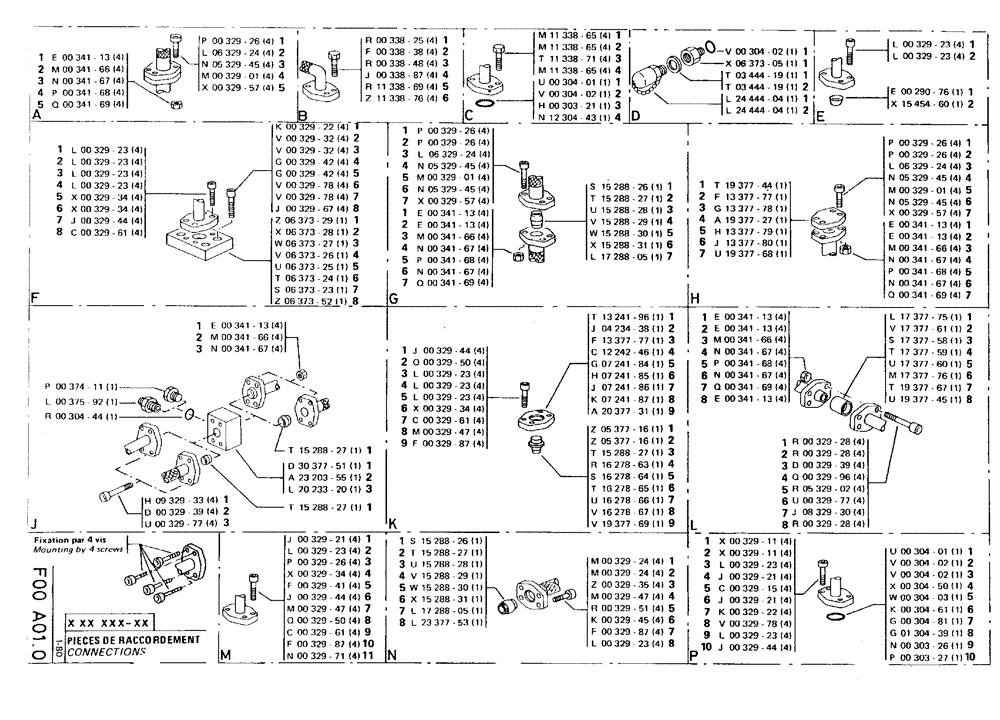

Запчасти Case 75C (F00 A01.0) - CONNECTIONS (07) - HYDRAULIC SYSTEM

e00341-13

P34113

NUT

4шт.

m00341-66

100016

NUT,M10 x 1.5, Cl 8

4шт.

n00341-67

337475

NUT,M12, Cl 10

4шт.

p00341-68

P34168

NUT

16 x 100

4шт.

q00341-69

P34169

NUT

4шт.

l00329-23

P0732978Q

SCREW

4шт.

x00329-34

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

4шт.

j00329-44

P32944

SCREW

/BOLT, M12 x 40

4шт.

c00329-61

P32961

SCREW

M14 x 45

4шт.

p00374-11

P37411

PLUG

1шт.

l00375-92

P37592

UNION

1шт.

r00304-44

P30444

O-RING,2.5mm Thk x 15mm ID, 80 Duro

2,5 x 15

1шт.

p00329-26

W1232958

BOLT,M8 x 45mm, Cl 10.9

4шт.

l06329-24

L632924

SCREW

/BOLT, M10 x 55

4шт.

n05329-45

P532945

SCREW

/BOLT, M12 x 65

4шт.

m00329-01

P32901

SCREW

/BOLT, M14 X 70

4шт.

x00329-57

P32957

SCREW

SPARE PART /BOLT, M16 x 90

5шт.

e00341-13

P34113

NUT

4шт.

m00341-66

100016

NUT,M10 x 1.5, Cl 8

4шт.

n00341-67

337475

NUT,M12, Cl 10

4шт.

h09329-33

P932933

SCREW

/BOLT, M8 x 80

4шт.

d00329-39

P32939

SCREW

/BOLT, M10 x 90

4шт.

u00329-77

P32977

SCREW

/BOLT, M12 x 110

4шт.

k00329-22

P32922

SCREW

/BOLT, M8 x 25

4шт.

v00329-32

P32932

SCREW

/BOLT, M10 x 25

4шт.

g00329-42

P32942

SCREW

/BOLT, M12 x 30

4шт.

v00329-78

P32978

SCREW

/BOLT, M14 x 30

4шт.

j00329-67

P32967

SCREW

/BOLT, M16 x 30

4шт.

z06373-29

P637329

RESTRICTOR

DN21 x 17

1шт.

x06373-28

P637328

RESTRICTOR

DN27 x 17

1шт.

w06373-27

P637327

RESTRICTOR

DN27 x 21

1шт.

v06373-26

P637326

RESTRICTOR

DN34 x 21

1шт.

u06373-25

P637325

RESTRICTOR

DN34 x 27

1шт.

t06373-24

P637324

RESTRICTOR

DN42 x 27

1шт.

s06373-23

P637323

RESTRICTOR

DN42 x 34

1шт.

z06373-52

P637352

RESTRICTOR

50 x 42

1шт.

t15288-27

P1528827

JUNCTION

1шт.

d30377-51

P3037751

JUNCTION

1шт.

a23203-55

P2320355

JUNCTION

SPARE PART

1шт.

l20233-20

P2023320

SPARE PART 34 x 21F

1шт.

t15288-27

P1528827

JUNCTION

1шт.

j00329-21

P32921

SCREW,Hex Soc Hd, M8 x 20, 10.9

/BOLT, M8 x 20

4шт.

l00329-23

P0732978Q

SCREW

4шт.

p00329-26

W1232958

BOLT,M8 x 45mm, Cl 10.9

4шт.

x00329-34

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

4шт.

f00329-41

P32941

SCREW

/BOLT, M12 x 25

4шт.

j00329-44

P32944

SCREW

/BOLT, M12 x 40

4шт.

m00329-47

P32947

SCREW

/BOLT, M12 x 45

4шт.

q00329-50

P32950

SCREW

/BOLT, M14 x 40

4шт.

c00329-61

P32961

SCREW

M14 x 45

4шт.

f00329-87

P32987

SCREW

/BOLT, M16 x 55

4шт.

n00329-71

P32971

SCREW

/BOLT, M14 x 65

4шт.

r00338-25

P33825

SCREW

/BOLT, M10 x 35

4шт.

f00338-38

P33838

SCREW

/BOLT, M12 x 40

4шт.

r00338-48

P33848

SCREW

/BOLT, M14 x 40

4шт.

j00338-87

P33887

SCREW

/BOLT, M12 x 45

4шт.

r11338-69

P1133869

SCREW

/BOLT, M8 x 20

4шт.

z11338-76

P1133876

SCREW

/BOLT, M14 x 45

4шт.

p00329-26

W1232958

BOLT,M8 x 45mm, Cl 10.9

4шт.

l06329-24

L632924

SCREW

/BOLT, M10 x 55

4шт.

n05329-45

P532945

SCREW

/BOLT, M12 x 65

4шт.

m00329-01

P32901

SCREW

/BOLT, M14 X 70

4шт.

n05329-45

P532945

SCREW

/BOLT, M12 x 65

4шт.

x00329-57

P32957

SCREW

SPARE PART /BOLT, M16 x 90

4шт.

e00341-13

P34113

NUT

4шт.

m00341-66

100016

NUT,M10 x 1.5, Cl 8

4шт.

n00341-67

337475

NUT,M12, Cl 10

4шт.

p00341-68

P34168

NUT

4шт.

q00341-69

P34169

NUT

4шт.

j00329-44

P32944

SCREW

/BOLT, M12 x 40

4шт.

q00329-50

P32950

SCREW

/BOLT, M14 x 40

4шт.

l00329-23

P0732978Q

SCREW

4шт.

x00329-34

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

4шт.

c00329-61

P32961

SCREW

M14 x 45

4шт.

m00329-47

P32947

SCREW

/BOLT, M12 x 45

4шт.

f00329-87

P32987

SCREW

/BOLT, M16 x 55

4шт.

s15288-26

P1528826

JUNCTION

1шт.

t15288-27

P1528827

JUNCTION

1шт.

u15288-28

P1528828

JUNCTION

1шт.

v15288-29

P1528829

JUNCTION

1шт.

w15288-30

P1528830

JUNCTION

1шт.

x15288-31

P1528831

JUNCTION

1шт.

l17288-05

P1728805

JUNCTION

1шт.

l23377-53

P2337753

JUNCTION

17 x 21

1шт.

m11338-65

P1133865

SCREW

/BOLT, M6 x 20

4шт.

t11338-71

P1133871

SCREW

/BOLT, M8 x 30

4шт.

m11338-65

P1133865

SCREW

/BOLT, M6 x 20

4шт.

u00304-01

P30401

O-RING,2.5mm Thk x 18.5mm ID

1шт.

v00304-02

P30402

O-RING

1шт.

h00303-21

P30321

O-RING

1шт.

n12304-43

P1230443

O-RING

SEAL, 2,62 x 23,47-80

1шт.

s15288-26

P1528826

JUNCTION

1шт.

t15288-27

P1528827

JUNCTION

1шт.

u15288-28

P1528828

JUNCTION

1шт.

v15288-29

P1528829

JUNCTION

1шт.

w15288-30

P1528830

JUNCTION

1шт.

x15288-31

P1528831

JUNCTION

1шт.

l17288-05

P1728805

JUNCTION

1шт.

t13241-96

P1324196

SHIN

BRACKET

1шт.

j04234-38

P423438

SHIN

BRACKET

1шт.

f13377-77

P1337777

BLANK-OFF PLUG

1шт.

c12242-46

P1224246

SHIN

BRACKET

1шт.

g07241-84

P724184

SHIN

BRACKET

1шт.

h07241-85

P724185

SHIN

BRACKET

1шт.

j07241-86

P724186

SHIN

BRACKET

1шт.

k07241-87

P724187

SHIN

BRACKET

1шт.

a20377-31

P2037731

SHIN

BRACKET

1шт.

z05377-16

P537716

BLANK-OFF PLUG

1шт.

t15288-27

P1528827

JUNCTION

1шт.

r16278-63

P1627863

BLANK-OFF PLUG

1шт.

s16278-64

P1627864

BLANK-OFF PLUG

1шт.

t16278-65

P1627865

BLANK-OFF PLUG

1шт.

u16278-66

P1627866

BLANK-OFF PLUG

1шт.

v16278-67

P1627867

PLUG

1шт.

v19377-69

P1937769

BLANK-OFF PLUG

1шт.

m00329-24

P32924

SCREW

/BOLT, M8 x 35

4шт.

z00329-35

P32935

SCREW

/BOLT, M10 x 40

4шт.

m00329-47

P32947

SCREW

/BOLT, M12 x 45

4шт.

r00329-51

P32951

SCREW

/BOLT, M14 x 50

4шт.

k00329-45

P32945

SCREW

/BOLT, M12 x 50

4шт.

f00329-87

P32987

SCREW

/BOLT, M16 x 55

4шт.

l00329-23

P0732978Q

SCREW

4шт.

v00304-02

P30402

O-RING

1шт.

x06373-05

P637305

RESTRICTOR

cyl x 13g

1шт.

t03444-19

P344419

WASHER, SEALING

SEAL WASHER 13,2 x 17,9 x 1,5

1шт.

l24444-04

P2444404

MAKING-UP

1шт.

t19377-44

P1937744

BLANK-OFF PLUG

1шт.

f13377-77

P1337777

BLANK-OFF PLUG

1шт.

g13377-78

P1337778

BLANK-OFF PLUG

1шт.

a19377-27

P1937727

BLANK-OFF PLUG

1шт.

h13377-79

P1337779

BLANK-OFF PLUG

1шт.

j13377-80

P1337780

BLANK-OFF PLUG

1шт.

u19377-68

P1937768

BLANK-OFF PLUG

1шт.

e00341-13

P34113

NUT

4шт.

m00341-66

100016

NUT,M10 x 1.5, Cl 8

4шт.

n00341-67

337475

NUT,M12, Cl 10

4шт.

p00341-68

P34168

NUT

4шт.

q00341-69

P34169

NUT

4шт.

r00329-28

P32928

SCREW

/BOLT, M8 x 75

4шт.

d00329-39

P32939

SCREW

/BOLT, M10 x 90

4шт.

q00329-96

P32996

SCREW

/BOLT, M12 x 100

4шт.

r05329-02

P532902

SCREW

/BOLT, M14 x 110

4шт.

u00329-77

P32977

SCREW

/BOLT, M12 x 110

4шт.

j08329-30

P832930

SCREW

/BOLT, M16 x 130

4шт.

x00329-11

P32911

SCREW

/BOLT, M6 x 20

4шт.

l00329-23

P0732978Q

SCREW

4шт.

j00329-21

P32921

SCREW,Hex Soc Hd, M8 x 20, 10.9

/BOLT, M8 x 20

4шт.

c00329-15

P32915

SCREW

/BOLT, M6 x 50

4шт.

j00329-21

P32921

SCREW,Hex Soc Hd, M8 x 20, 10.9

/BOLT, M8 x 20

4шт.

k00329-22

P32922

SCREW

/BOLT, M8 x 25

4шт.

v00329-78

P32978

SCREW

/BOLT, M14 x 30

4шт.

l00329-23

P0732978Q

SCREW

4шт.

j00329-44

P32944

SCREW

/BOLT, M12 x 40

4шт.

l00329-23

P0732978Q

SCREW

4шт.

e00290-76

P29076

CONE

21G x 17G

1шт.

x15454-60

P1545460

DIAPHRAGM

RESTRICTOR

1шт.

p00329-26

W1232958

BOLT,M8 x 45mm, Cl 10.9

4шт.

l06329-24

L632924

SCREW

/BOLT, M10 x 55

4шт.

n05329-45

P532945

SCREW

/BOLT, M12 x 65

4шт.

x00329-57

P32957

SCREW

SPARE PART /BOLT, M16 x 90

4шт.

e00341-13

P34113

NUT

4шт.

m00341-66

100016

NUT,M10 x 1.5, Cl 8

4шт.

n00341-67

337475

NUT,M12, Cl 10

4шт.

p00341-68

P34168

NUT

4шт.

q00341-69

P34169

NUT

4шт.

l17377-75

P1737775

JUNCTION

1шт.

v17377-61

P1737761

JUNCTION

1шт.

s17377-58

P1737758

JUNCTION

1шт.

t17377-59

P1737759

JUNCTION

1шт.

u17377-60

P1737760

JUNCTION

1шт.

m17377-76

P1737776

JUNCTION

1шт.

t19377-67

P1937767

JUNCTION

SPARE PART

1шт.

u19377-45

P1937745

JUNCTION

F21 x 17

1шт.

u00304-01

P30401

O-RING,2.5mm Thk x 18.5mm ID

1шт.

v00304-02

P30402

O-RING

1шт.

x00304-50

P30450

O-RING,3mm Thk x 36mm ID

3 x 36

1шт.

w00304-03

P30403

O-RING,0.103" Thk x 1.049" ID, -121, Cl 6, 90 Duro

SEAL, 2,62 x 26,64-80

1шт.

k00304-61

P30461

O-RING

2,5 x 40

1шт.

g00304-81

P30481

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

SEAL, 3,53 x 50,39-80

1шт.

g01304-39

P130439

O-RING,0.103" Thk x 1.862" ID, -134, Cl 5, 75 Duro

SEAL, 2,62 x 47,29-80

1шт.

n00303-26

P30326

SEAL

3,6 x 35,6

1шт.

p00303-27

P30327

SEAL

3,6 x 37,3

1шт.

m00329-01

P32901

SCREW

/BOLT, M14 X 70

4шт.
