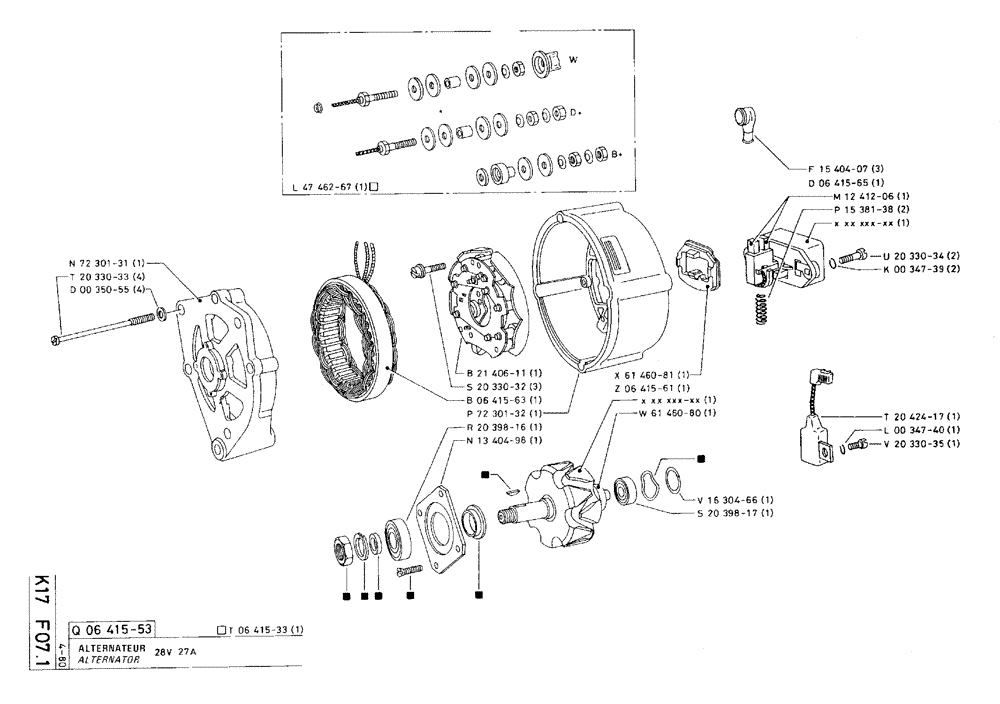

Запчасти Case 75C (K17 F07.1) - ALTERNATOR - 28V 27A (06) - ELECTRICAL SYSTEMS

q06415-53

P641553

ALTERNATOR

1шт.

t06415-33

P641533

KIT

1шт.

Repair Kit

1шт.

n72301-31

P7230131

FLANGE

1шт.

t20330-33

P2033033

SCREW

/BOLT

4шт.

d00350-55

P35055

WASHER

4шт.

l47462-67

P4746267

SET OF PARTS

1шт.

Repair Kit

1шт.

b21406-11

P2140611

RECTIFIER

1шт.

s20330-32

P2033032

SCREW

/BOLT

3шт.

b06415-63

P641563

STATOR

1шт.

p72301-32

P7230132

FLANGE

1шт.

r20398-16

P2039816

BEARING

1шт.

n13404-98

P1340498

DUST CAP

1шт.

NSS

NOT SOLD SEPARAT

1шт.

Included in Repair Kit

1шт.

NSS

NOT SOLD SEPARAT

1шт.

Included in Repair Kit

1шт.

NSS

NOT SOLD SEPARAT

1шт.

Included in Repair Kit

1шт.

NSS

NOT SOLD SEPARAT

1шт.

Included in Repair Kit

1шт.

NSS

NOT SOLD SEPARAT

1шт.

Included in Repair Kit

1шт.

NSS

NOT SOLD SEPARAT

1шт.

Included in Repair Kit

1шт.

x63460-81

P6146081

SEAL

1шт.

z06415-61

P641561

ROTOR

1шт.

w61460-80

P6146080

BUSHING

1шт.

NSS

NOT SOLD SEPARAT

1шт.

Included in Repair Kit

1шт.

v16304-66

P1630466

O-RING

SEAL

1шт.

s20398-17

P2039817

BEARING

1шт.

f18404-07

P1540407

LIGHT FAIRING

CAP

3шт.

d06415-65

P641565

GOVERNOR

REGULATOR

1шт.

m12412-06

P1241206

SPARE PART SET

1шт.

p15381-38

P1538138

SPRING

2шт.

u20330-34

P2033034

SCREW

/BOLT

2шт.

k00347-39

P34739

WASHER

2шт.

t20424-17

P2042417

BRUSH, COMMUTATOR

BRUSH

1шт.

l00347-40

P34740

WASHER

1шт.

v20330-35

P2033035

SCREW

/BOLT

1шт.
