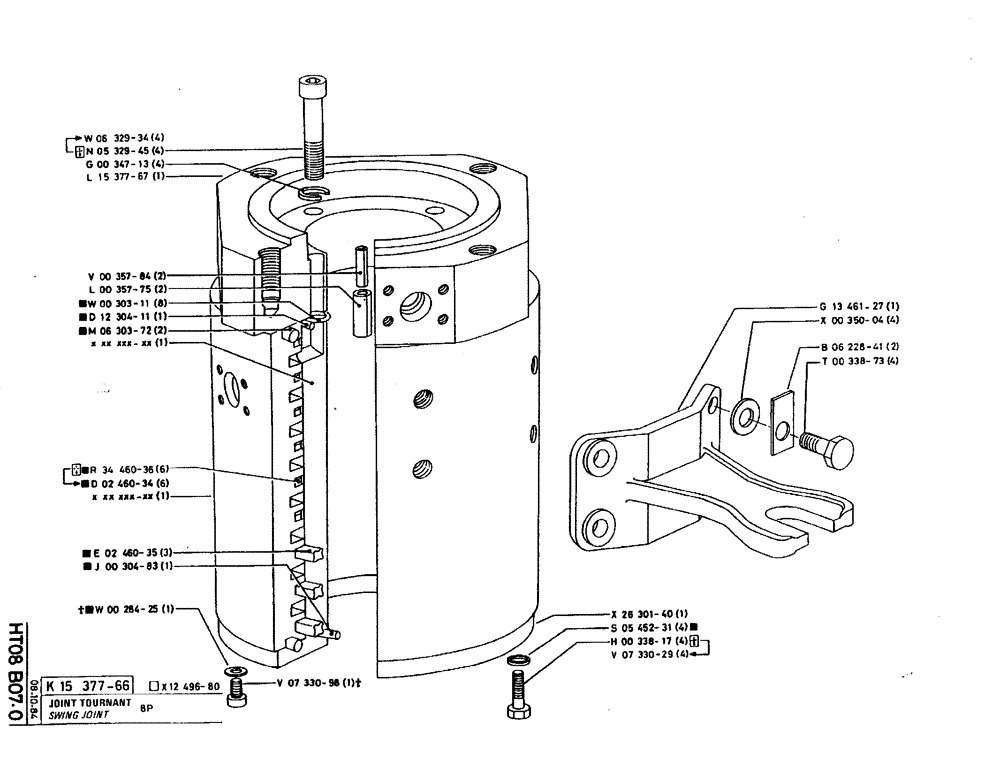

Запчасти Case 220B (HT08 B07.0) - SWING JOINT - 8P (07) - HYDRAULIC SYSTEM

k15377-66

K1537766

HYDRAULIC SWIVEL

1шт.

x12496-80

X1249680

SEAL PACKAGE

1шт.

Repair Kit

1шт.

w06329-34

W632934

SCREW,Hex Skt Hd, M12 x 65mm, Cl 10.9

4шт.

Replaces N05329-45

1шт.

n05329-45

W632934

SCREW,Hex Skt Hd, M12 x 65mm, Cl 10.9

4шт.

No Longer Sold

1шт.

g00347-13

G34713

WASHER

4шт.

l15377-67

L1537767

HEAD

1шт.

v00357-84

V35784

SPLIT PIN/SAFETY PIN

2шт.

l00357-75

L32832

KIT

2шт.

w00303-11

W30311

O-RING

8шт.

Included in Repair Kit

1шт.

d12304-11

D1230411

O-RING

1шт.

Included in Repair Kit

1шт.

m06303-72

M630372

O-RING

2шт.

Included in Repair Kit

1шт.

r34460-36

R3446036

GASKET

6шт.

No Longer Sold

1шт.

Included in Repair Kit

1шт.

d02460-34

D246034

COMPOSITE SEAL

6шт.

Included in Repair Kit

1шт.

Replaces R34460-36

1шт.

e02460-35

E246035

SEAL,161.02mm ID x 175mm OD x 6.99mm Thk

3шт.

Included in Repair Kit

1шт.

j00304-83

J30483

O-RING

1шт.

Included in Repair Kit

1шт.

w00284-25

W28425

GASKET

1шт.

Included in Repair Kit

1шт.

Not Existing on New Model

1шт.

v07330-98

V733098

SCREW

1шт.

Not Existing on New Model

1шт.

g13461-27

G1346127

SUPPORT

1шт.

x00350-04

X35004

WASHER

4шт.

b06228-41

B622841

BRAKE

2шт.

t00338-73

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

4шт.

x26301-40

X2630140

WASHER

1шт.

s05452-31

S545231

WASHER

4шт.

Included in Repair Kit

1шт.

h00338-17

H33817

SCREW

4шт.

No Longer Sold

1шт.

v07330-29

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

4шт.

Replaces H00338-17

1шт.
