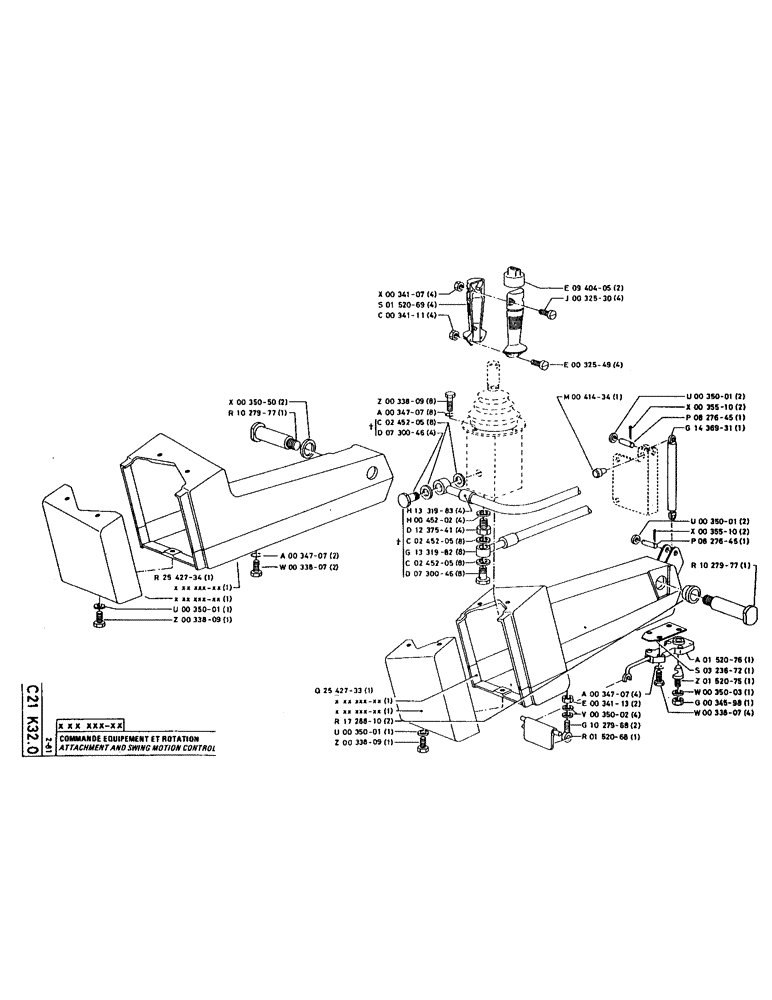

Запчасти Case 220 (082) - ATTACHMENT AND SWING MOTION CONTROL (04) - UNDERCARRIAGE

P34107

NUT

4шт.

P34107 Nut. See NITS 3257, 3270, 3271, 3275, 3291

1шт.

P152069

HANDLE

4шт.

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

4шт.

P940405

LIGHT FAIRING

CAP

2шт.

P32530

SCREW

/BOLT, M4 x 10

4шт.

P32549

SCREW

/BOLT, M6 x 16

4шт.

P35050

WASHER

2шт.

P1027977

PIN

1шт.

120100

BOLT,M6 x 20mm, Cl 8.8

8шт.

P34707

WASHER

8шт.

P245205

WASHER, SEALING

SEAL WASHER, no longer exists on new model

8шт.

P730046

BANJO BOLT

FEMALE SCREW, no longer exists on new model

4шт.

P41434

STOP

1шт.

P35001

WASHER

2шт.

P35510

SPLIT PIN

2 x 20

2шт.

P827645

PIN

1шт.

P1436931

CYLINDER ASSY.

RUNNER

1шт.

P2542734

CASE

BOX

1шт.

P35001

WASHER

1шт.

120100

BOLT,M6 x 20mm, Cl 8.8

1шт.

P34707

WASHER

2шт.

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

Hex, M6 x 25, 8.8, Full Thd

2шт.

P1331983

HOSE

4шт.

P45202

WASHER, SEALING

SEAL WASHER, 17.2 x 20.9 x 1.5

4шт.

P1237541

UNION

4шт.

P245205

WASHER, SEALING

SEAL WASHER, no longer exists on new model

8шт.

P1331982

HOSE

8шт.

P245205

WASHER, SEALING

SEAL WASHER

8шт.

P730046

BANJO BOLT

FEMALE SCREW

8шт.

P35001

WASHER

2шт.

P35510

SPLIT PIN

2 x 20

2шт.

P827645

PIN

1шт.

P1027977

PIN

1шт.

P2542733

CASE

BOX

1шт.

P1728810

SELF LUB RING

20/26 x 16

2шт.

P35001

WASHER

1шт.

120100

BOLT,M6 x 20mm, Cl 8.8

1шт.

P34707

WASHER

4шт.

P34113

NUT

2шт.

P35002

WASHER

4шт.

P1027968

CLEVIS

FORK

2шт.

P152068

HANDLE

1шт.

P152076

LOCK

1шт.

P323672

HOOD

PLATE

1шт.

P152075

CONE

1шт.

P35003

WASHER

1шт.

P34598

SAFETY NUT

1шт.

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

Hex, M6 x 25, 8.8, Full Thd

4шт.
