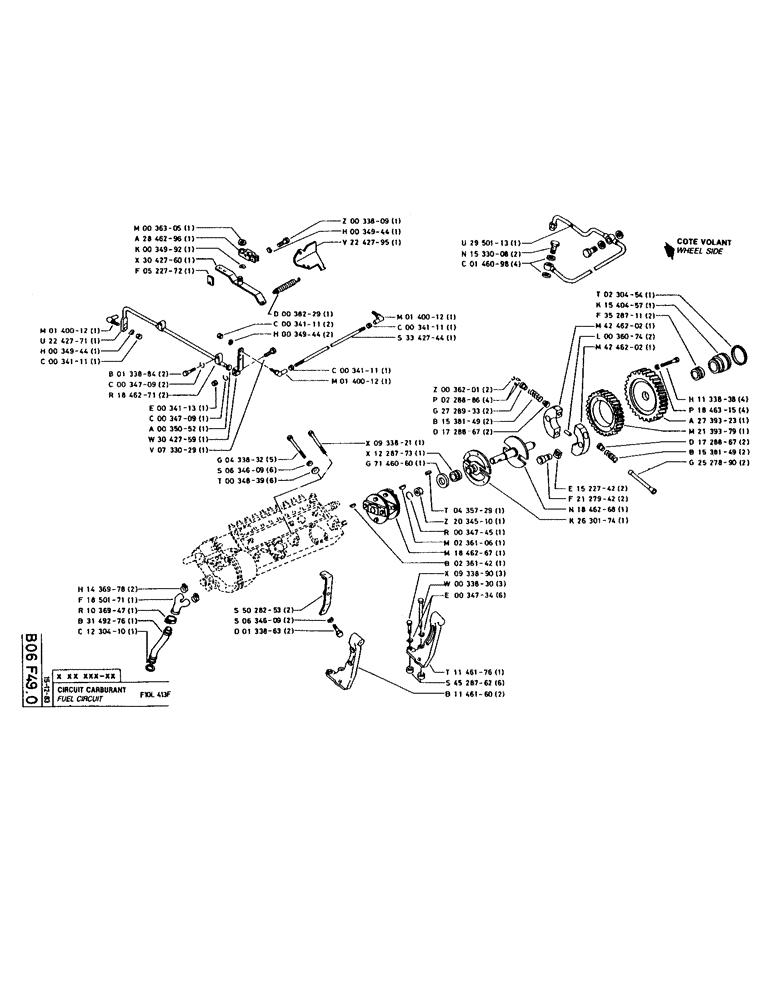

Запчасти Case 220 (066) - FUEL CIRCUIT (02) - FUEL SYSTEM

800-1112

SNAP RING,M12, Ext

RING, SNAP, (Replaced P36305 ) M12, Ext

1шт.

P2846296

DEUTZ PART

BEARING

1шт.

P34992

RUBBER WASHER

SPRING WASHER

1шт.

P3042760

DEUTZ PART

LEVER

1шт.

P522772

DEUTZ PART

PLATE

1шт.

120100

BOLT,M6 x 20mm, Cl 8.8

1шт.

P34944

DEUTZ PART

SPRING WASHER

1шт.

P2242795

DEUTZ PART

LEVER

1шт.

P2950113

DEUTZ PART

PIPE

1шт.

P1533008

BOLT

FEMALE SCREW

2шт.

P146098

WASHER, SEALING

SEAL WASHER, 10.3 x 13.4 x 1

4шт.

P140012

DEUTZ PART

JOINT

1шт.

P2242771

DEUTZ PART

ROD

1шт.

P34944

DEUTZ PART

SPRING WASHER

1шт.

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

1шт.

P133884

SCREW

/BOLT, M8 x 35 x 35

2шт.

P34709

WASHER

2шт.

P1846271

DEUTZ PART

BLOCK

2шт.

P34113

NUT

1шт.

P34709

WASHER

1шт.

P35052

DEUTZ PART

WASHER

1шт.

P3042759

DEUTZ PART

CONTROL LEVER

1шт.

P733029

SCREW

/BOLT, M8 x 30 x 30

1шт.

P38229

DEUTZ PART

SPRING

1шт.

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

2шт.

P34944

DEUTZ PART

SPRING WASHER

2шт.

P140012

DEUTZ PART

JOINT

1шт.

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

1шт.

P3342744

DEUTZ PART

CONTROL ROD

1шт.

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

1шт.

P140012

DEUTZ PART

JOINT

1шт.

P230454

DEUTZ PART

4 x 60

1шт.

P1540457

DEUTZ PART

COVER

1шт.

P3528711

DEUTZ PART

COVER PLATE

2шт.

P4246202

BALANCIN WEIGH

1шт.

P36074

DEUTZ PART

SPLIT PIN/SAFET, 6 x 18

2шт.

P4246202

BALANCIN WEIGH

1шт.

P36201

DEUTZ PART

RING

2шт.

P228886

RETAINER

4шт.

P2728933

DEUTZ PART

BOWL

2шт.

P1538149

DEUTZ PART

SPRING

2шт.

P1728867

DEUTZ PART

STOP

2шт.

P933821

BOLT

SCREW/BOLT, M8 x 75

1шт.

P1228773

DEUTZ PART

BUSHING

1шт.

P7146060

DEUTZ PART

SEAL RING

1шт.

P433832

SCREW

/BOLT, M8 x 75

5шт.

P634609

DEUTZ PART

WASHER

6шт.

P34839

DEUTZ PART

WASHER

6шт.

P1436978

DEUTZ PART

COLLAR

2шт.

P1850171

DEUTZ PART

END FITTING

1шт.

P1036947

DEUTZ PART

COLLAR

1шт.

P3149276

DEUTZ PART

PIPELINE

1шт.

P1230410

DEUTZ PART

3 x 16

1шт.

P5028253

DEUTZ PART

SUPPORT

2шт.

P36305 Locking Ring subs to 800-1112 External Retaining Ring, P933823 Screw/Bolt subs to 614-6020 Bolt, P933878 Screw/Bolt subs to P733029 Bolt, P143697 Collar subs to P2036988 Clamp, P933877 Screw/Bolt subs to 614-10030 Bolt, P33830 Screw/Bolt subs to 814-10070 Bolt, P1546286 Coupling subs to P1846267 Coupling, P34111-Nut subs to 825-1406 Nut.

1шт.

P634609

DEUTZ PART

WASHER

2шт.

P133863

SCREW

/BOLT, M8 x 18

2шт.

P1146176

DEUTZ PART

SUPPORT

1шт.

P4528762

DEUTZ PART

SLEEVE

6шт.

P1146160

DEUTZ PART

SUPPORT

2шт.

P435729

DEUTZ PART

SPLIT PIN/SAFET

1шт.

P2034510

DEUTZ PART

NUT, M14 x 1.5

1шт.

P34745

WASHER

1шт.

P236106

DEUTZ PART

KEY, 4 x 6.5

1шт.

P1846267

DEUTZ PART

COUPLING

1шт.

P236142

DEUTZ PART

KEY

1шт.

P933890

SCREW

/BOLT, M10 x 30 x 30

3шт.

P33830

SCREW

/BOLT, M10 x 70

3шт.

P34734

WASHER

6шт.

P1522742

DEUTZ PART

PLATE

2шт.

P2127942

PIN

2шт.

P1846268

SHAFT

1шт.

P2630174

FLANGE

1шт.

P1133838

BOLT

SCREW/BOLT, M8 x 50

4шт.

P1846315

WASHER

4шт.

P2739323

PINION

1шт.

P2139379

DEUTZ PART

PINION

1шт.

P1728867

DEUTZ PART

STOP

2шт.

P1538149

DEUTZ PART

SPRING

2шт.

P2527890

LARGE PIN

PIN

2шт.
