Запчасти Case 220 (295) - LOADER BUCKET (19) - BUCKETS

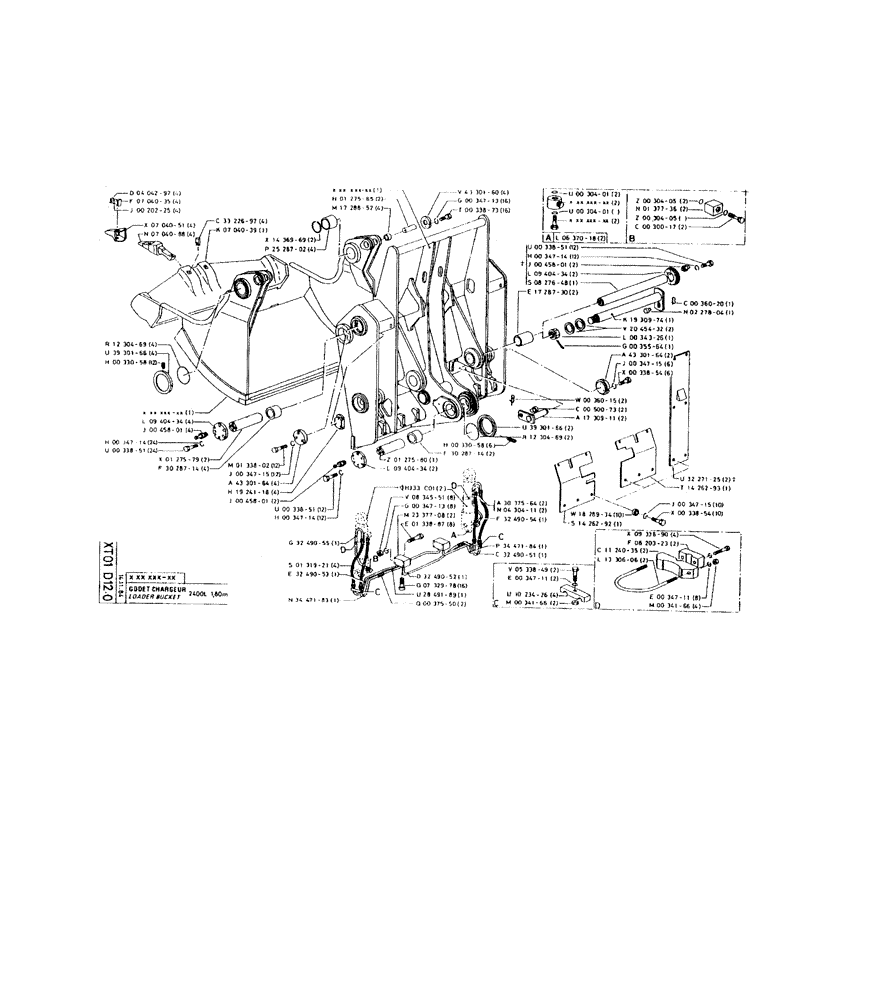

Схема запчастей Case 220 - (295) - LOADER BUCKET (19) - BUCKETS

Артикул

Название

Примечание

Количество

P404297

BUCKET TOOTH KEY

KEY

4шт.

P704035

BUCKET TOOTH KEY

KEY

4шт.

P20225

BLOCK ASSY.

BLOCK

4шт.

P704051

POINT

NAIL

4шт.

P704088

SUPPORT

4шт.

P1230469

O-RING

16 x 172

4шт.

P3930166

FLANGE

4шт.

P33058

SCREW

/BOLT, M6 x 15

12шт.

P940434

CAP

COVER

4шт.

J45801

LUBE NIPPLE,M8 x 1.25

GREASE NIPPLE, M8 x 1.25

4шт.

P34714

WASHER, LOCK

WASHER

24шт.

P33851

SCREW

/BOLT, M14 x 35

24шт.

P127579

LARGE PIN

PIN

2шт.

P3028714

BUSHING, LARGE

BUSHING, 100 x 130 x 75

4шт.

P3322697

BUCKET TOOTH KEY

KEY

4шт.

P704039

BLADE

1шт.

P1436969

SPECIAL RING

RING

2шт.

P2528702

BUSHING

100 x 130 x 90

4шт.

P133802

SCREW

/BOLT, M16 x 40

12шт.

P34715

WASHER, LOCK

WASHER

12шт.

P4330164

CAP

COVER

4шт.

P1924118

CAP

COVER

4шт.

J45801

LUBE NIPPLE,M8 x 1.25

GREASE NIPPLE, M8 x 1.25

2шт.

P33851

SCREW

/BOLT, M14 x 35

12шт.

P34714

WASHER, LOCK

WASHER

12шт.

P3249055

PIPE

11 x 17

1шт.

P131921

HOSE

4шт.

P3249053

PIPE

11 x 17

1шт.

P3447183

PIPE

11 x 17

1шт.

P127565

LARGE PIN

PIN

2шт.

P1728852

BUSHING, LARGE

BUSHING, 50 x 65 x 40

4шт.

P4330160

SHAFT LOCK

4шт.

P34713

WASHER

16шт.

See SAT 77.

1шт.

P33873

SCREW

/BOLT, M12 x 25

16шт.

P33873 Screw/Bolt. See NEXSB02590; NIT 3230

1шт.

P33058

SCREW

/BOLT, M6 x 15

6шт.

P3028714

BUSHING, LARGE

BUSHING, 100 x 130 x 75

2шт.

P127580

LARGE PIN

PIN

1шт.

P940434

CAP

COVER

2шт.

100016

NUT,M10 x 1.5, Cl 8

8шт.

P34713

WASHER

8шт.

P2337708

BLOCK ASSY.

BLOCK

2шт.

P133887

SCREW

/BOLT, M12 x 110

8шт.

P3249052

PIPE

11 x 17

1шт.

Q732978

SCREW,Hex Skt Hd, M8 x 30mm, Cl 10.9

16шт.

P732978 Screw/Bolt. See NITS 994, 3257

1шт.

P2849189

PIPE

11 x 17

1шт.

P37550

UNION

2шт.

P37550 Union. See NIT 1128

1шт.

P33851

SCREW

/BOLT, M14 x 35, no longer exists on new model

12шт.

P34714

WASHER, LOCK

WASHER, no longer exists on new model

12шт.

J45801

LUBE NIPPLE,M8 x 1.25

GREASE NIPPLE, , no longer exists on new model M8 x 1.25

2шт.

See NEXSL00189; NIT 3260; SAT 65

1шт.

P940434

CAP

COVER, no longer exists on new model

2шт.

P827648

LARGE PIN

PIN, no longer exists on new model

1шт.

P1728730

BUSHING, LARGE

BUSHING, 90 x 120 x 100

2шт.

P3930166

FLANGE

2шт.

P1230469

O-RING

16 x 172

2шт.

P3037564

FITTING

CONNECTION

2шт.

P430411

O-RING

SEAL, 2.62 x 18.72-80

2шт.

P3249054

PIPE

11 x 17

1шт.

P3447184

PIPE

11 x 17

1шт.

P3249051

PIPE

11 x 17

1шт.

P36015

SPLIT PIN/SAFETY PIN

SPLIT PIN/SAFET

2шт.

P50073

SHAFT LOCK

2шт.

P1730911

LARGE PIN

PIN

2шт.

P1828934

ROUND BAR

10шт.

P1426292

HOOD

PLATE

1шт.

P36020

SPLIT PIN/SAFETY PIN

1шт.

P227804

SHAFT LOCK

1шт.

P1930974

PIN

1шт.

P2045432

WASHER

2шт.

P34326

NUT

1шт.

P35564

SPLIT PIN/SAFETY PIN

SPLIT PIN, 10 x 140

1шт.

P4330164

CAP

COVER

2шт.

P34715

WASHER, LOCK

WASHER

6шт.

P33854

SCREW

/BOLT, M16 x 50

6шт.

P3227125

HOOD

PLATE, no longer exists on new model

2шт.

P1426293

HOOD

PLATE

1шт.

P34715

WASHER, LOCK

WASHER

10шт.

See SAT 77.

1шт.

P33854

SCREW

/BOLT, M16 x 50

10шт.

P30401

O-RING,2.5mm Thk x 18.5mm ID

2.5 x 18.5

2шт.

P30401

O-RING,2.5mm Thk x 18.5mm ID

2.5 x 18.5

1шт.

P30405

O-RING

SEAL, 2.62 x 32.99-80

2шт.

P137736

FITTING

CONNECTION

2шт.

P30405

O-RING

SEAL, 2.62 x 32.99-80

1шт.

P30017

BANJO BOLT

FEMALE SCREW

2шт.

P533849

SCREW

/BOLT, M10 x 65

2шт.

P34711

WASHER

2шт.

P1023426

SHIN

BRACKET

4шт.

100016

NUT,M10 x 1.5, Cl 8

2шт.

P933890

SCREW

/BOLT, M10 x 30 x 30

4шт.

P820323

SHIN

BRACKET

2шт.

P1124035

SUPPORT

2шт.

P1330606

STIRRUP

BRACKET, 118 x 100

2шт.

P34711

WASHER

8шт.

100016

NUT,M10 x 1.5, Cl 8

4шт.

Выбрано товаров: 99
