Запчасти Case 220 (024) - CAB GUARD - SOUNDPROOFING (12) - Chassis/Attachments

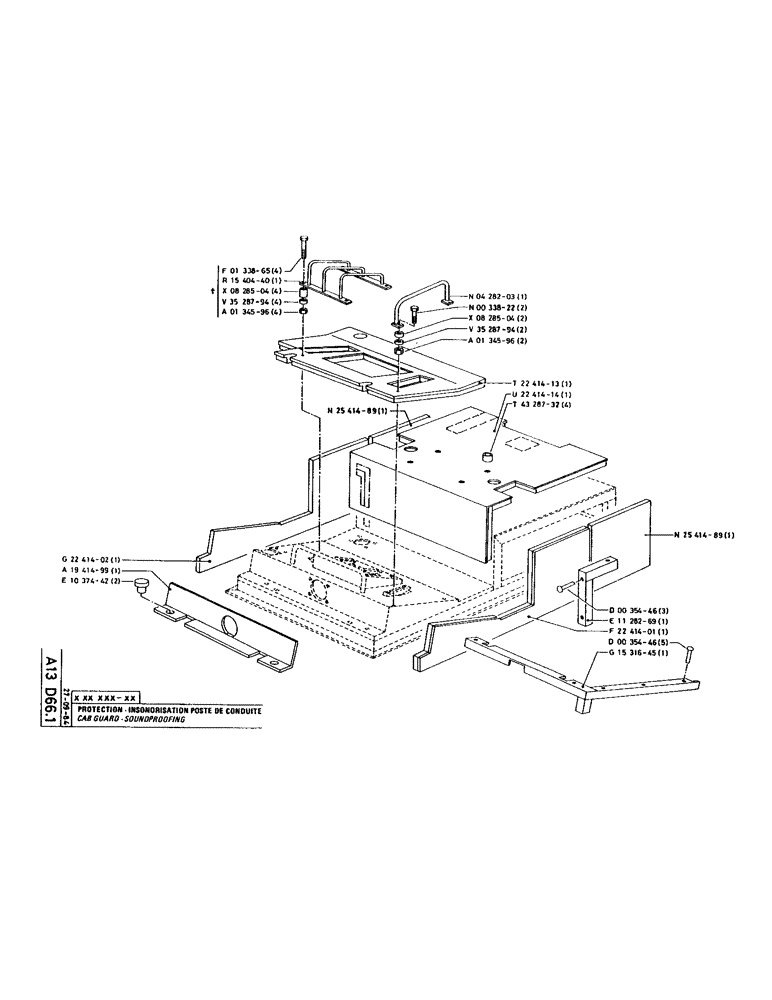

Схема запчастей Case 220 - (024) - CAB GUARD - SOUNDPROOFING (12) - Chassis/Attachments

Артикул

Название

Примечание

Количество

P133865

SCREW

/BOLT, M8 x 60, no longer exists on new model

4шт.

P1540440

PROTECTOR

no longer exists on new model

1шт.

P828504

BUSHING

no longer exists on new model

4шт.

P3528794

WASHER

8.25 x 6 x 20, no longer exists on new model

4шт.

P134596

SAFETY NUT

no longer exists on new model

4шт.

P428203

PROTECTOR

1шт.

P33822

SCREW

/BOLT, M8 x 50

2шт.

P828504

BUSHING

2шт.

P3528794

WASHER

8.25 x 6 x 20

2шт.

P134596

SAFETY NUT

2шт.

P2541489

LARGE PLATE

PLATE

1шт.

P2241413

MAT

1шт.

P2241414

MAT

1шт.

P4328732

WASHER

14.5 x 28 x 35

4шт.

P2241402

PLATE

1шт.

P1941499

LARGE PLATE

PLATE

1шт.

P1037442

BLANK-OFF PLUG

2шт.

P2541489

LARGE PLATE

PLATE

1шт.

P35446

RIVET

4.8 x 24.6

3шт.

P1128269

ANGLE

PIECE

1шт.

P2241401

LARGE PLATE

PLATE

1шт.

P35446

RIVET

4.8 x 24.6

5шт.

P1531645

ANGLE BAR

ANGLE IRON

1шт.

Выбрано товаров: 23
