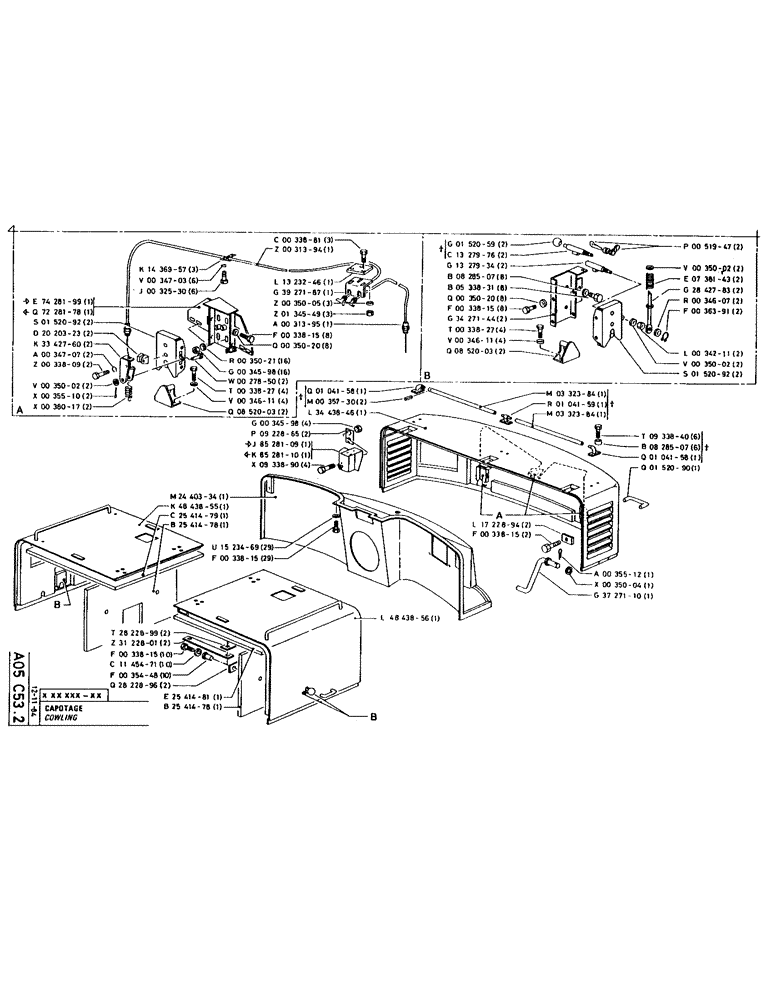

Запчасти Case 220 (015) - COWLING (12) - Chassis/Attachments

P7428199

SUPPORT

right hand part

1шт.

P7228178

SUPPORT

left hand part

1шт.

P152092

LOCK ASSY

LOCK

2шт.

P2020323

CABLE TIE

BULLDOG GRIP

2шт.

P3342760

CLEVIS

FORK

2шт.

P34707

WASHER

2шт.

120100

BOLT,M6 x 20mm, Cl 8.8

2шт.

P35002

WASHER

2шт.

P35510

SPLIT PIN

2 x 20

2шт.

P38017

COIL SPRING

2шт.

P38017 (2) Springs

1шт.

P1436957

CLAMP

COLLAR

3шт.

P34703

WASHER

6шт.

P32530

SCREW

/BOLT, M4 x 10

6шт.

P33881

SCREW

/BOLT, M14 x 60

3шт.

P31394

CABLE

/ROPE

1шт.

P1323246

PLATE

1шт.

P3927187

HOOD

PLATE

1шт.

P35005

WASHER

3шт.

P134549

SAFETY NUT

3шт.

P31395

CABLE

/ROPE

1шт.

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

BOLT, Hex, M8 x 25, 8.8

8шт.

P35020

WASHER

8шт.

P35021

WASHER

16шт.

P34598

SAFETY NUT

16шт.

P27850

PIN

2шт.

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

BOLT, Hex, M10 x 25, 10.9, Full Thd

4шт.

P34611

WASHER

4шт.

P852003

CATCH PLATE

CATCH

2шт.

P152059

BALL KNOB

KNOB, no longer exists on new model

2шт.

P1327976

PIN

no longer exists on new model

2шт.

P1327934

PIN

2шт.

P828507

WASHER

13 x 7 x 25

8шт.

P533831

SCREW

/BOLT, M10 x 15

8шт.

P35020

WASHER

8шт.

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

BOLT, Hex, M8 x 25, 8.8

8шт.

P3427144

SUPPORT

2шт.

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

BOLT, Hex, M10 x 25, 10.9, Full Thd

4шт.

P34611

WASHER

4шт.

P852003

CATCH PLATE

CATCH

2шт.

P51947

LOCK ASSY

LOCK

2шт.

P35002

WASHER

2шт.

P738143

COMPRESSION SPRING

COMPRESSION SPR

2шт.

P2842783

ROD

2шт.

P34607

WASHER

2шт.

P36391

RING, SNAP

LOCKING RING

2шт.

P34211

NUT

2шт.

P35002

WASHER

2шт.

P152092

LOCK ASSY

LOCK

2шт.

P104158

END FITTING

no longer exists on new model

1шт.

P35730

SPLIT PIN/SAFETY PIN

SPLIT PIN/SAFET, 4 x 20, no longer exists on new model

2шт.

P3443846

COVER

1шт.

P34598

SAFETY NUT

4шт.

P922865

PLATE

2шт.

P8528109

STIFFENER

REINFORCEMENT, right hand part

1шт.

P8528110

STIFFENER

REINFORCEMENT, left hand part

1шт.

P933890

SCREW

/BOLT, M10 x 30 x 30

4шт.

P2440334

BOX

1шт.

P4843855

SHUTTER

FLAP

1шт.

P2541479

LARGE PLATE

PLATE

1шт.

P2541478

LARGE PLATE

PLATE

1шт.

P1523469

PLATE

29шт.

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

BOLT, Hex, M8 x 25, 8.8

29шт.

P4843856

SHUTTER

FLAP

1шт.

P2822899

PLATE

2шт.

P3122801

PLATE

2шт.

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

BOLT, Hex, M8 x 25, 8.8

10шт.

P1145471

WASHER

10 x 4 x 45

10шт.

P35448

RIVET

M8 x 18

10шт.

P2822896

PLATE

2шт.

P2541481

LARGE PLATE

PLATE

1шт.

P2541478

LARGE PLATE

PLATE

1шт.

P332384

GRAB RAIL, no longer exists on new model

1шт.

P104159

SUPPORT

no longer exists on new model

1шт.

P332384

GRAB RAIL, no longer exists on new model

1шт.

P933840

SCREW

/BOLT, M12 x 35 x 35, no longer exists on new model

6шт.

P828507

WASHER

13 x 7 x 25, no longer exists on new model

6шт.

P104158

END FITTING

no longer exists on new model

1шт.

P152090

HANDLE

1шт.

P1722894

PLATE

2шт.

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

BOLT, Hex, M8 x 25, 8.8

2шт.

P35512

SPLIT PIN

2 x 30

1шт.

P35004

WASHER

1шт.

P3727110

STAND

PROP

1шт.
