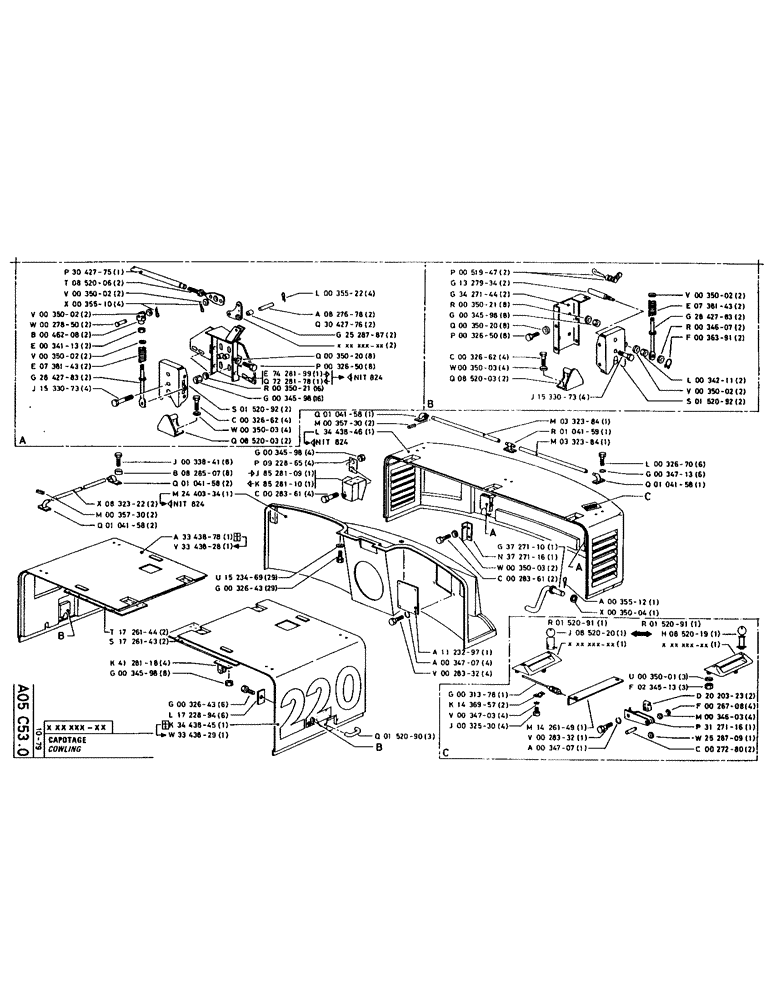

Запчасти Case 220 (013) - COWLING (12) - Chassis/Attachments

P3042775

STEM

ROD

1шт.

P852006

END FITTING, M8 x 0.75

2шт.

P35002

WASHER

2шт.

P35510

SPLIT PIN

2 x 20

4шт.

P35002

WASHER

2шт.

P27850

PIN

2шт.

P34113

NUT

2шт.

P35002

WASHER

2шт.

P738143

COMPRESSION SPRING

COMPRESSION SPR

2шт.

P2842783

ROD

2шт.

P1533073

SCREW/BOLT, M8 x 1.25

4шт.

P35522

SPLIT PIN

3 x 40

4шт.

P827678

PIN

2шт.

P3042776

CRANK

2шт.

P2528787

SELF LUB RING, 8 x 12 x 20

2шт.

P35020

WASHER

8шт.

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

BOLT, Hex, M8 x 20, 8.8

8шт.

P7428199

SUPPORT

right-hand part

1шт.

P7228178

SUPPORT

left-hand part

1шт.

P35021

WASHER

16шт.

P34598

SAFETY NUT

16шт.

P152092

LOCK ASSY

LOCK

2шт.

P32662

SCREW

/BOLT, M10 x 30 x 30

4шт.

P35003

WASHER

4шт.

P852003

CATCH PLATE

CATCH

2шт.

P51947

LOCK ASSY

LOCK

2шт.

P1327934

PIN

2шт.

P3427144

SUPPORT

2шт.

P35021

WASHER

8шт.

P34598

SAFETY NUT

8шт.

P35020

WASHER

8шт.

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

BOLT, Hex, M8 x 20, 8.8

8шт.

P32662

SCREW

/BOLT, M10 x 30 x 30

4шт.

P35003

WASHER

4шт.

P852003

CATCH PLATE

CATCH

2шт.

P1533073

SCREW/BOLT, M8 x 1.25

4шт.

P35002

WASHER

2шт.

P738143

COMPRESSION SPRING

COMPRESSION SPR

2шт.

P2842783

ROD

2шт.

P34607

WASHER

2шт.

P36391

RING, SNAP

LOCKING RING

2шт.

P34211

NUT

2шт.

P35002

WASHER

2шт.

P152092

LOCK ASSY

LOCK

2шт.

P152091

HANDLE

1шт.

P852020

LOCK, CYLINDER

LOCK-CYLINDER, interchangeable assembly

1шт.

P152091

HANDLE

1шт.

P852019

LOCK, CYLINDER

LOCK-CYLINDER, interchangeable assembly

1шт.

P31378

CABLE/ROPE

1шт.

P1436957

CLAMP

COLLAR

2шт.

P34703

WASHER

4шт.

P32530

SCREW

/BOLT, M4 x 10

4шт.

P1426149

PLATE

1шт.

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

BOLT, Hex, M6 x 16, Cl 8.8, Full Thd

1шт.

P34707

WASHER

1шт.

P35001

WASHER

3шт.

P234513

SAFETY NUT

3шт.

P2020323

CABLE TIE

BULLDOG GRIP

2шт.

P26708

SHAFT LOCK

4шт.

P34603

WASHER

4шт.

P3127116

CLEVIS

FORK

1шт.

P2528709

SPACER

1шт.

P27280

PIN

2шт.

P104158

END FITTING

1шт.

P35730

SPLIT PIN/SAFETY PIN

SPLIT PIN/SAFET, 4 x 20

2шт.

P3443846

COVER

1шт.

P34598

SAFETY NUT

4шт.

P922865

PLATE

4шт.

P8528109

STIFFENER

REINFORCEMENT, right-hand part

1шт.

P8528110

STIFFENER

REINFORCEMENT, left-hand part

1шт.

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

4шт.

P33841

SCREW

/BOLT, M12 x 35

8шт.

P828507

WASHER

13 x 7 x 25

8шт.

P104158

END FITTING

2шт.

P2440334

BOX

1шт.

P832322

GRAB RAIL, 15 x 21

2шт.

P35730

SPLIT PIN/SAFETY PIN

SPLIT PIN/SAFET, 4 x 20

2шт.

P104158

END FITTING

2шт.

P3343878

SHUTTER

FLAP, no longer sold

1шт.

P3343828

SHUTTER

FLAP

1шт.

P1523469

PLATE

29шт.

P32643

SCREW/BOLT, M8 x 25 x 25

29шт.

P1726144

REINFORCEMENT

2шт.

P1726143

REINFORCEMENT

2шт.

P4128118

CLEVIS

FORK

4шт.

P34598

SAFETY NUT

8шт.

P32643

SCREW/BOLT, M8 x 25 x 25

6шт.

P1722894

PLATE

6шт.

P3443845

SHUTTER

FLAP, no longer sold

1шт.

P3343829

SHUTTER

FLAP

1шт.

P152090

HANDLE

3шт.

P1123297

LARGE PLATE

PLATE

1шт.

P34707

WASHER

4шт.

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

BOLT, Hex, M6 x 16, Cl 8.8, Full Thd

4шт.

P3727110

STAND

PROP

1шт.

P3727116

ANGLE IRON

1шт.

P35003

WASHER

2шт.

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

2шт.

P32670

SCREW

/BOLT, M12 x 30

6шт.

P34713

WASHER

6шт.

P104158

END FITTING

1шт.

P332384

GRAB RAIL

1шт.

P104159

SUPPORT

1шт.

P332384

GRAB RAIL

1шт.
