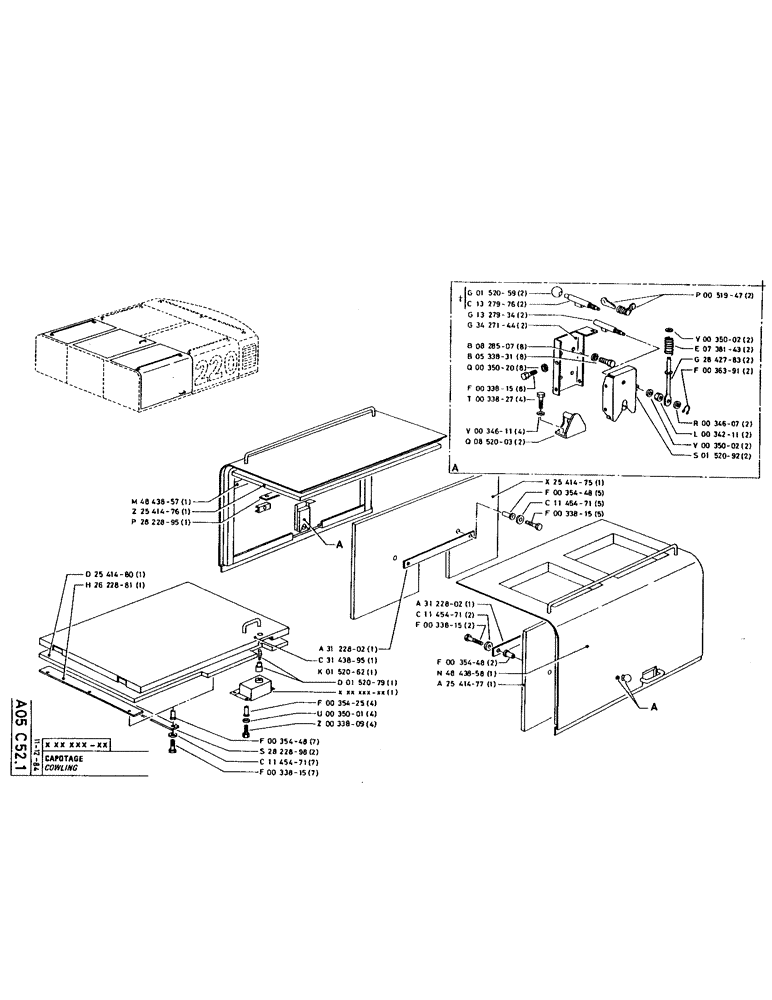

Запчасти Case 220 (012) - COWLING (12) - Chassis/Attachments

P4843857

SHUTTER

FLAP

1шт.

P2541476

LARGE PLATE

PLATE

1шт.

P2822895

PLATE

1шт.

P2541480

LARGE PLATE

PLATE

1шт.

P2622881

PLATE

1шт.

P3122802

PLATE

1шт.

P3143895

SHUTTER

FLAP

1шт.

P152062

LOCK ASSY

LOCK

1шт.

P152079

LOCK, CYLINDER

LOCK-CYLINDER

1шт.

P35425

RIVET

4шт.

P35001

WASHER

4шт.

120100

BOLT,M6 x 20mm, Cl 8.8

4шт.

P35448

RIVET

M8 x 18

7шт.

P2822898

PLATE

2шт.

P1145471

WASHER

10 x 4 x 45

7шт.

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

BOLT, Hex, M8 x 25, 8.8

7шт.

P3122802

PLATE

1шт.

P1145471

WASHER

10 x 4 x 45

2шт.

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

BOLT, Hex, M8 x 25, 8.8

2шт.

P35448

RIVET

M8 x 18

2шт.

P4843858

SHUTTER

FLAP

1шт.

P2541477

LARGE PLATE

PLATE

1шт.

P2541475

LARGE PLATE

PLATE

1шт.

P35448

RIVET

M8 x 18

5шт.

P1145471

WASHER

10 x 4 x 45

5шт.

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

BOLT, Hex, M8 x 25, 8.8

5шт.

P152059

BALL KNOB

KNOB, no longer exists on new model

2шт.

P1327976

PIN

no longer exists on new model

2шт.

P1327934

PIN

2шт.

P3427144

SUPPORT

2шт.

P828507

WASHER

13 x 7 x 25

8шт.

P533831

SCREW

/BOLT, M10 x 15

8шт.

P35020

WASHER

8шт.

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

BOLT, Hex, M8 x 25, 8.8

8шт.

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

BOLT, Hex, M10 x 25, 10.9, Full Thd

4шт.

P34611

WASHER

4шт.

P852003

CATCH PLATE

CATCH

2шт.

P51947

LOCK ASSY

LOCK

2шт.

P35002

WASHER

2шт.

P738143

COMPRESSION SPRING

COMPRESSION SPR

2шт.

P2842783

ROD

2шт.

P36391

RING, SNAP

LOCKING RING

2шт.

P34607

WASHER

2шт.

P34211

NUT

2шт.

P35002

WASHER

2шт.

P152092

LOCK ASSY

LOCK

2шт.
