Запчасти Case 220 (001) - CAB (12) - Chassis/Attachments

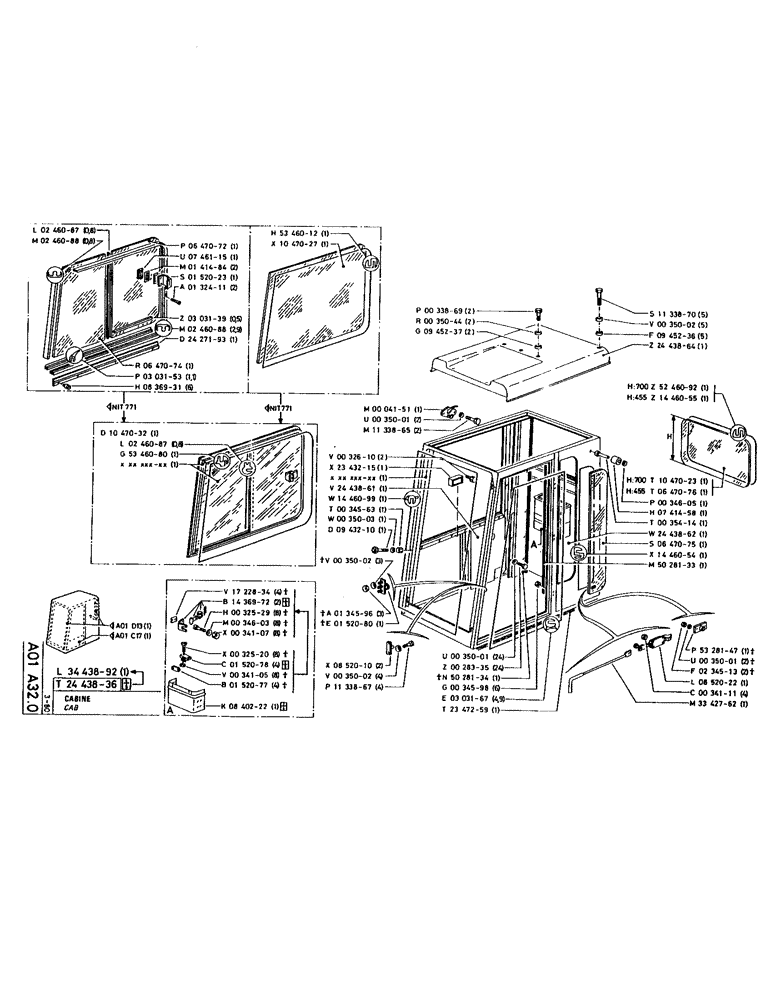

Схема запчастей Case 220 - (001) - CAB (12) - Chassis/Attachments

Артикул

Название

Примечание

Количество

P246087

SEAL

1шт.

P246088

SLIPPER

1шт.

P647072

GLASS

PANE

1шт.

P746115

SOLE

SUPPORT PLATE

1шт.

P141484

SOLE

SUPPORT PLATE

2шт.

P152023

HANDLE

1шт.

P132411

SCREW

/BOLT, M5 x 12

2шт.

P303139

RUBBER STRIP, 10 x 6

1шт.

P246088

SLIPPER

1шт.

P2427193

SUPPORT

BRACKET

1шт.

P647074

GLASS

PANE

1шт.

P303153

SEAL

1шт.

P836931

FASTENER

FITTING

6шт.

P1047032

GLASS

PANE

1шт.

P246087

SEAL

1шт.

P5346080

SEAL

1шт.

P1722834

PLATE

no longer exists on new model, replaced by

4шт.

P32529

SCREW,Hex Soc Hd, M4 x 16

/BOLT, M4 x 16, no longer exists on new model, replaced by

8шт.

P34603

WASHER

no longer exists on new model, replaced by

8шт.

P34107

NUT, no longer exists on new model, replaced by

8шт.

P32520

SCREW

/BOLT, M3 x 20, no longer exists on new model, replaced by

8шт.

86508812

NUT,M3, Cl 8

No Longer Exists on New Model, Replaced by M3, Cl 8

8шт.

P152077

CATCH PLATE

CATCH, no longer exists on new model, replaced by

4шт.

P5346012

SEAL

1шт.

P1047027

GLASS

PANE

1шт.

P33869

BOLT,Hex, M14 x 30

2шт.

P35044

WASHER

2шт.

P945237

WASHER

15 x 45 x 2

2шт.

P4151

COAT HOOK

1шт.

P35001

WASHER

2шт.

P1133865

SCREW

/BOLT, M6 x 20

2шт.

P32610

SCREW

/BOLT, M4 x 16

2шт.

P2343215

ASH TRAY

ASH-TRAY

1шт.

P2443861

LINING

S

1шт.

P1446099

GASKET

SEAL

1шт.

P34563

NUT

1шт.

P35003

WASHER

1шт.

P943210

JET

NOZZLE

1шт.

P35002

WASHER

no longer exists on new model

3шт.

P134596

SAFETY NUT

no longer exists on new model

3шт.

P152080

CATCH PLATE

CATCH, no longer exists on new model

1шт.

P852010

CATCH PLATE

CATCH

2шт.

P35002

WASHER

4шт.

P1133867

SCREW

/BOLT, M8 x 10

4шт.

P35001

WASHER

24шт.

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

BOLT, Hex, M6 x 16, Cl 8.8, Full Thd

24шт.

P5028134

LINING

S, no longer exists on new model

1шт.

P34598

SAFETY NUT

6шт.

P303167

GASKET

SEAL

1шт.

P2347259

HARNESS

WIRE HARNESS

1шт.

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

BOLT, Hex, M8 x 25, 8.8

5шт.

P35002

WASHER

5шт.

P945236

WASHER

6 x 16 x 1

5шт.

P2443864

ROOF

1шт.

P5246092

SEAL

2шт.

P1446055

GASKET

SEAL

1шт.

P1047023

GLASS

PANE

1шт.

P647076

GLASS

PANE

1шт.

P34605

WASHER

1шт.

P741458

STOP

1шт.

P35414

RIVET

D4.8 x 30

1шт.

P2443862

LINING

S

1шт.

P647075

GLASS

PANE

1шт.

P1446054

GASKET

SEAL

1шт.

P5028133

LINING

S

1шт.

P5328147

PLATE

no longer exists on new model

1шт.

P35001

WASHER

no longer exists on new model

2шт.

P234513

SAFETY NUT

no longer exists on new model

2шт.

P852022

LOCK

1шт.

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

4шт.

P3342762

ROD

1шт.

P3443892

CAB

1шт.

P2443836

CAB, no longer sold

1шт.

Выбрано товаров: 73
