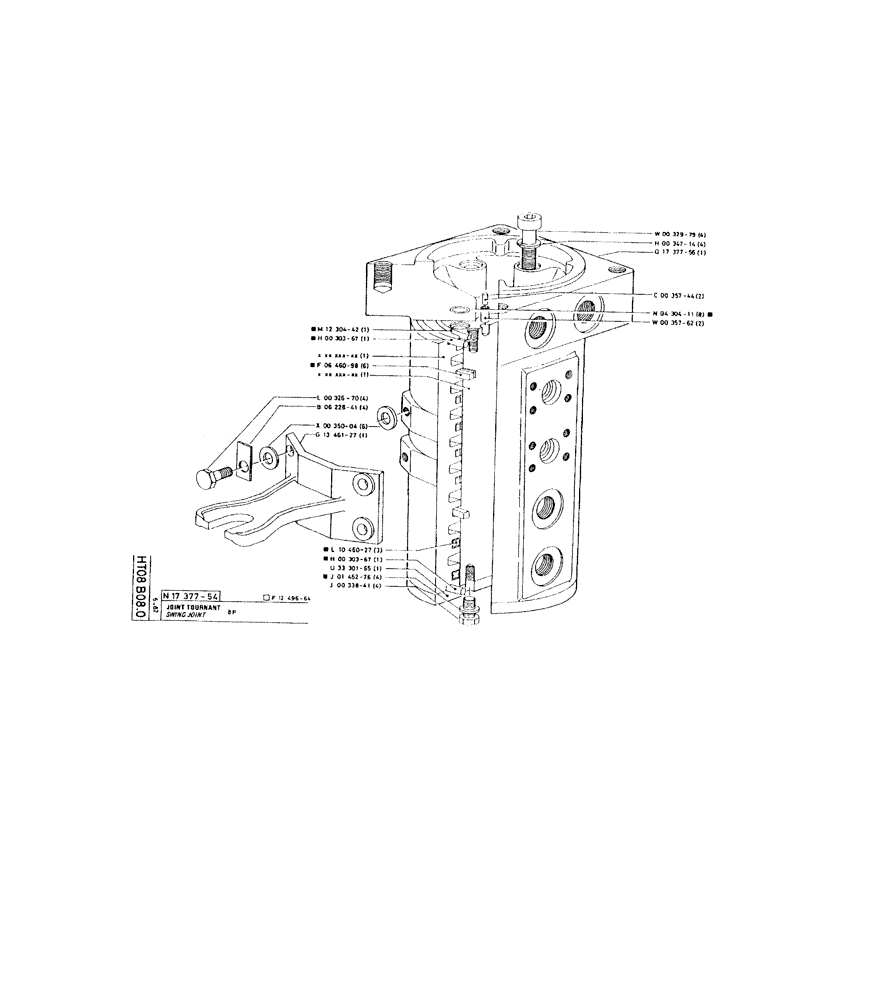

Запчасти Case 220 (219) - SWIVEL JOINT (07) - HYDRAULIC SYSTEM

P1230442

O-RING,0.103" Thk x 4.487" ID, -157, Cl 5, 75 Duro

SEAL, 2.62 x 113.97-60, forms part of a kit

1шт.

P30367

O-RING

SEAL, 6.99 x 164.47-80, forms part of a kit

1шт.

P30367 O-ring/Seal. See NIT 1116

1шт.

P646098

SPECIAL MAT. SEAL

SEAL, forms part of a kit

6шт.

P32670

SCREW

/BOLT, M12 x 30

4шт.

P622841

BRAKE

LOCKING

4шт.

P35004

WASHER

6шт.

P35004 Washer. See EEX8010E; NIT 3308

1шт.

P1346127

SUPPORT

BRACKET

1шт.

P1046027

SEAL

6.99 x 126.37, forms part of a kit

3шт.

P30367

O-RING

SEAL, 6.99 x 164.47-80, forms part of a kit

1шт.

P3330165

WASHER

1шт.

P145276

SEAL

13.3 x 21 x 1.2, forms part of a kit

4шт.

P33841

SCREW

/BOLT, M12 x 35

4шт.

P1737754

HYDRAULIC SWIVEL

TURNING JOINT

1шт.

P1249664

SEAL PACKAGE

SET OF SEALS, kit number

1шт.

P32979

SCREW

/BOLT, M14 x 80

4шт.

P34714

WASHER, LOCK

WASHER

4шт.

P1737756

HEAD

1шт.

P35744

SPLIT PIN/SAFETY PIN

SPLIT PIN/SAFET, 6 x 20

2шт.

P430411

O-RING

SEAL, 2.62 x 18.72-80, forms part of a kit

8шт.

See NEXMP00587; NIT 994

1шт.

P35762

SPLIT PIN/SAFETY PIN

SPLIT PIN/SAFET, 10 x 18

2шт.
