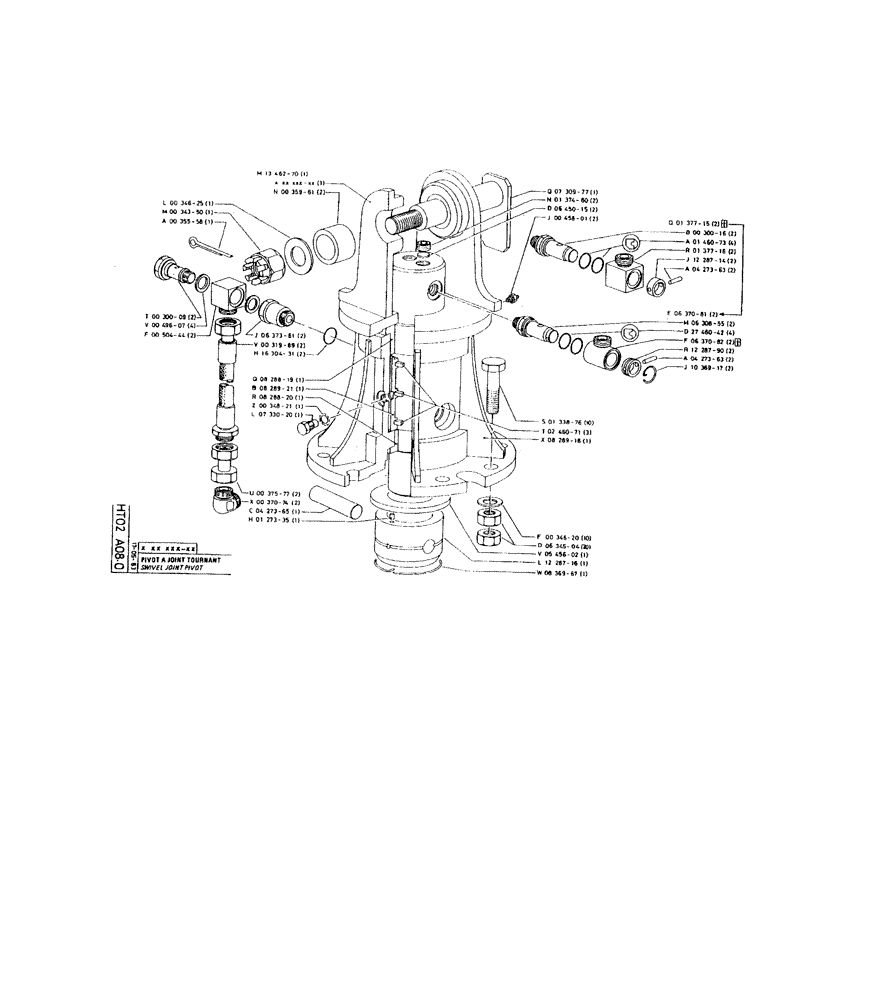

Запчасти Case 220 (218) - SWIVEL JOINT PIVOT (07) - HYDRAULIC SYSTEM

P34625

WASHER

1шт.

P34625 Washer. See SAT 78

1шт.

P34350

NUT

1шт.

P35558

SPLIT PIN

8 x 100

1шт.

P35558 Cotter/Split Pin. See SAT 78

1шт.

P30009

BANJO BOLT

FEMALE SCREW

2шт.

P49607

SEAL

BUSHING

4шт.

P50444

FITTING

CONNECTION

2шт.

P1346270

CLEVIS

FORK

1шт.

P35961

BUSHING

60 x 75 x 49

2шт.

P637361

RESTRICTOR

34G x 27G

2шт.

P31989

HOSE

2шт.

P1630431

O-RING,0.103" Thk x 1.424" ID, -127, Cl 5, 75 Duro

SEAL, 2.62 x 36.17-80

2шт.

P1630431-Seal. See NEXSB01890; SAT 82

1шт.

P828819

BUSHING

1шт.

P828921

BUSHING

1шт.

P828820

BUSHING

1шт.

P34821

WASHER

1шт.

P733020

SCREW

/BOLT, M18 x 35

1шт.

P37577

PIPE

19 x 27

2шт.

P37074

ELBOW-CONNECTION

2шт.

P427365

PIN

1шт.

P127335

LARGE PIN

PIN

1шт.

P730977

HEADED PIN

PIN

1шт.

P137460

PLUG

2шт.

P645015

HOLE PLUG BUTTON

BUTTON, 31 x 2

2шт.

J45801

LUBE NIPPLE,M8 x 1.25

GREASE NIPPLE, M8 x 1.25

2шт.

See NEXSL00189; NIT 3260; SAT 65

1шт.

P133876

SCREW

/BOLT, M27 x 100

10шт.

P246071

SPECIAL MAT. SEAL

SEAL

3шт.

P828918

BODY

1шт.

P34620

WASHER

10шт.

P634504

NUT

20шт.

P545602

WASHER

1шт.

P1228716

SAFETY SET COLL

1шт.

P836967

SPECIAL RING

SPRING WASHER

1шт.

P137715

FITTING

CONNECTION, no longer sold

2шт.

P30016

LARGE PIN

PIN

2шт.

P146073

SPECIAL MAT. SEAL

SEAL

4шт.

P137716

CONNECTION

2шт.

P1228714

BUSHING

2шт.

P427363

PIN

2шт.

P637081

FITTING

CONNECTION

2шт.

P630855

LARGE PIN

PIN

2шт.

P2746042

LINING

S, 32 x 42

4шт.

P637082

BODY

no longer sold

2шт.

P1228790

COLLAR

SAFETY SET COLL

2шт.

P427363

PIN

2шт.

P1036917

SPECIAL MAT. SEAL

SPRING WASHER

2шт.
