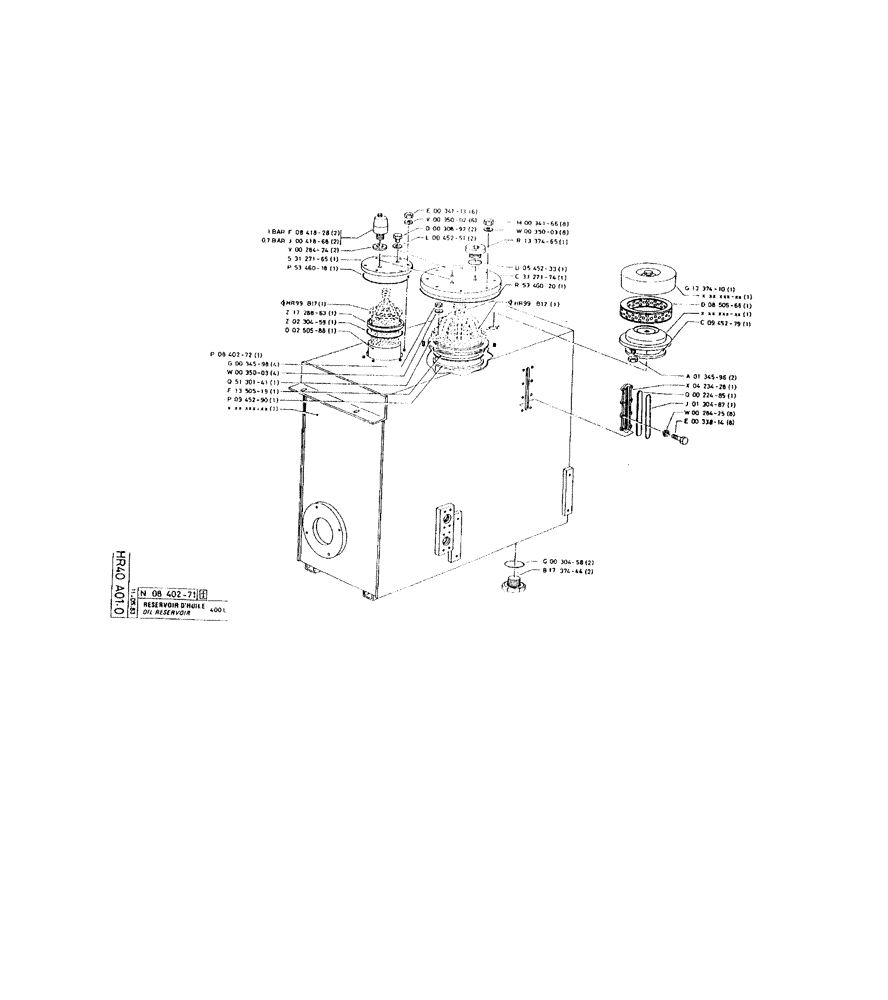

Запчасти Case 220 (215) - OIL RESERVOIR (07) - HYDRAULIC SYSTEM

P841828

ELECTRO/HYD CONTACT

CONTACT

2шт.

P41868

IGNITION SWITCH

CONTACT

2шт.

P28424

COMPOSITE SEAL

METAL PLASTICS

2шт.

P3127165

COVER

PLATE

1шт.

P5346018

SEAL, RUBBER

RUBBER SEAL

1шт.

P1728863

RING

BUSHING

1шт.

P230459

O-RING,5.7mm Thk x 139.3mm ID, 70 Duro

SEAL, 5.7 x 139.3-70

1шт.

P250588

FILTER COVER

COVER

1шт.

P840272

OIL RESERVOIR

1шт.

P34598

SAFETY NUT

4шт.

P34598-Safety/Stop Nut. See EEX8010E; NITS 3077, 3238, 3262, 3263, 3267, 3269, 3275, 3293, 3308

1шт.

P35003

WASHER

4шт.

P5130141

SUPPORT

1шт.

P1350519

FILTER COVER

COVER

1шт.

P945290

WASHER, SEALING

SEAL WASHER, 228 x 256 x 5.5

1шт.

P34113

NUT

6шт.

P35002

WASHER

6шт.

P35002 Washer. See EEX9001E; NITS 3252, 3262, 3263, 3275, 3292, 3293; SATS 47, 80

1шт.

P30892

SCREW

/BOLT

2шт.

P45251

COMPOSITE SEAL

METAL PLASTICS

2шт.

100016

NUT,M10 x 1.5, Cl 8

8шт.

P35003

WASHER

8шт.

P35003 Washer. See EEX8010E, EEX8011E; NITS 3238, 3275, 3292, 3303, 3308; SAT 84

1шт.

P1337465

PLUG

39 x 1.5

1шт.

P545233

SEAL

39.2 x 44 x 3

1шт.

P3127174

COVER PLATE

1шт.

P5346020

SEAL, RUBBER

RUBBER SEAL

1шт.

P1337410

PLUG

1шт.

P850566

CARTRIDGE

1шт.

P945279

SEAL

1шт.

P134596

SAFETY NUT

2шт.

See EEX 3001E, EEX9001E; NITS 994, 3216, 3252, 3262, 3275, 3299; SAT 94

1шт.

P423428

BODY

1шт.

P22485

SIGHTGLASS

WARNING LIGHT

1шт.

P22485 Sight Glass. Described as a Warning Light.

1шт.

P130487

O-RING

5 x 131

1шт.

P28425

COMPOSITE SEAL

METAL PLASTICS

8шт.

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

BOLT, Hex, M8 x 20, 8.8

8шт.

P33814 Screw/Bolt. See NIT 3292; SAT 80

1шт.

P30458

O-RING,0.103" Thk x 1.174" ID, -123, Cl 6, 90 Duro

SEAL, 2.62 x 29.82-80

2шт.

P30458 O-ring. See NIT 994; SAT 81

1шт.

P1737444

PLUG

2шт.

P840271

OIL RESERVOIR

no longer sold

1шт.
