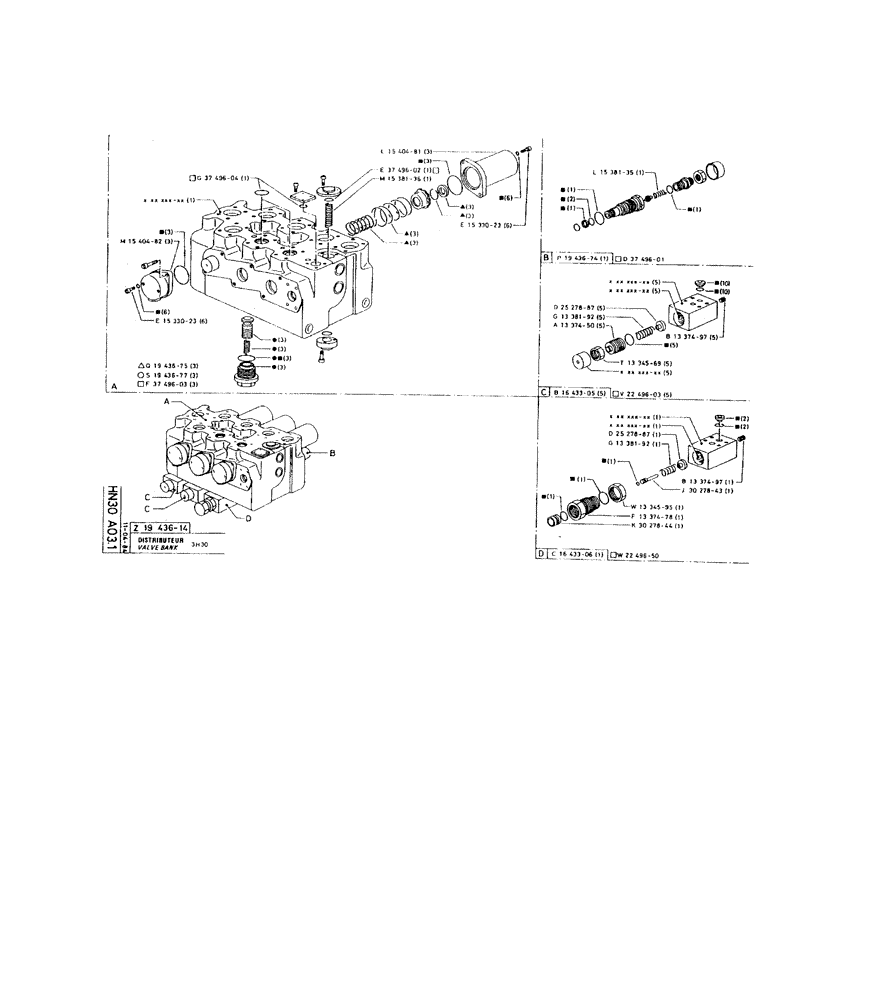

Запчасти Case 220 (212) - VALVE BANK (07) - HYDRAULIC SYSTEM

P3749604

KIT

SET, kit number

1шт.

P1540482

CAP

COVER

3шт.

P1533023

SCREW

/BOLT

6шт.

P1943675

SET OF PARTS

kit number

3шт.

P1943677

SET OF PARTS

kit number

3шт.

P3749603

KIT

SET, kit number

3шт.

P1540481

CAP

COVER

3шт.

P3749602

KIT

SET, kit number

1шт.

P1538136

SPRING

17.3/3.2 x 85/13.5

1шт.

P1533023

SCREW

/BOLT

6шт.

P1943614

BLOCK

1шт.

P1538135

SPRING

8.6/3 x 31.5/7

1шт.

P1538135-spring. See SAT 82

1шт.

P1943674

VALVE,M28 x 1.5

LIMITER

1шт.

P1943674-Cartridge/Limiter. See SAT 82

1шт.

P3749601

KIT

SET, kit number

1шт.

P3749601 Seal Kit. See SAT 82

1шт.

P2527887

DEFLECTOR

5шт.

P1338192

COMPRESSION SPRING

COMPRESSION SPR

5шт.

P1337450

PLUG

5шт.

P1337450 Plug. See SAT 67

1шт.

P1337497

PLUG

M12 x 1.5

5шт.

P1334569

NUT

M35 x 1.5

5шт.

P1643305

SHIN

BRACKET

5шт.

P1643305-Valve Assembly. See SAT 67

1шт.

P2249603

SEAL PACKAGE

SET OF SEALS, kit number

5шт.

P2527887

DEFLECTOR

1шт.

P1338192

COMPRESSION SPRING

COMPRESSION SPR

1шт.

P1337497

PLUG

M12 x 1.5

1шт.

P3027843

PISTON

1шт.

P1334595

NUT

M24 x 1.5

1шт.

P1337478

PLUG

1шт.

P3027844

TAPPET

PUSHER

1шт.

P1643306

SHIN

BRACKET

1шт.

P2249650

SEAL PACKAGE

SET OF SEALS, kit number

1шт.
