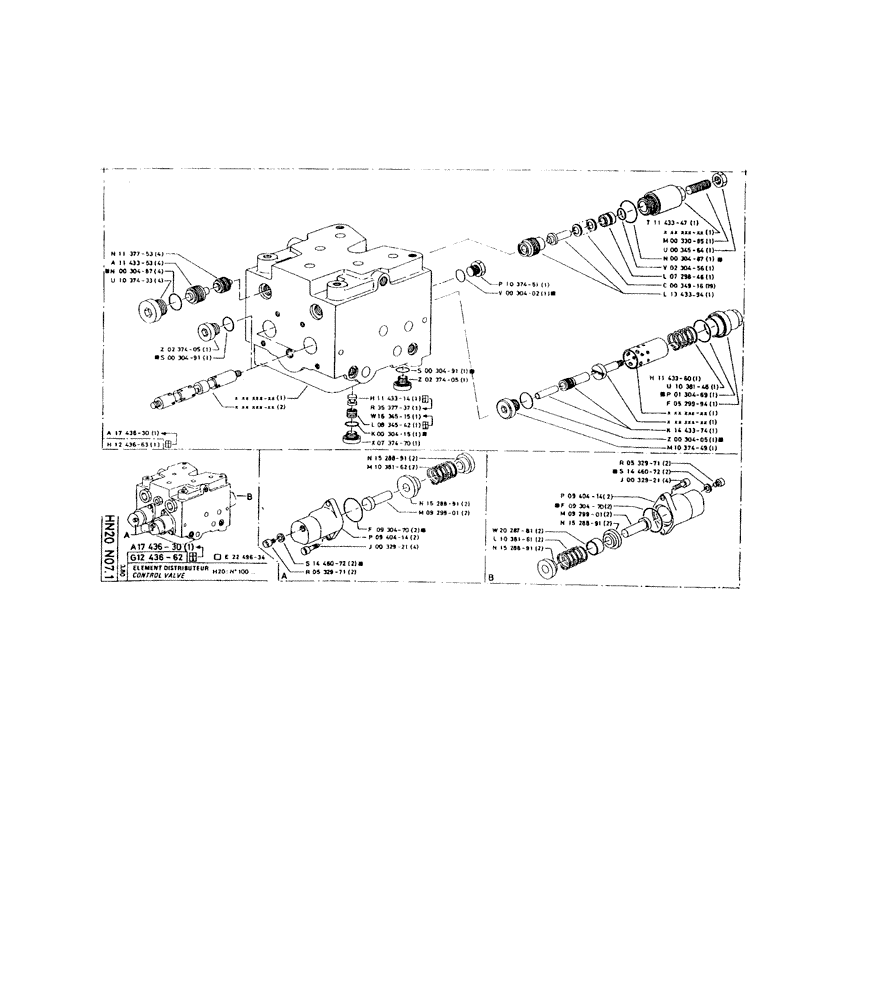

Запчасти Case 220 (209) - CONTROL VALVE (07) - HYDRAULIC SYSTEM

P1137753

VALVE POPPET

VALVE

4шт.

P1143353

VALVE

4шт.

P30487

O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro

SEAL, 2.62 x 37.77-80, forms part of a kit

4шт.

P30487 O-ring/Seal. See SAT 71

1шт.

P1037433

PLUG

M36 x 1.5

4шт.

P237405

PLUG

3/4 x 12

1шт.

P30491

O-RING

2.5 x 28, forms part of a kit

1шт.

P1743630

SHIN

BRACKET

1шт.

P1243663

SHIN

BRACKET, no longer sold

1шт.

P30491

O-RING

2.5 x 28, forms part of a kit

1шт.

P30491 O-ring. See NEXSB 01890

1шт.

P237405

PLUG

3/4 x 12

1шт.

P1143314

VALVE POPPET

VALVE, no longer sold

1шт.

P3537737

CARTRIDGE

1шт.

P1634515

NUT

M18 x 1.5

1шт.

P834542

NUT

M18 x 1.5, no longer sold

1шт.

P30415

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

SEAL, 2.62 x 20.29-80, forms part of kit

1шт.

P30415 Seal. See EEX8007E; NIT 994

1шт.

P737470

PLUG

M18 x 1.5

1шт.

P737470 Plug. See NIT 994.

1шт.

P1037451

PLUG

1шт.

P30402

O-RING

2.5 x 22.5, forms part of a kit

1шт.

P30402 O-ring/Seal. See NITS 3208, 3260

1шт.

P1143347

VALVE

1шт.

P33085

SCREW

/BOLT, M16 x 40

1шт.

P33085 Screw/Bolt. See SAT 71

1шт.

P34564

NUT

1шт.

P34564 Nut. See SAT 71

1шт.

P30487

O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro

SEAL, 2.62 x 37.77-80, forms part of a kit

1шт.

P30487 O-ring/Seal. See SAT 71

1шт.

P230456

O-RING

2.5 x 20

1шт.

P729846

PUSHER

1шт.

P34916

RUBBER WASHER

SPRING WASHER, 25 x 12.2 x 1.5

1шт.

P1343394

ASSEMBLY

1шт.

P1143360

LIMITER

1шт.

P1038146

SPRING COMPRESSOR

COMPRESSION SPR

1шт.

P130469

O-RING,40.95MM ID x 2.62MM Width

SEAL, 2.62 x 40.94-80, forms part of a kit

1шт.

P529994

COVER

1шт.

P1443374

ASSY

1шт.

P30405

O-RING

SEAL, 2.62 x 32.99-80, forms part of a kit

1шт.

P30405 O-ring. See SAT 81

1шт.

P1037449

PLUG

M30 x 1.5

1шт.

P1743630

SHIN

BRACKET

1шт.

P1243662

SHIN

BRACKET, no longer sold

1шт.

P2249634

SEAL PACKAGE

SET OF SEALS, kit number

1шт.

P1528891

CUPEL

2шт.

P1038162

COMPRESSION SPR

2шт.

P929901

END FITTING

2шт.

P930470

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

SEAL, 3.53 x 44.04-80, forms part of a kit

2шт.

P940414

CAP

COVER

2шт.

P32921

SCREW,Hex Soc Hd, M8 x 20, 10.9

/BOLT, M8 x 20

4шт.

P1446072

WASHER

GASKET, 11 x 6.6 x 1.6, forms part of a kit

2шт.

P532971

SCREW

/BOLT, M6 x 5

2шт.

P532971

SCREW

/BOLT, M6 x 5

2шт.

P1446072

WASHER

GASKET, 11 x 6.6 x 1.6, forms part of a kit

2шт.

P32921

SCREW,Hex Soc Hd, M8 x 20, 10.9

/BOLT, M8 x 20

4шт.

P940414

CAP

COVER

2шт.

P930470

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

SEAL, 3.53 x 44.04-80, forms part of a kit

2шт.

P929901

END FITTING

2шт.

P1528891

CUPEL

2шт.

P2028781

SPACER

2шт.

P1038161

COMPRESSION SPR

2шт.

P1528891

CUPEL

2шт.
