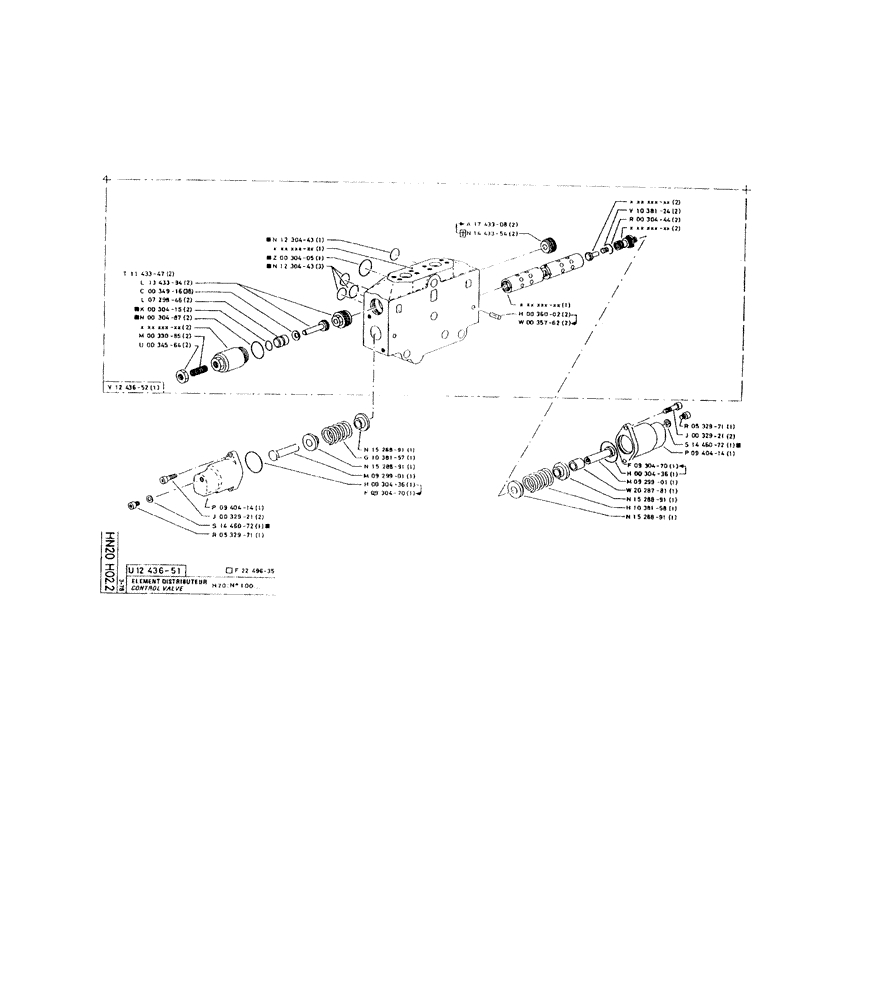

Запчасти Case 220 (206) - CONTROL VALVE (07) - HYDRAULIC SYSTEM

P1143347

VALVE

2шт.

P1343394

ASSEMBLY

2шт.

P34916

RUBBER WASHER

SPRING WASHER, 25 x 12.2 x 1.5

1шт.

P729846

PUSHER

2шт.

P30415

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

SEAL, 2.62 x 20.29-80, forms part of a kit

2шт.

P30415 Seal. See EEX8007E; NIT 994

1шт.

P30487

O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro

SEAL, 2.62 x 37.77-80, forms part of a kit

2шт.

P30487 O-ring/Seal. See SAT 71

1шт.

P33085

SCREW

/BOLT, M16 x 40

2шт.

P33085 Screw/Bolt. See SAT 71

1шт.

P34564

NUT

2шт.

P34564 Nut. See SAT 71

1шт.

P1243652

SHIN

BRACKET

1шт.

P1230443

O-RING

SEAL, 2.62 x 23.47-80, forms part of a kit

1шт.

P1230443 O-ring/Seal. See NEXSB01890; NIT 994; SAT 81

1шт.

P30405

O-RING

SEAL, 2.62 x 32.99-80, forms part of a kit

1шт.

P30405 O-ring. See SAT 81

1шт.

P1230443

O-RING

SEAL, 2.62 x 23.47-80, forms part of a kit

3шт.

P1743308

VALVE POPPET

VALVE

2шт.

P1443354

VALVE POPPET

VALVE, no longer sold

2шт.

P36002

SPLIT PIN/SAFET, 10 x 20

2шт.

P35762

SPLIT PIN/SAFETY PIN

SPLIT PIN/SAFET, 10 x 18

2шт.

P1038124

SPRING COMPRESSOR

COMPRESSION SPR

2шт.

P30444

O-RING,2.5mm Thk x 15mm ID, 80 Duro

2.5 x 15

2шт.

P940414

CAP

COVER

1шт.

P32921

SCREW,Hex Soc Hd, M8 x 20, 10.9

/BOLT, M8 x 20

2шт.

P32921 Screw/Bolt. See SAT 71

1шт.

P1446072

WASHER

GASKET, 11 x 6.6 x 1.6, forms part of a kit

1шт.

P532971

SCREW

/BOLT, M6 x 5

1шт.

P2249635

SEAL PACKAGE

SET OF SEALS, kit number

1шт.

P1528891

CUPEL

1шт.

P1038157

SPRING COMPRESSOR

COMPRESSION SPR

1шт.

P1528891

CUPEL

1шт.

P929901

END FITTING

1шт.

P30436

O-RING

SEAL, 3.53 x 45.36-80

1шт.

P930470

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

SEAL, 3.53 x 44.04-80

1шт.

P532971

SCREW

/BOLT, M6 x 5

1шт.

P32921

SCREW,Hex Soc Hd, M8 x 20, 10.9

/BOLT, M8 x 20

2шт.

P1446072

WASHER

GASKET, 11 x 6.6 x 1.6, forms part of a kit

1шт.

P940414

CAP

COVER

1шт.

P930470

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

SEAL, 3.53 x 44.04-80

1шт.

P30436

O-RING

SEAL, 3.53 x 45.36-80

1шт.

P929901

END FITTING

1шт.

P2028781

SPACER

1шт.

P1528891

CUPEL

1шт.

P1038158

SPRING COMPRESSOR

COMPRESSION SPR

1шт.

P1528891

CUPEL

1шт.

P1243651

SHIN

BRACKET

1шт.

P2249635

SEAL PACKAGE

SET OF SEALS, kit number

1шт.
