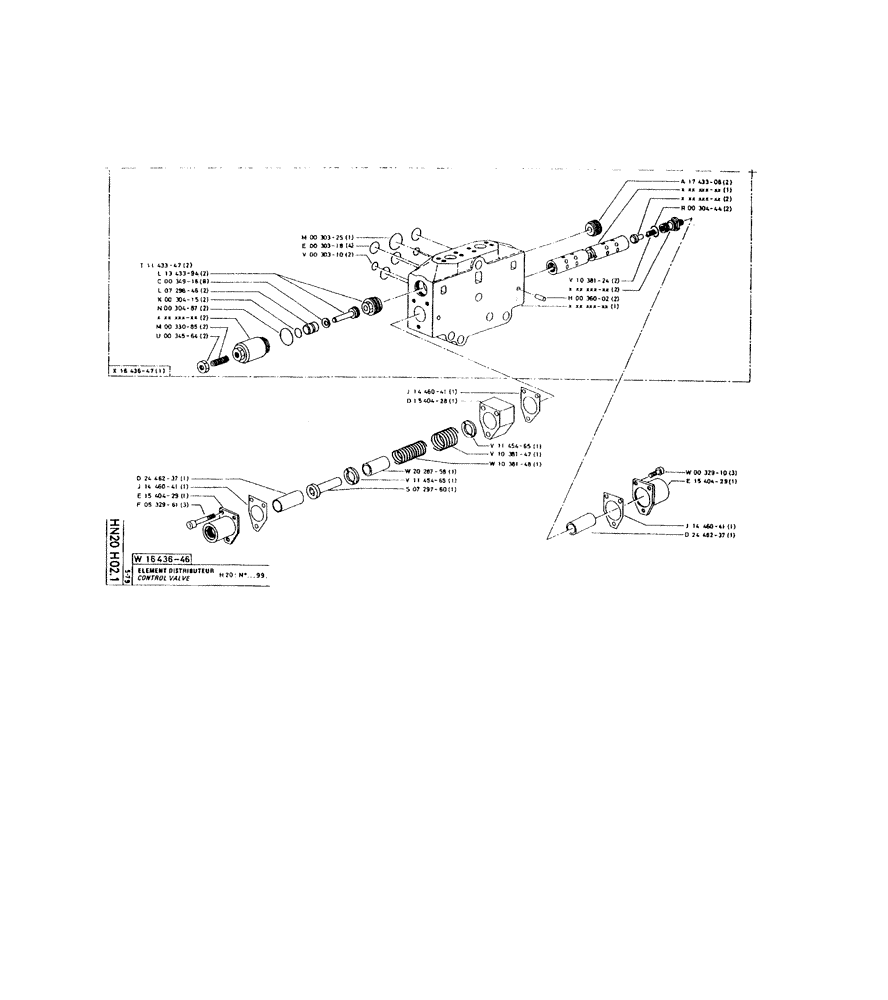

Запчасти Case 220 (205) - CONTROL VALVE (07) - HYDRAULIC SYSTEM

P1143347

VALVE

2шт.

P1343394

ASSEMBLY

2шт.

P34916

RUBBER WASHER

SPRING WASHER, 25 x 12.2 x 1.5

8шт.

P729846

PUSHER

2шт.

P30415

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

SEAL, 2.62 x 20.29-80

2шт.

P30415 Seal. See EEX8007E; NIT 994

1шт.

P30487

O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro

SEAL, 2.62 x 37.77-80

2шт.

P30487 O-ring/Seal. See SAT 71

1шт.

P33085

SCREW

/BOLT, M16 x 40

2шт.

P33085 Screw/Bolt. See SAT 71

1шт.

P34564

NUT

2шт.

P34564 Nut. See SAT 71

1шт.

P1643647

SHIN

BRACKET

1шт.

P30325

SEAL,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

3.6 x 34.1

1шт.

P30318

O-RING

SEAL, 3.6 x 23

4шт.

P30310

SEAL

2.7 x 12.1

2шт.

P1038124

SPRING COMPRESSOR

COMPRESSION SPR

2шт.

P36002

SPLIT PIN/SAFET, 10 x 20

2шт.

P1743308

VALVE POPPET

VALVE

2шт.

P30444

O-RING,2.5mm Thk x 15mm ID, 80 Duro

2.5 x 15

2шт.

P2446237

PISTON

1шт.

P1446041

SEAL

1шт.

P1540429

CAP

COVER

1шт.

P532961

SCREW

/BOLT, M6 x 67

3шт.

P1446041

SEAL

1шт.

P1540428

CAP

COVER

1шт.

P1145465

WASHER

1шт.

P1038147

COMPRESSION SPRING

COMPRESSION SPR

1шт.

P2028758

SPACER

1шт.

P1145465

WASHER

1шт.

P729760

END FITTING

1шт.

P32910

SCREW

/BOLT, M6 x 16

3шт.

P32910-Screw/Bolt. See SAT 80

1шт.

P1540429

CAP

COVER

1шт.

P1446041

SEAL

1шт.

P2446237

PISTON

1шт.

P1643646

SHIN

BRACKET

1шт.
