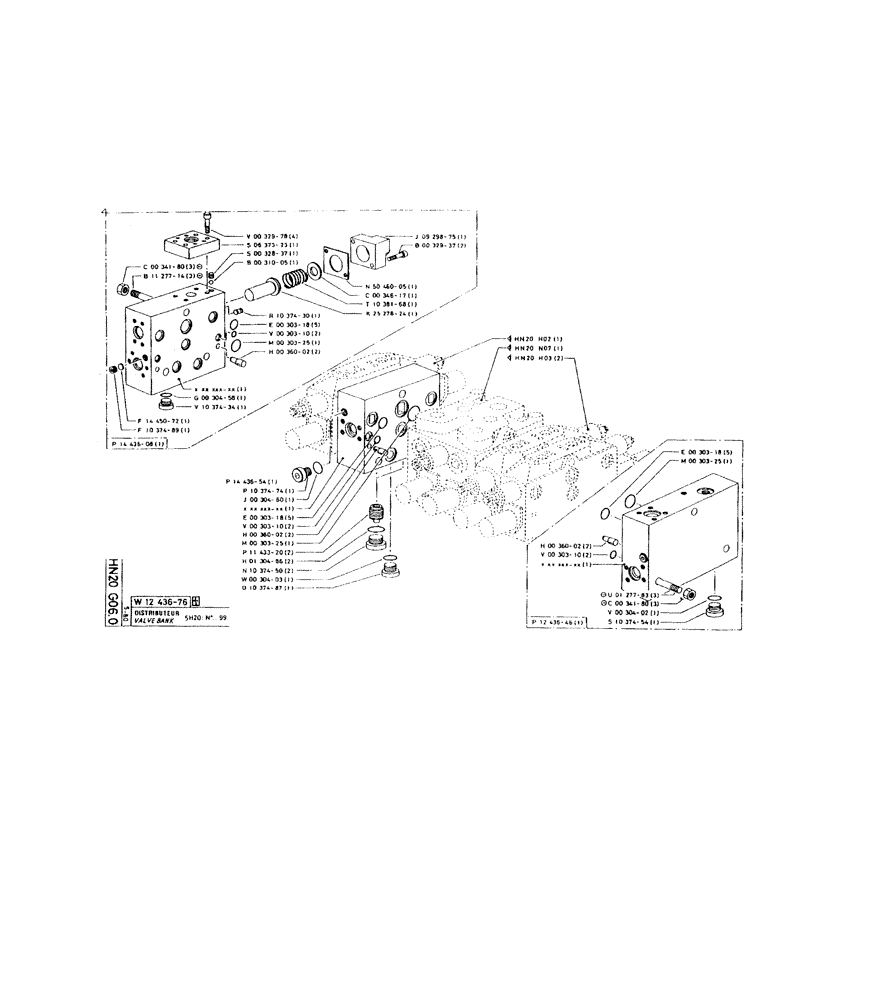

Запчасти Case 220 (202) - VALVE BANK (07) - HYDRAULIC SYSTEM

825-1418

NUT,M18, Cl 8

part not sold under assembly reference number

3шт.

P1127714

STEM

ROD, M18 x 275, part not sold under assembly reference number

3шт.

P1037430

ASSEMBLY

ASSY

1шт.

P30318

O-RING

SEAL, 3.6 x 23

5шт.

P30310

SEAL

2.7 x 12.1

2шт.

P30325

SEAL,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

3.6 x 34.1

1шт.

P36002

SPLIT PIN/SAFET, 10 x 20

2шт.

P30458

O-RING,0.103" Thk x 1.174" ID, -123, Cl 6, 90 Duro

SEAL, 2.62 x 29.82-80

1шт.

P30458 O-ring. See NIT 994; SAT 81

1шт.

P1037434

PLUG

M27 x 1.5

1шт.

P1445072

HOLE PLUG BUTTON

BUTTON, 12 x 2

1шт.

P1037489

PLUG

M14 x 1.5

1шт.

P1443608

SHIN

BRACKET

1шт.

P32978

SCREW

/BOLT, M14 x 30

4шт.

P637323

RESTRICTOR

DN42 x 34

1шт.

P32837

SCREW

/BOLT, M12 x 12

1шт.

P31005

BALL

1шт.

P1037430

ASSEMBLY

ASSY

1шт.

P30318

O-RING

SEAL, 3.6 x 23

5шт.

P30310

SEAL

2.7 x 12.1

2шт.

P30325

SEAL,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

3.6 x 34.1

1шт.

P36002

SPLIT PIN/SAFET, 10 x 20

2шт.

P929875

CAP

COVER

1шт.

P32937

SCREW

/BOLT, M10 x 50

2шт.

P32937 Screw/Bolt. See EEX8011E; NITS 3077, 3228, 3263, 3269, 3293

1шт.

P5046005

SEAL

1шт.

P34617

WASHER

1шт.

P1038168

COMPRESSION SPRING

COMPRESSION SPR

1шт.

P2527824

VALVE POPPET

VALVE

1шт.

P1443654

LARGE PLATE

PLATE

1шт.

P1037474

PLUG

M22 x 1.5

1шт.

P30460

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

SEAL, 2.62 x 25.07-80

1шт.

P30460 O-ring. See NIT 3211; SAT 81

1шт.

P30318

O-RING

SEAL, 3.6 x 23

5шт.

P30310

SEAL

2.7 x 12.1

2шт.

P36002

SPLIT PIN/SAFET, 10 x 20

2шт.

P30325

SEAL,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

3.6 x 34.1

1шт.

P1143320

VALVE POPPET

VALVE

2шт.

P130486

O-RING

SEAL, 2.62 x 34.59-80

2шт.

P1037450

PLUG

M33 x 1.5

2шт.

P30403

O-RING,0.103" Thk x 1.049" ID, -121, Cl 6, 90 Duro

SEAL, 2.62 x 26.64-80

1шт.

P1037487

PLUG

M24 x 1.5

1шт.

P30318

O-RING

SEAL, 3.6 x 23

5шт.

P30325

SEAL,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

3.6 x 34.1

1шт.

P36002

SPLIT PIN/SAFET, 10 x 20

2шт.

P30310

SEAL

2.7 x 12.1

2шт.

P127783

ASSEMBLING ROD, M18 x 270, part not sold under assembly reference number

3шт.

825-1418

NUT,M18, Cl 8

pat not sold under assembly reference number

3шт.

P30402

O-RING

2.5 x 22.5

1шт.

P30402 O-ring/Seal. See NITS 3208, 3260

1шт.

P1037454

PLUG

M20 x 1.5

1шт.

P1243646

SHIN

BRACKET

1шт.

P1243676

BLOCK, no longer sold

1шт.
