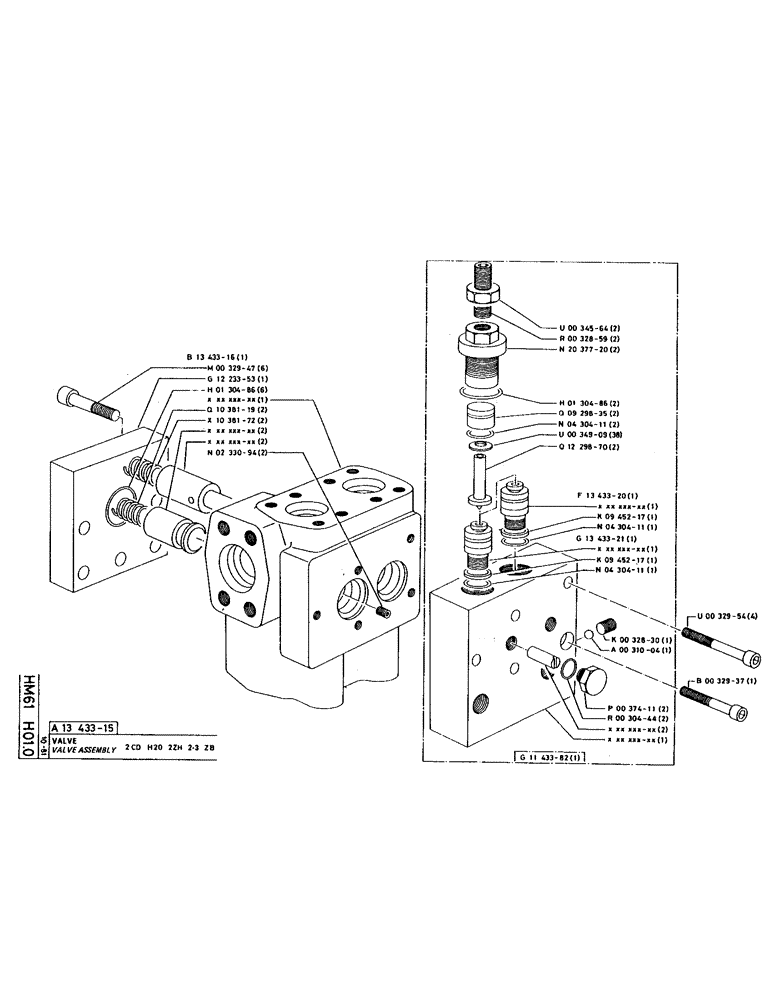

Запчасти Case 220 (195) - VALVE ASSEMBLY (07) - HYDRAULIC SYSTEM

P1343316

SHIN

BRACKET

1шт.

P32947

SCREW

/BOLT, M12 x 45

6шт.

P1223353

PLATE

1шт.

P130486

O-RING

SEAL, 2.62 x 34.59-80

6шт.

P130486 O-ring/Seal. See NEXSB01890

1шт.

P1038119

COMPRESSION SPRING

COMPRESSION SPR

2шт.

P1038172

COMPRESSION SPRING

COMPRESSION SPR

2шт.

P233094

SCREW

/BOLT, M6 x 6

2шт.

P34564

NUT

2шт.

P34564 Nut. See SAT 71

1шт.

P32859

SCREW

/BOLT, M16 x 50

2шт.

P2037720

CAP

COVER

2шт.

P130486

O-RING

SEAL, 2.62 x 34.59-80

2шт.

P929835

TAPPET

PUSHER

2шт.

P430411

O-RING

SEAL, 2.62 x 18.72-80

2шт.

See NEXMP00587; NIT 994

1шт.

P34909

RUBBER WASHER

SPRING WASHER, 22.5 x 11.2

38шт.

P1229870

GUIDE

2шт.

P1343320

VALVE POPPET

VALVE

1шт.

P945217

BACK-UP RING

JOINT

1шт.

P430411

O-RING

SEAL, 2.62 x 18.72-80

1шт.

P1343321

VALVE POPPET

VALVE

1шт.

P945217

BACK-UP RING

JOINT

1шт.

P430411

O-RING

SEAL, 2.62 x 18.72-80

1шт.

P32954

SCREW

/BOLT, M10 x 65

4шт.

P32830

SCREW

/BOLT, M10 x 10

1шт.

P31004

BALL

1шт.

P32937

SCREW

/BOLT, M10 x 50

1шт.

P32937 Screw/Bolt. See EEX8011E; NITS 3077, 3228, 3263, 3269, 3293

1шт.

P37411

PLUG

2шт.

P30444

O-RING,2.5mm Thk x 15mm ID, 80 Duro

2.5 x 15

2шт.

P1143382

SHIN

BRACKET

1шт.

P1343315

BLOCK ASSY.

BLOCK

1шт.
