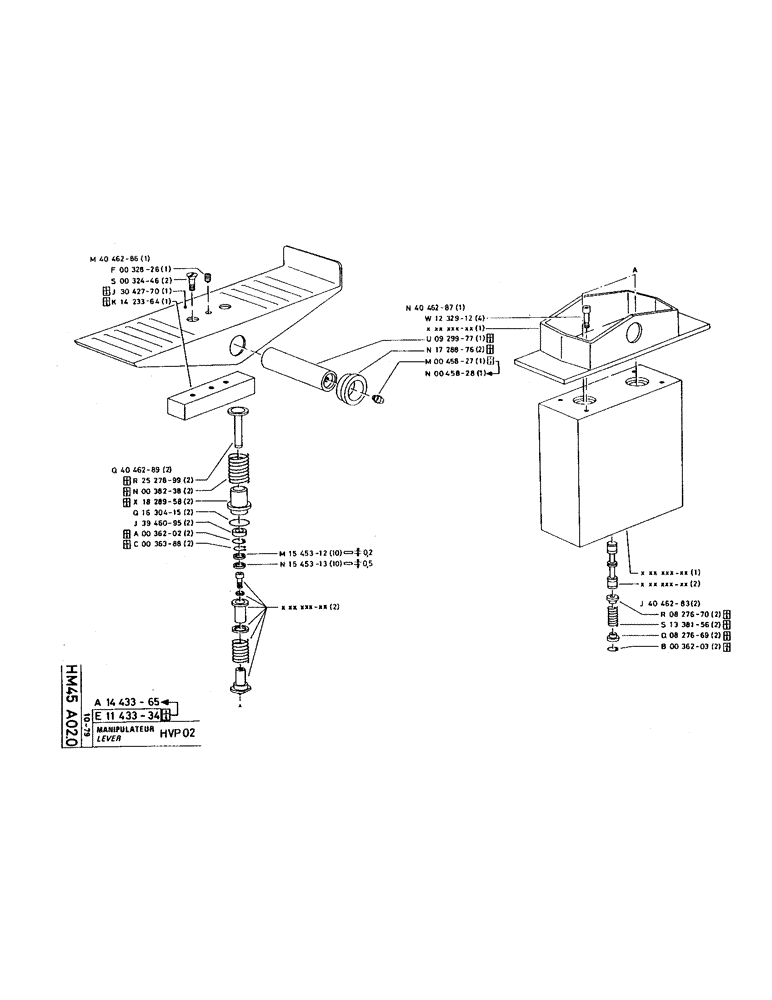

Запчасти Case 220 (192) - LEVER (07) - HYDRAULIC SYSTEM

P4046286

PEDAL

1шт.

P32826

SCREW/BOLT, M6 x 14

1шт.

P32446

SCREW

/BOLT, M6 x 15

2шт.

P3042770

PEDAL

no longer sold

1шт.

P1423364

LARGE PLATE

PLATE, no longer sold

1шт.

P4046289

CARTRIDGE

2шт.

P4046289 Cartridge. See NIT 998.

1шт.

P2527899

no longer sold

2шт.

P38238

SPRING, no longer sold

2шт.

P1828958

no longer sold

2шт.

P1630415

O-RING

2.4 x 15.3-70

2шт.

P3946095

SEAL

6 x 11 x 3.5-70

2шт.

P36202

LOCKING RING, no longer sold

2шт.

P36388

LOCKING RING, no longer sold

2шт.

P1545312

BLOCK

SHIM, 7 x 10 x 0.2

10шт.

P1545313

BLOCK

SHIM, 7 x 10 x 0.5

10шт.

P1443365

BLOCK

1шт.

P1143334

BLOCK ASSY.

BLOCK, no longer sold

1шт.

P4046287

SUPPORT

1шт.

P1232912

SCREW

/BOLT, M5 x 14

4шт.

P929977

PIN, no longer sold

1шт.

P1728876

BUSHING, LARGE

no longer sold

2шт.

P45827

GREASE NIPPLE, M6 x 100, no longer sold

1шт.

P45828

NIPPLE, LUBE

GREASE NIPPLE, M6 x 100

1шт.

P4046283

CARTRIDGE

2шт.

P827670

GUIDE

no longer sold

2шт.

P1338156

COMPRESSION SPR, no longer sold

2шт.

P827669

GUIDE, no longer sold

2шт.

P36203

RING, SNAP

LOCKING RING, no longer sold

2шт.
