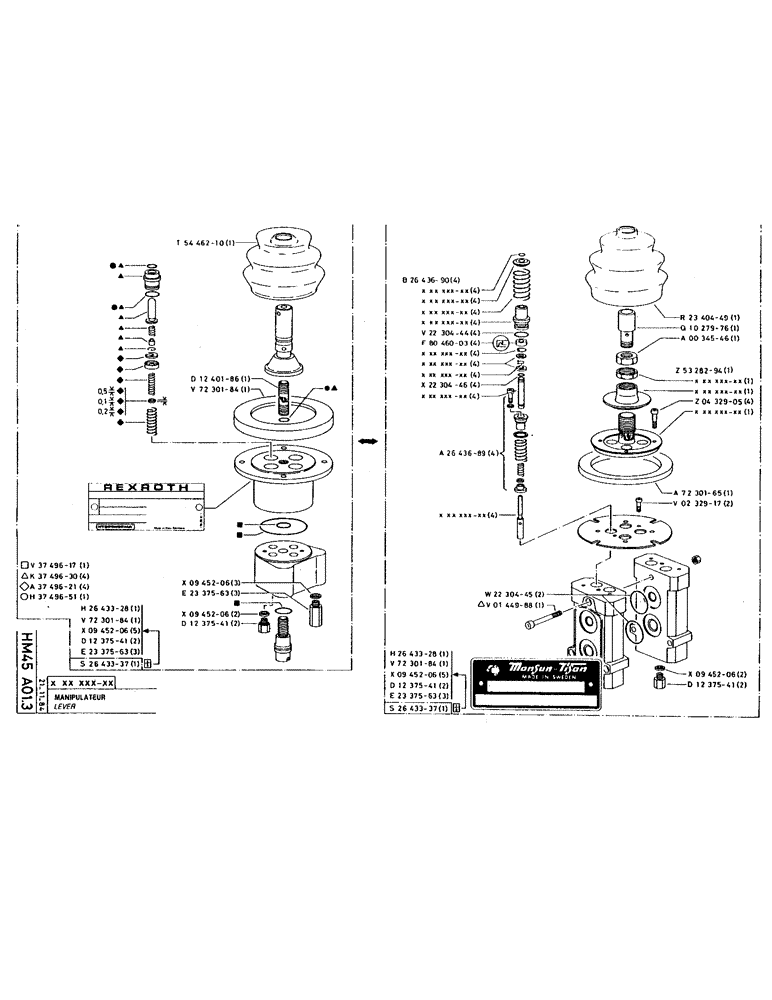

Запчасти Case 220 (191) - LEVER (07) - HYDRAULIC SYSTEM

P3749617

KIT

SET, kit number

1шт.

P3749630

KIT

SET, kit number

1шт.

P3749621

KIT

SET, kit number

4шт.

P3749651

SEAL PACKAGE

SET OF SEALS, kit number

1шт.

P2643328

BLOCK ASSY.

BLOCK

1шт.

P7230184

PROTECTOR

1шт.

P945206

WASHER, SEALING

SEAL WASHER, 14 x 18.5 x 1.5

5шт.

P1237541

UNION

2шт.

P2337563

UNION

3шт.

P2643337

BLOCK ASSY.

BLOCK, no longer sold

1шт.

P5446210

BELLOWS

1шт.

P1240186

COUPLING

U JOINT

1шт.

P7230184

PROTECTOR

1шт.

P945206

WASHER, SEALING

SEAL WASHER, 14 x 18.5 x 1.5

3шт.

P2337563

UNION

3шт.

P945206

WASHER, SEALING

SEAL WASHER, 14 x 18.5 x 1.5

2шт.

P1237541

UNION

2шт.

P2643690

CARTRIDGE

4шт.

P2230444

O-RING

SEAL

4шт.

P8046003

OIL SEAL

BUSHING

4шт.

P2230446

O-RING

SEAL

4шт.

P2643689

CARTRIDGE

4шт.

P2230445

O-RING

SEAL

2шт.

P144988

TRUSS ROD

TIE BAR, kit number

1шт.

P2643328

BLOCK ASSY.

BLOCK

1шт.

P2643328 Block. See TS385-93

1шт.

P7230184

PROTECTOR

1шт.

P945206

WASHER, SEALING

SEAL WASHER, 14 x 18.5 x 1.5

5шт.

P1237541

UNION

2шт.

P2337563

UNION

3шт.

P2643337

BLOCK ASSY.

BLOCK, no longer sold

1шт.

P2340449

BELLOWS

1шт.

P1027976

PIN

1шт.

P34546

NUT

1шт.

P5328294

LARGE PLATE

PLATE

1шт.

P432905

SCREW

/BOLT, M5 x 15

4шт.

P7230165

PROTECTOR

1шт.

P232917

SCREW

/BOLT, M5 x 10

2шт.

P232917 Screw/Bolt. See NIT 1116

1шт.

P945206

WASHER, SEALING

SEAL WASHER, 14 x 18.5 x 1.5

2шт.

P1237541

UNION

2шт.
