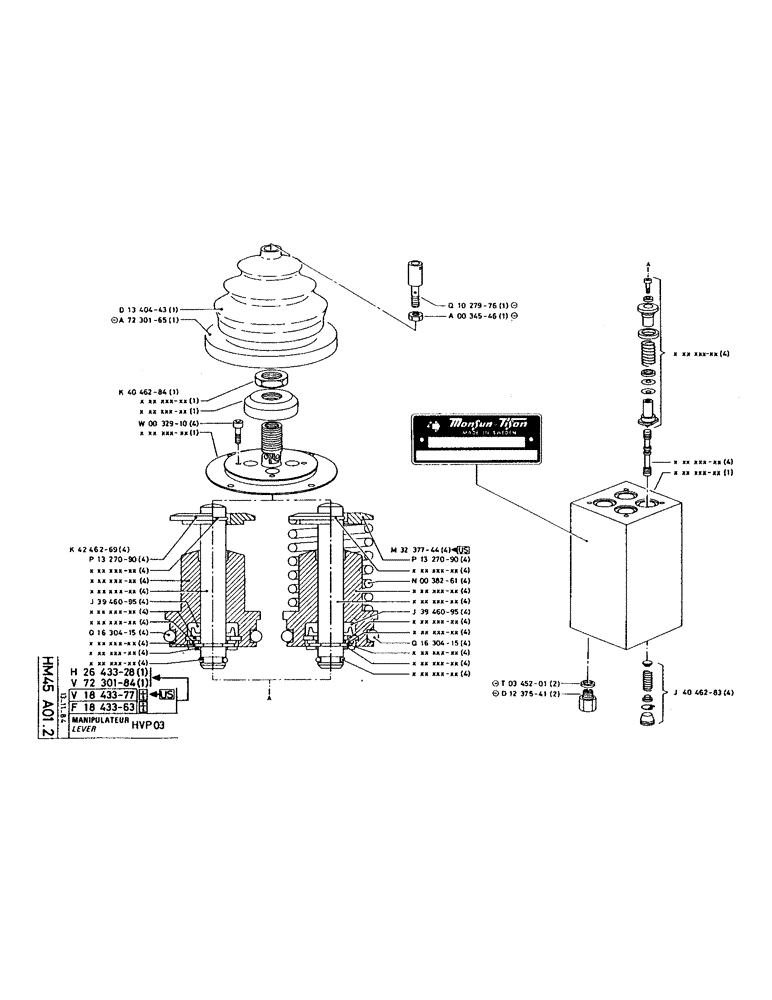

Запчасти Case 220 (190) - LEVER (07) - HYDRAULIC SYSTEM

P1340443

BELLOWS

1шт.

P7230165

PROTECTOR

part not sold under assembly reference number

1шт.

P4046284

LARGE PLATE

PLATE

1шт.

P32910

SCREW

/BOLT, M6 x 16

4шт.

P32910-Screw/Bolt. See SAT 80

1шт.

P4246269

CARTRIDGE

4шт.

P1327090

CUPEL

4шт.

P3946095

SEAL

6 x 11 x 3.5-70

4шт.

P1630415

O-RING

2.4 x 15.3-70

4шт.

P2643328

BLOCK ASSY.

BLOCK

1шт.

P7230184

PROTECTOR

1шт.

P1843377

BLOCK ASSY.

BLOCK, no longer sold

1шт.

P1843363

BLOCK ASSY.

BLOCK, no longer sold

1шт.

P1027976

PIN

part not sold under assembly reference number

1шт.

P34546

NUT

part not sold under assembly reference number

1шт.

P3237744

CARTRIDGE

4шт.

P1327090

CUPEL

4шт.

P38261

SPRING

4шт.

P3946095

SEAL

6 x 11 x 3.5-70

4шт.

P1630415

O-RING

2.4 x 15.3-70

4шт.

P345201

SEAL

13.2 x 18 x 1.2, part not sold under assembly reference number

2шт.

P1237541

UNION

part not sold under assembly reference number

2шт.

P4046283

CARTRIDGE

4шт.
