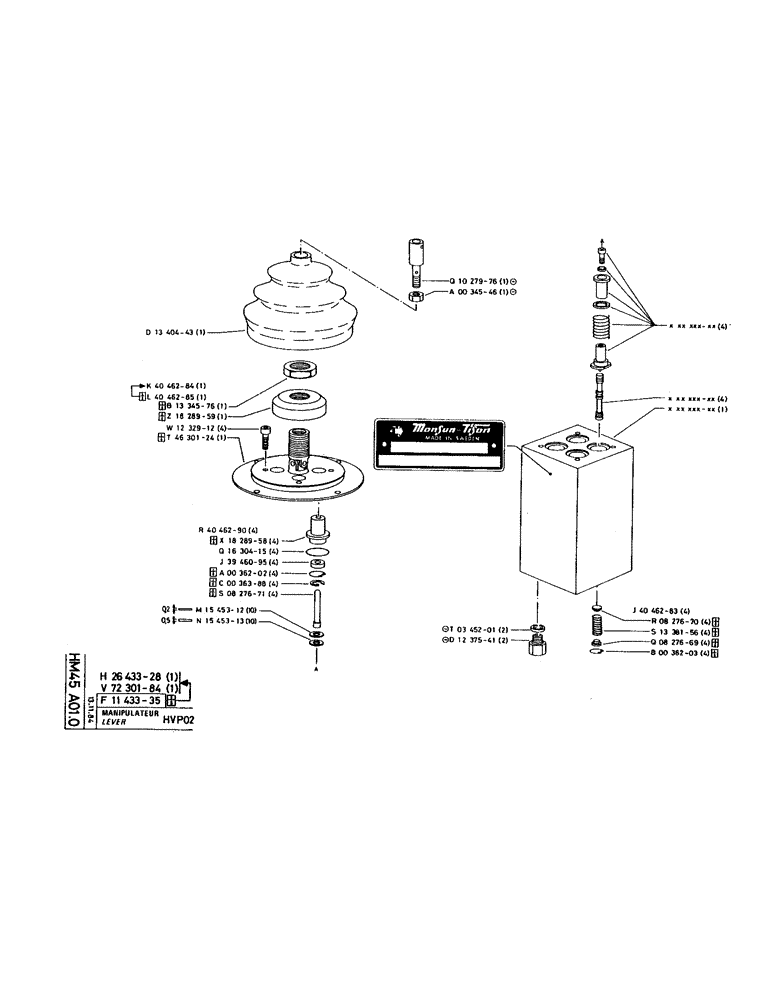

Запчасти Case 220 (188) - LEVER (07) - HYDRAULIC SYSTEM

P1340443

BELLOWS

1шт.

P4046284

LARGE PLATE

PLATE

1шт.

P4046285

PLATE, no longer sold

1шт.

P1232912

SCREW

/BOLT, M5 x 14

4шт.

P4046290

CARTRIDGE

4шт.

P4046290 Cartridge. See NIT 998

1шт.

P1828958

no longer sold

4шт.

P1630415

O-RING

2.4 x 15.3-70

4шт.

P3946095

SEAL

6 x 11 x 3.5-70

4шт.

P36202

LOCKING RING, no longer sold

4шт.

P36388

LOCKING RING, no longer sold

4шт.

P1545312

BLOCK

SHIM, 7 x 10 x 0.2

10шт.

P1545313

BLOCK

SHIM, 7 x 10 x 0.5

10шт.

P1027976

PIN

part not sold under assembly reference number

1шт.

P34546

NUT

part not sold under assembly reference number

1шт.

P345201

SEAL

13.2 x 18 x 1.2, part not sold under assembly reference number

2шт.

P1237541

UNION

part not sold under assembly reference number

2шт.

P4046283

CARTRIDGE

4шт.

P827670

GUIDE

no longer sold

4шт.

P1338156

COMPRESSION SPR, no longer sold

4шт.

P827669

GUIDE, no longer sold

4шт.

P36203

RING, SNAP

LOCKING RING, no longer sold

4шт.

P2643328

BLOCK ASSY.

BLOCK

1шт.

P2643328 Block. See TS385-93

1шт.

P7230184

PROTECTOR

1шт.

P1143335

BLOCK ASSY.

BLOCK, no longer sold

1шт.
