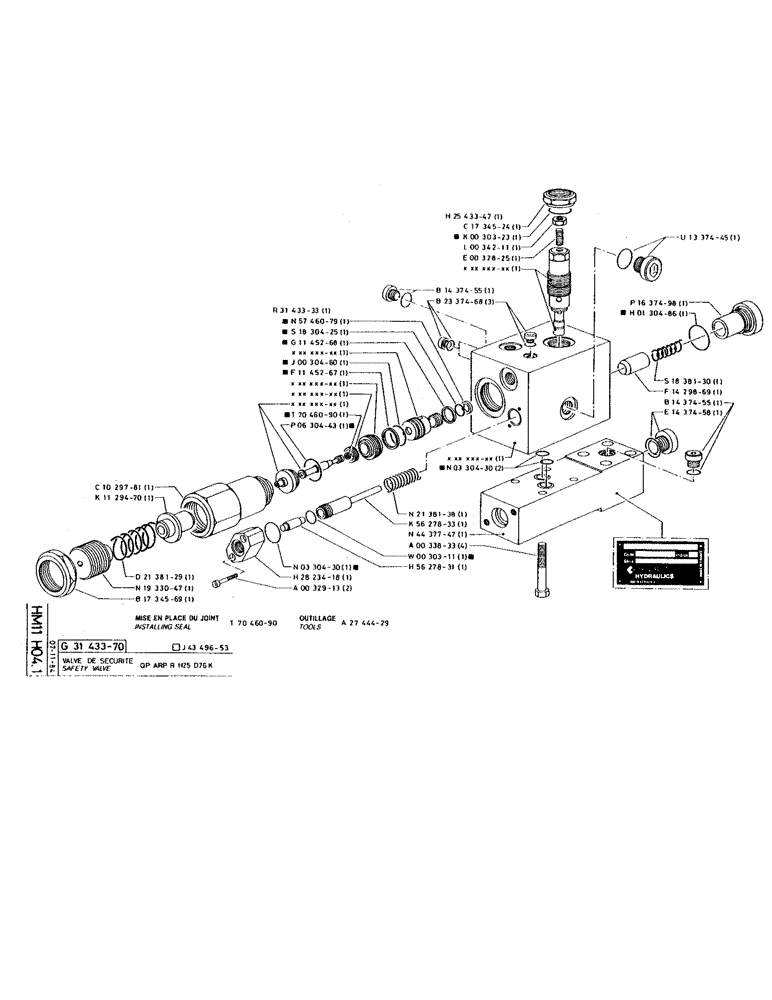

Запчасти Case 220 (180) - SAFETY VALVE (07) - HYDRAULIC SYSTEM

P1029781

CAP

COVER

1шт.

P1129470

GUIDE

1шт.

P3143333

CARTRIDGE

1шт.

P5746079

BACK-UP RING

JOINT, 18 x 1.1, forms part of a kit

1шт.

P1830425

O-RING

SEAL, 2.62 x 13.11-80, forms part of a kit

1шт.

P1830425-Seal. See NIT 3211

1шт.

P1145268

SEAL

WASHER, 19.9 x 24.5 x 1.5, forms part of a kit

1шт.

P1145268-Seal. See EEX8009E; NEXSL00189; NIT 3211

1шт.

P30460

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

SEAL, 2.62 x 25.07-80, forms part of a kit

1шт.

P30460 O-ring. See NIT 3211; SAT 81

1шт.

P1145267

BACK-UP RING

JOINT, 2.18 x 25.86-90, forms part of a kit

1шт.

P1145267-Joint Seal. See NIT 3211

1шт.

P7046090

SEAL

forms part of a kit

1шт.

P630443

O-RING

SEAL, 3.53 x 29.74-80, forms part of a kit

1шт.

P630443 Seal/O-ring. See SAT 81.

1шт.

P1437455

PLUG

1шт.

P2337468

PLUG

M10 x 1

3шт.

P2543347

CARTRIDGE

1шт.

P1734524

NUT

M33 x 1.5

1шт.

P30323

SEAL

3.6 x 30.8, forms part of a kit

1шт.

P34211

NUT

1шт.

P34211-Nut. See EEX4001E; SAT 71

1шт.

P32825

SCREW

/BOLT, M8 x 25

1шт.

P1337445

PLUG

1шт.

P1637498

PLUG

1шт.

P130486

O-RING

SEAL, 2.62 x 34.59-80, forms part of a kit

1шт.

P130486 O-ring/Seal. See NEXSB01890

1шт.

P1838130

COMPRESSION SPRING

COMPRESSION SPR

1шт.

P1429869

VALVE POPPET

VALVE

1шт.

P1437455

PLUG

1шт.

P1437458

PLUG

1шт.

P330430

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

SEAL, 2.62 x 21.89-80, forms part of a kit

2шт.

P2138138

COMPRESSION SPRING

COMPRESSION SPR

1шт.

P5627833

PISTON

1шт.

P4437747

BODY

1шт.

P33833

SCREW

/BOLT, M10 x 75

4шт.

P30311

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

SEAL, 2.62 x 13.94-80, forms part of a kit

1шт.

P5627831

PIN

1шт.

P330430

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

SEAL, 2.62 x 21.89-80, forms part of a kit

1шт.

P330430 Seal. See EEX8006E, EEX8006ES1, EEX8007E; SAT 81

1шт.

P2823418

SHIN

BRACKET

1шт.

P32913

SCREW

/BOLT, M6 x 30

2шт.

P32913-Screw/Bolt. See SAT 74

1шт.

P2138129

COMPRESSION SPRING

COMPRESSION SPR

1шт.

P1933047

SCREW

/BOLT, M48 x 2

1шт.

P1734569

NUT

M48 x 2

1шт.

P7046090

SEAL

1шт.

P2744429

MANDREL

1шт.

P3143370

SHIN

BRACKET

1шт.

P4349653

SEAL PACKAGE

SET OF SEALS, kit number

1шт.
